Polaris•Schematic assembly

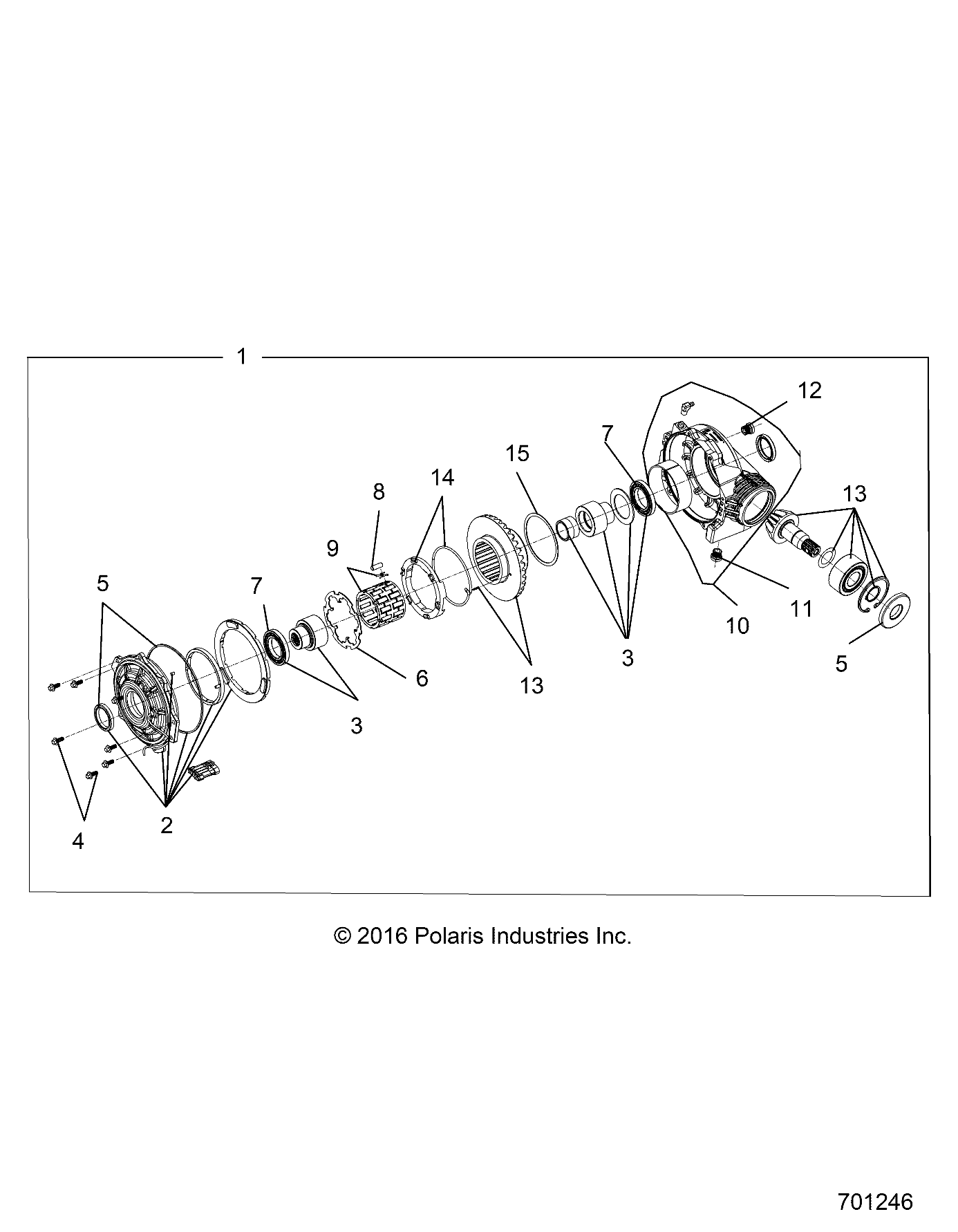

DRIVE TRAIN, FRONT GEARCASE - Z26ASF99A6 (701246)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243400
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1334625 | ASM-GEARCASE,FRONT [INCL. ALL] | 1 | $2,099.99 | In stock | |
| 2 | 3236645 | ASM., COVER OUTPUT | 1 | Price TBD | Out of stock | |
| 3 | 3236649 | ASM., OUTPUT HUB | 1 | $599.99 | In stock | |
| 4 | 3235483 | COVER-FASTNERS [INCL. 7 FASTENERS] | 1 | Price TBD | Out of stock | |
| 5 | 3236647 | COMPLETE SEAL REPAIR | 1 | $119.99 | In stock | |
| 6 | 3236048 | PLATE-4WD ARMATURE | 1 | Price TBD | Out of stock | |
| 7 | 3236214 | BEARING, PINION | 1 | $189.99 | In stock | |
| 8 | 3235486 | CAGE ROLLERS | 24 | Price TBD | Out of stock | |
| 9 | 3236237 | ASM., ROLLER CAGE [INCL. ROLL CAGE AND 24 H-CLIPS] | 1 | $629.99 | In stock | |
| 10 | 3236652 | ASM-GEARCASE | 1 | $789.99 | In stock | |
| 11 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock | |
| 12 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 13 | 3236749 | ASM-GEAR HOUSING & PINION | 1 | $899.99 | In stock | |
| 14 | 3235490 | TORSION SPRING & RETAINER | 1 | $89.99 | In stock | |
| 15 | 3234437 | SPACER-RING GEAR | 1 | Price TBD | Out of stock |
