DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z26ASF99A6 (702678)
Product Description

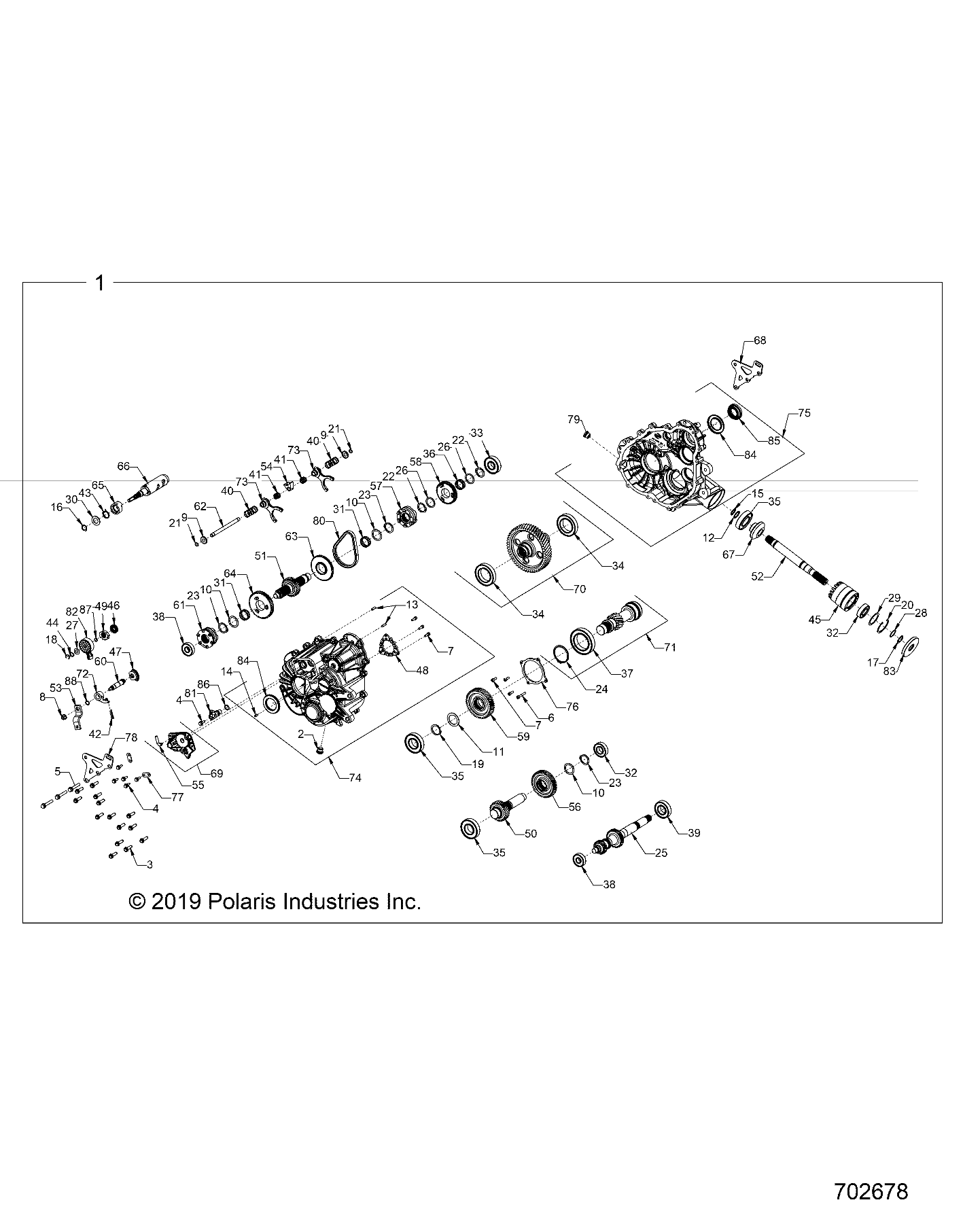

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243405
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 59 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1334342 | ASM-GEARCASE,COMPLETE [INCL. ALL] | 1 | $4,899.99 | In stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 14 | Price TBD | Out of stock | |
| 4 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 5 | 3235207 | SCREW, HEX FLANGE M8 X 50 | 3 | Price TBD | Out of stock | |
| 6 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | Price TBD | Out of stock | |
| 7 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 3 | Price TBD | Out of stock | |
| 8 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 9 | 3234091 | WASHER-CUP | 2 | $11.99 | In stock | |
| 10 | 3235211 | WASHER-32.3X42X1.5(115288) | 3 | Price TBD | Out of stock | |
| 11 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | Price TBD | Out of stock | |
| 12 | 3236410 | WASHER, 22.5 X 30 X 1.5 | 1 | Price TBD | Out of stock | |
| 13 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 14 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 15 | 7710434 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 16 | 3233045 | RING,RETAINING BASIC,EXTERNAL 0.75 | 1 | $5.99 | In stock | |
| 17 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 18 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 19 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | Price TBD | Out of stock | |
| 20 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 21 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 2 | $12.99 | In stock | |
| 22 | 3234205 | RING, RETAINING, | 2 | Price TBD | Out of stock | |
| 23 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 3 | Price TBD | Out of stock | |
| 24 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | Price TBD | Out of stock | |
| 25 | 3235763 | SHAFT, BOSS, LOWER, INPUT | 1 | $224.99 | Out of stock Est. Aug 13, 2026 | |
| 26 | 3233378 | WASHER,THRUST,1.187 X 1.500 X .0600 | 2 | Price TBD | Out of stock | |
| 27 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 28 | 3234272 | SHIM, 1.180 OD X 0.995 ID | 1 | Price TBD | Out of stock | |
| 29 | 3234273 | SHIM, 2.040 OD X 1.63 ID | 1 | Price TBD | Out of stock | |
| 30 | 3235883 | SPACER, 19.4 X 34.0 X 2.0 | 1 | $29.99 | In stock | |
| 31 | 3233014 | BEARING, NEEDLE | 2 | Price TBD | Out of stock | |
| 32 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 2 | Price TBD | Out of stock | |
| 33 | 3233020 | BEARING | 1 | Price TBD | Out of stock | |
| 34 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 35 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 3 | Price TBD | Out of stock | |
| 36 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | Price TBD | Out of stock | |
| 37 | 3235218 | BEARING, BALL, 6012 C3 60 X 95 X 18 | 1 | Price TBD | Out of stock | |
| 38 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | Price TBD | Out of stock | |
| 39 | 3235496 | BEARING, BALL 6206RSH2 STD 30 X 62 X 16 | 1 | Price TBD | Out of stock | |
| 40 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | $29.99 | In stock | |
| 41 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | $34.99 | In stock | |
| 42 | 3234578 | SPRING, COMPRESSION 0.36 O.D. X 1.125 | 1 | $16.99 | In stock | |
| 43 | 3235885 | SPRING, TORSION | 1 | $24.99 | In stock | |
| 44 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 45 | 3234278 | TUBE, SNORKEL MACHINED | 1 | Price TBD | Out of stock | |
| 46 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 47 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 48 | 3235456 | PLATE, PARK, 12 FACE | 1 | $49.99 | In stock | |
| 49 | 3235982 | STAR, DETENT, | 1 | $44.99 | In stock | |
| 50 | 3235223 | SHAFT-IDLER,29T(285803) | 1 | Price TBD | Out of stock | |
| 51 | 3235224 | SHAFT, REVERS,E 29T | 1 | $179.99 | Out of stock Est. Aug 13, 2026 | |
| 52 | 3236439 | SHAFT, FRONT OUTPUT | 1 | $164.99 | In stock | |
| 53 | 3235581 | BELLCRANK, 92 DEG | 1 | $54.99 | In stock | |
| 54 | 3234073 | COLLAR-SHIFT | 1 | $39.99 | In stock | |
| 55 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 56 | 3235229 | GEAR-44T,STAGE2 | 1 | $114.99 | Out of stock Est. Aug 13, 2026 | |
| 57 | 3235233 | ENGAGEMENT DOG,6-FACE(352857) | 1 | $159.99 | In stock | |
| 58 | 3235234 | GEAR-53T(352858) | 1 | $104.99 | In stock | |
| 59 | 3235236 | GEAR-46T,STAGE 3(352872) | 1 | Price TBD | Out of stock | |
| 60 | 3235238 | SHAFT-SHIFT(352973) | 1 | $44.99 | In stock | |
| 61 | 3235457 | SHIFT DOG, PARK/LOW (353357) | 1 | $179.99 | In stock | |
| 62 | 3235542 | RAIL-SHIFT SHAFT(353622) | 1 | $34.99 | In stock | |
| 63 | 3235755 | SPROCKET-48T,6-FACE REVERSE | 1 | $99.99 | In stock | |
| 64 | 3235774 | GEAR, LOW 64T, | 1 | $99.99 | In stock | |
| 65 | 3235983 | CAM, PARK [INCLUDES ALL HARDWARE] | 1 | $189.99 | Out of stock Est. Aug 13, 2026 | |
| 66 | 3235984 | DRUM, SHIFT MACH, [INCLUDES BEARINGS] | 1 | $344.99 | In stock | |
| 67 | 3236412 | GEAR, 13T SNORKEL [BEARING & RET. RING] | 1 | Price TBD | Out of stock | |
| 68 | 3235399 | WELDMENT REAR MOUNT BRACKET63 | 1 | Price TBD | Out of stock | |
| 69 | 3235713 | SUBASSEMBLY, SECTOR COVER | 1 | $139.99 | In stock | |
| 70 | 3235335 | SUBASSEMBLY OUTPUT (INCLUDES BEARINGS) | 1 | $429.99 | In stock | |
| 71 | 3235336 | SUBASM.,SHAFT [INCLUDES ALL HARDWARE] | 1 | Price TBD | Out of stock | |
| 72 | 3235452 | SUBASSEMBLY, PAWL, DETENT, ROLLER | 1 | $44.99 | In stock | |
| 73 | 3235920 | SUBASSEMBLY, SHIFT FORK | 2 | $89.99 | In stock | |
| 74 | 3235995 | SUBASSEMBLY, RH COVER | 1 | $549.99 | In stock | |
| 75 | 3236542 | SUBASSEMBLY, LH CASE | 1 | $619.99 | In stock | |
| 76 | 3235241 | COVER-BEARING,CNTR DR. | 1 | Price TBD | Out of stock | |
| 77 | 3235350 | BRACKET, WIRE HARNESS | 2 | Price TBD | Out of stock | |
| 78 | 3235398 | BRACKET, MOUNT, REAR | 1 | Price TBD | Out of stock | |
| 79 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 80 | 3234737 | CHAIN,SIL 101,.25P X .40W X58L | 1 | Price TBD | Out of stock | |
| 81 | 4013908 | SENSOR-SPEED,TRANS | 1 | Price TBD | Out of stock | |
| 82 | 7662299 | SWITCH, ROTARY , 2 PIN RESISTIVE | 1 | Price TBD | Out of stock | |
| 83 | 3234113 | SEAL, TRIPLE LIP VITON 25 X 80 X 10 | 1 | Price TBD | Out of stock | |
| 84 | 3235052 | SEAL, TRIPLE LIP, VITON HELIX 40X70X7 | 2 | Price TBD | Out of stock | |
| 85 | 3235495 | SEAL, TRIPLE LIP, VITON HELIX 30 X 47 | 1 | Price TBD | Out of stock | |
| 86 | 3234302 | O-RING | 1 | $8.99 | In stock | |
| 87 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 88 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock |
