Polaris•Schematic assembly

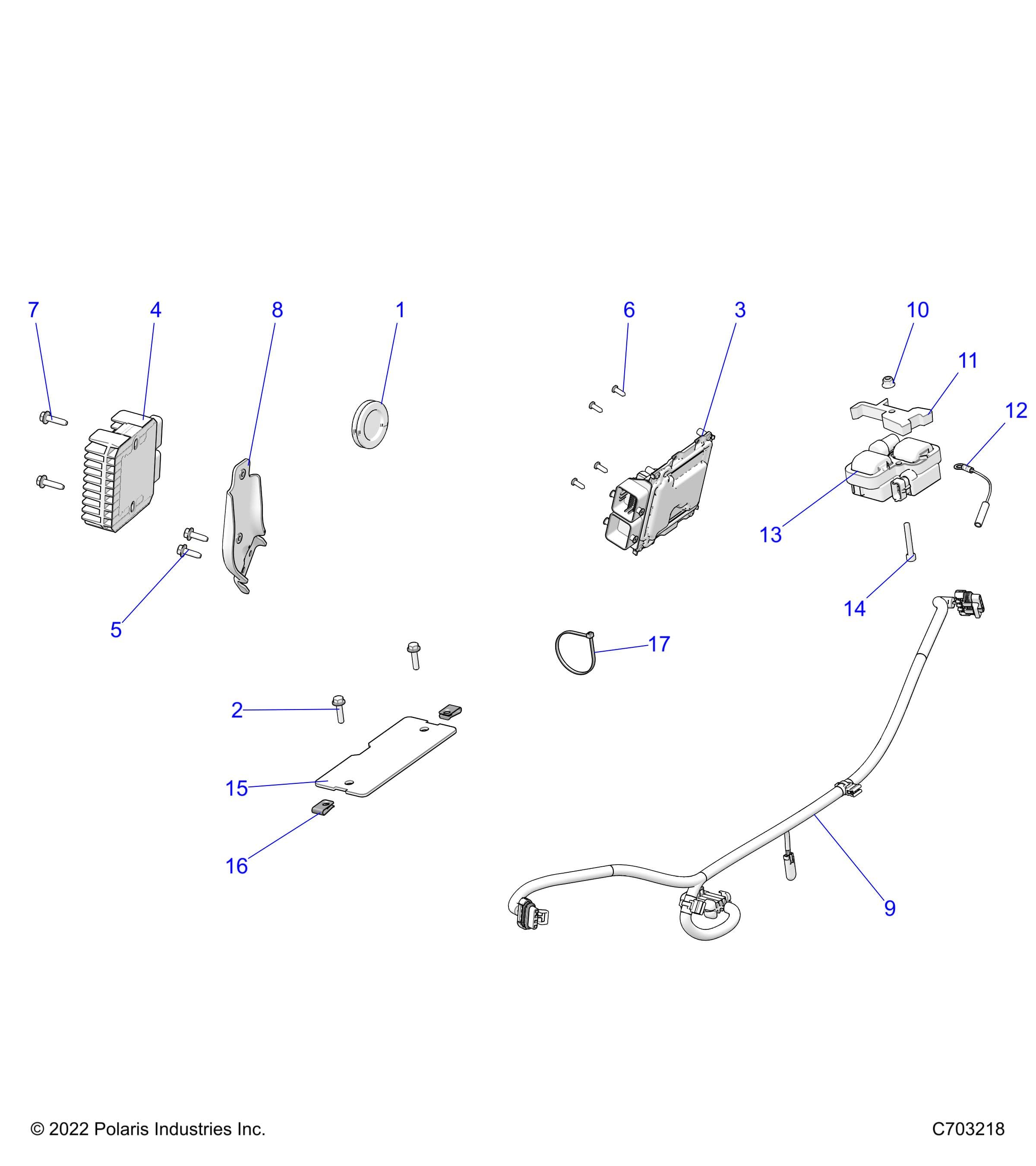

ELECTRICAL, ECU, REG, ETC. - Z26ASF99A6 (C703218)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243413
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5414440 | GROMMET, ELECTRICAL, CAB | 1 | $8.99 | In stock | |
| 2 | 7518533 | SCR-HXFL-M6X1.0X25 8.8 RIE | 4 | $1.49 | In stock | |
| 3 | 4014125 | ECM-HARD,ME17,2CYL,250K | 1 | Price TBD | Out of stock | |
| 4 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | Price TBD | Out of stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 6 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | Price TBD | Out of stock | |
| 7 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | $1.99 | In stock | |
| 8 | 5264572-329 | BRKT-MOUNT,REGULATOR,ECOAT | 1 | $44.99 | In stock | |
| 9 | 2415211 | HARNESS-BOX,RZR,64,CAMERA | 1 | $79.99 | In stock | |
| 10 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 11 | 5436577 | SPACER-COIL MOUNT | 1 | Price TBD | Out of stock | |
| 12 | 4014422 | JUMPER, COIL GROUND | 1 | $39.99 | In stock | |
| 13 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 14 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | Price TBD | Out of stock | |
| 15 | 5454317 | PANEL-CLOSEOFF,FUSE CTR LOC | 1 | $11.99 | In stock | |
| 16 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | Price TBD | Out of stock | |
| 17 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 1 | Price TBD | Out of stock |
