Polaris•Schematic assembly

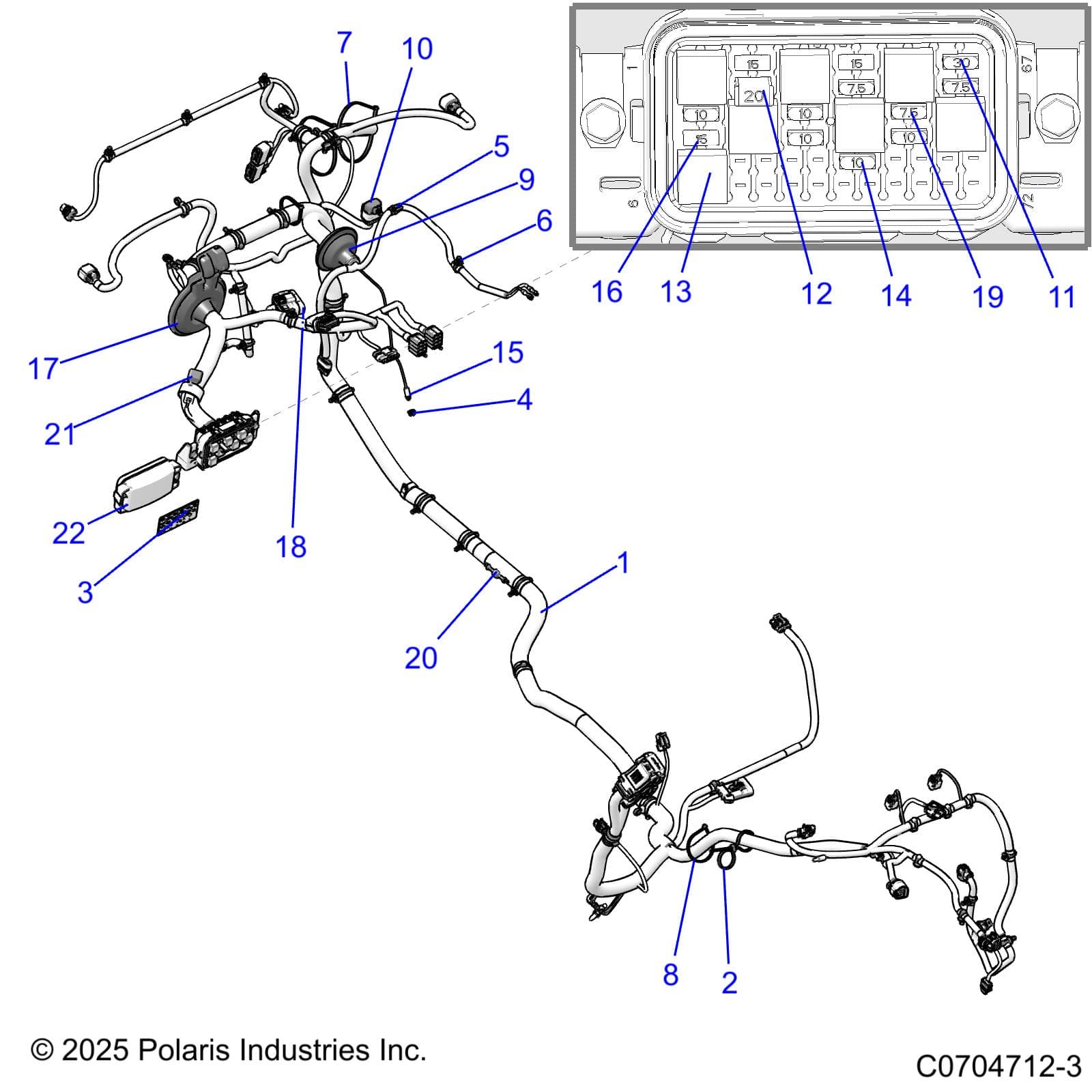

ELECTRICAL, WIRE HARNESS - Z26ASF99A6 (C0704712-3)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243416
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2417897 | HARN-CHASSIS,RZR1000,PR TRL [INCL. ALL] | 1 | Price TBD | Out of stock | |
| 2 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 4 | Price TBD | Out of stock | |
| 3 | 7192392 | LABEL-FUSE BOX | 1 | Price TBD | Out of stock | |
| 4 | 7082020 | CLIP - ROUTING, DIN BOX | 1 | $6.99 | In stock | |
| 5 | 7081890 | CLIP-EDGE,HARNESS | 1 | Price TBD | Out of stock | |
| 6 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 0 | Price TBD | Out of stock | |
| 7 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 2 | Price TBD | Out of stock | |
| 8 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | Price TBD | Out of stock | |
| 9 | 5813954 | GROMMET - 65 MM, BLK | 1 | $8.99 | In stock | |
| 10 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 11 | 2434015 | FUSE-MAIN,30 AMP | 2 | Price TBD | Out of stock | |
| 12 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | $54.99 | In stock | |
| 13 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 7 | Price TBD | Out of stock | |
| 14 | 2434016 | FUSE-IGNITION,10 AMP | 5 | Price TBD | Out of stock | |
| 15 | 2413217 | LED - PANEL MNT, 12V, BLUE | 1 | $64.99 | In stock | |
| 16 | 2410280 | FUSE-MINI BLADE,15 AMP | 2 | Price TBD | Out of stock | |
| 17 | 5416469 | GROMMET - DASH FUSE CTR, RZR | 1 | $12.99 | In stock | |
| 18 | 4018655 | CAP-EVAP CONNECTOR | 1 | Price TBD | Out of stock | |
| 19 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 4 | Price TBD | Out of stock | |
| 20 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | $69.99 | In stock | |
| 21 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | $49.99 | In stock | |
| 22 | 4014047 | COVER,FUSEBOX,72WAY | 1 | Price TBD | Out of stock |
