Polaris•Schematic assembly

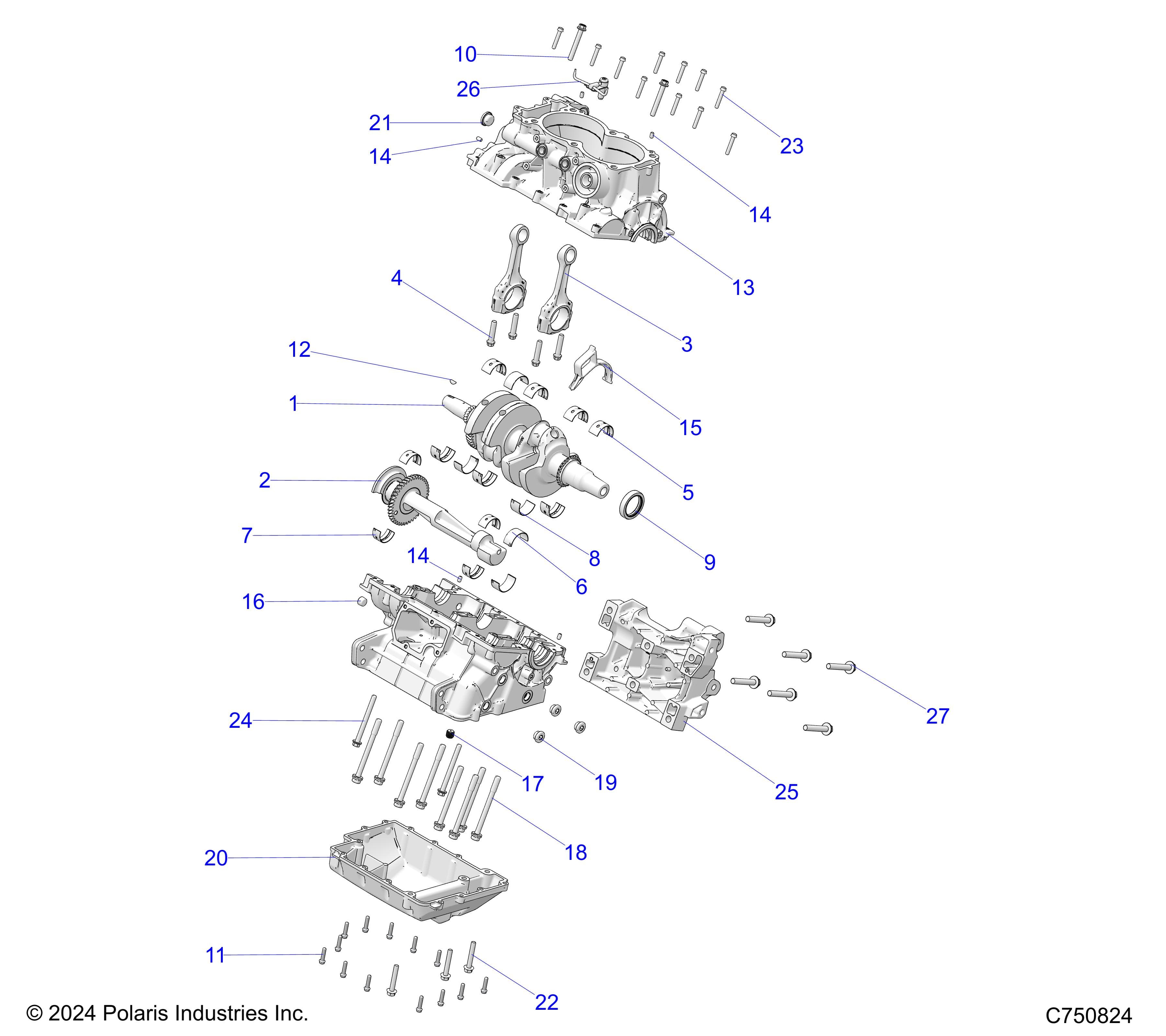

ENGINE, CRANKCASE AND CRANKSHAFT - Z26ASF99A6 (C750824)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243421
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 31 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023103 | ASM-CRANKSHAFT | 1 | Price TBD | Out of stock | |
| 2 | 1204835 | ASM-BALANCE SHAFT | 1 | Price TBD | Out of stock | |
| 3 | 3024355 | ASM-CONNECTING ROD [INCLUDES 4] | 2 | Price TBD | Out of stock | |
| 4 | 7520356 | BOLT-CONROD MJ9X1.0X44 | 4 | Price TBD | Out of stock | |
| 5 | 3514662-001 | BEARING-MAIN,G-90,41MM | 7 | Price TBD | Out of stock | |
| 5 | 3514662-002 | BEARING-MAIN,G-90,41MM,BLU | 7 | Price TBD | Out of stock | |
| 5 | 3514662-003 | BEARING-MAIN,G-90,41MM,GRN | 7 | Price TBD | Out of stock | |
| 5 | 3514662-004 | BEARING-MAIN,G-90,41MM,YLW | 7 | Price TBD | Out of stock | |
| 5 | 3514662-005 | BEARING-MAIN,G-90,41MM,RED | 7 | Price TBD | Out of stock | |
| 6 | 3514663-001 | BEARING, CONNECTING ROD, WHITE | 4 | Price TBD | Out of stock | |
| 6 | 3514663-002 | BEARING, CONNECTING ROD, BLUE | 4 | Price TBD | Out of stock | |
| 6 | 3514663-003 | BEARING, CONNECTING ROD, GREEN | 4 | Price TBD | Out of stock | |
| 6 | 3514663-004 | BEARING, CONNECTING ROD, YELLOW | 4 | Price TBD | Out of stock | |
| 7 | 3514756 | BEARING-BAL SHAFT,38X41X17.5 | 4 | Price TBD | Out of stock | |
| 8 | 3514803-002 | BEARING-MAIN,CNTR,LWR BLU | 1 | $14.99 | In stock | |
| 8 | 3514803-003 | BEARING-MAIN,CNTR,LWR,GREEN | 1 | $14.99 | In stock | |
| 8 | 3514803-004 | BEARING-MAIN,CNTR,LWR,YELLOW | 1 | $14.99 | In stock | |
| 9 | 3610284 | SEAL-CRANKSHAFT | 1 | Price TBD | Out of stock | |
| 10 | 7519186 | SCR-HXFLG,M8X1.25X60 | 2 | Price TBD | Out of stock | |
| 11 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 13 | Price TBD | Out of stock | |
| 12 | 7721122 | KEY-WOODRUFF,4X5 | 1 | Price TBD | Out of stock | |
| 13 | 2207373 | K-CRANKCASE 1205719 [INCLUDES 14-19] | 1 | $1,549.99 | In stock | |
| 14 | 5143560 | PIN-DOWEL,M6X10 | 8 | Price TBD | Out of stock | |
| 15 | 5455583 | DIVERTER, OIL DRAIN | 1 | Price TBD | Out of stock | |
| 16 | 7052413 | PLUG-3/8 NPT,HX/SOC W/SEALANT | 2 | Price TBD | Out of stock | |
| 17 | 7518835 | PLUG-HEX SOCKET,1/4X18,SEALANT | 2 | Price TBD | Out of stock | |
| 18 | 7527904 | SCR-HXFL,M10X1.25X113MM 10.9 | 8 | Price TBD | Out of stock | |
| 19 | 7052642 | PLUG-HEX SCKT,W/O-RING,M16X1.5 | 3 | Price TBD | Out of stock | |
| 20 | 5143719 | COVER-SUMP,MACH | 1 | Price TBD | Out of stock | |
| 21 | 7052643 | PLUG-HEX SCKT,W/O-RING,M20X1.5 | 1 | Price TBD | Out of stock | |
| 22 | 7517793 | SCR-M8X1.25X50 HX/FL-Y | 3 | Price TBD | Out of stock | |
| 23 | 7518578 | SCR-HXFL-M6X1.0X35 8.8 ZY3 | 12 | Price TBD | Out of stock | |
| 24 | 7519154 | SCR-HXFLG,M8X1.25X90 | 2 | Price TBD | Out of stock | |
| 25 | 5143718 | BRKT-TRANSJOINT,MACH | 1 | Price TBD | Out of stock | |
| 26 | 3022856 | JET, PISTON | 1 | $54.99 | In stock | |
| 27 | 7520467 | BOLT-M10X1.5X60MM8.8HEXDRILOCK | 6 | Price TBD | Out of stock |
