Polaris•Schematic assembly

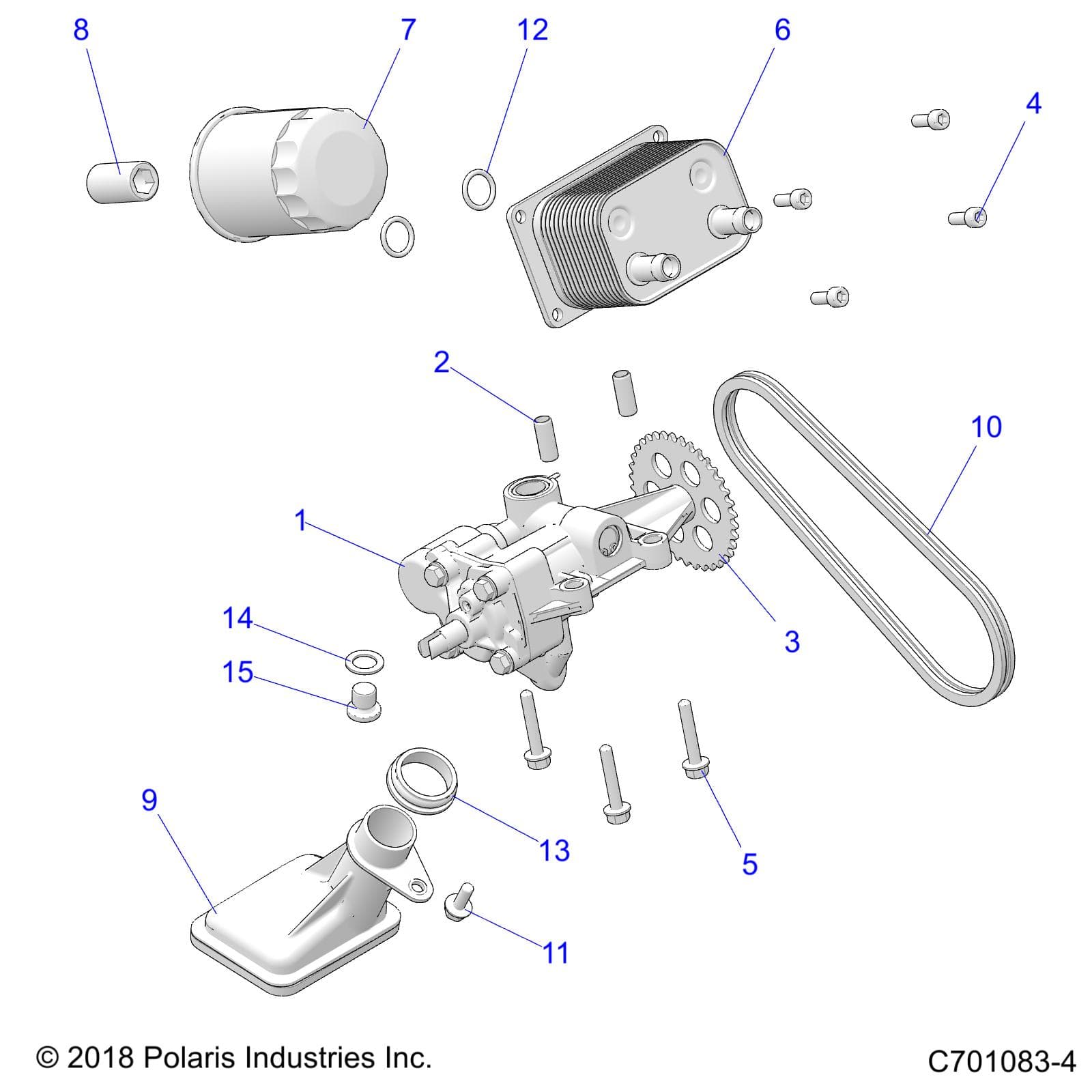

ENGINE, OIL PUMP and OIL COOLER - Z26ASF99A6 (C701083-4)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243428
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023124 | PUMP, OIL [INCL. 3,O-RING] | 1 | $254.99 | In stock | |
| 1 | 3610269 | O-RING,OIL PUMP | 1 | $11.99 | In stock | |
| 2 | 7661975 | DOWEL-HOLLOW,OIL PUMP | 2 | Price TBD | Out of stock | |
| 3 | ------- | SPROCKET, OIL PUMP | 1 | Price TBD | Out of stock | |
| 4 | 7519303 | SCREW-SH-M6X1.0X16 8.8 ZPY D204 | 4 | Price TBD | Out of stock | |
| 5 | 7516827 | SCR-M6X1.0X35,HX/FL-Y/D | 3 | Price TBD | Out of stock | |
| 6 | 1240820 | COOLER, OIL TO WATER, 7 | 1 | $124.99 | Out of stock Est. Jul 31, 2026 | |
| 7 | 2540086 | FILTER-OIL (10 MICRON) | 1 | Price TBD | Out of stock | |
| 7 | 2522485 | FILTER-HD,OIL [HD OPTION] | 1 | Price TBD | Out of stock | |
| 8 | 2521530 | ADAPTOR-FILTER,STRAIGHT | 1 | Price TBD | Out of stock | |
| 9 | 2521699 | PICKUP, OIL PUMP, WET SUMP | 1 | Price TBD | Out of stock | |
| 10 | 3225043 | CHAIN-OIL PUMP DRIVE,G-90 | 1 | Price TBD | Out of stock | |
| 11 | 7519236 | SCR-HXFL-M6X1.0X16 8.8 ZYL NYL | 1 | Price TBD | Out of stock | |
| 12 | 5413837 | O-RING,.612X.818X.103 | 2 | Price TBD | Out of stock | |
| 13 | 5415949 | SEAL-PICKUP | 1 | $6.99 | In stock | |
| 14 | 5812232 | WASHER-19X12X1.3,COPPER | 1 | $1.99 | In stock | |
| 15 | 7052306 | PLUG-SOCKET,M12X1.5 DIN 908A | 1 | Price TBD | Out of stock |
