Polaris•Schematic assembly

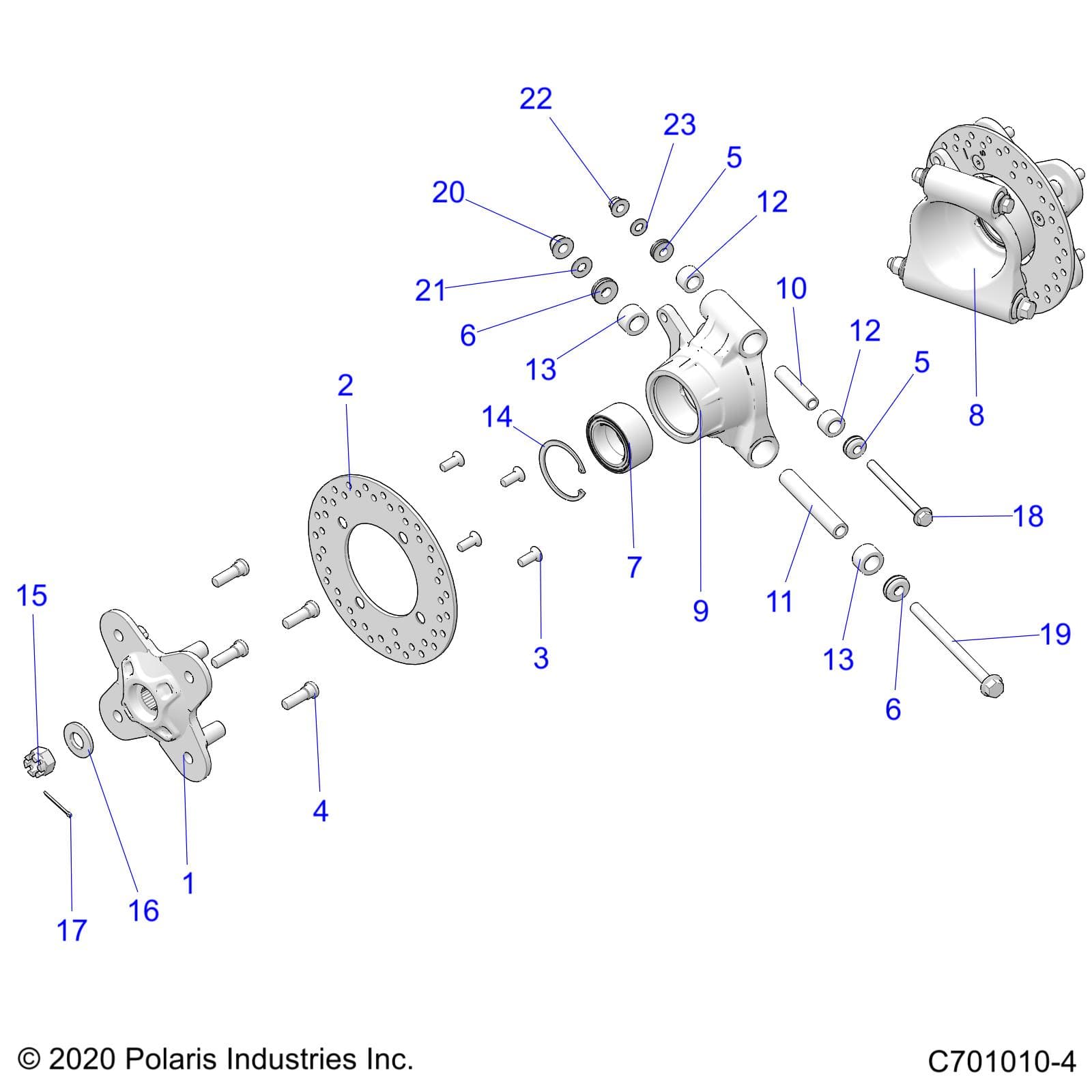

SUSPENSION, REAR CARRIER - Z26ASF99A6 (C701010-4)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243444
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 21 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5142019-458 | HUB-WHEEL,MACH,BLK | 2 | Price TBD | Out of stock | |
| 2 | 5263266 | ROTOR,BRAKE | 2 | Price TBD | Out of stock | |
| 3 | 7518978 | SCR-M10X1.5X20 8.8 TXCS FL ZOD | 8 | Price TBD | Out of stock | |
| 4 | 7519753 | STUD-WHEEL,M12-1.5 | 8 | Price TBD | Out of stock | |
| 5 | 1543611 | ASM-PIVOT CAP, SEALED, M10 | 4 | Price TBD | Out of stock | |
| 6 | 1543612 | ASM-PIVOT CAP, SEALED, M12 | 4 | Price TBD | Out of stock | |
| 7 | 3514924 | BEARING-BALL,SEALED,44X72X33.1 | 2 | Price TBD | Out of stock | |
| 7 | 3515090 | BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL] | 2 | Price TBD | Out of stock | |
| 8 | 5139979 | CARRIER, BEARING, WHEEL, LH | 2 | $124.99 | In stock | |
| 9 | 5139980 | CARRIER, BEARING, WHEEL, RH | 1 | $124.99 | In stock | |
| 10 | 5139990 | SHAFT-PIVOT, SHORT, M10 | 2 | Price TBD | Out of stock | |
| 11 | 5139991 | SHAFT-PIVOT, LONG, M12 | 2 | $10.99 | In stock | |
| 12 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 4 | Price TBD | Out of stock | |
| 13 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 4 | Price TBD | Out of stock | |
| 14 | 7710440 | RING-RETAINING,2.875,INTERNAL | 2 | Price TBD | Out of stock | |
| 15 | 7547337 | NUT-M18X1.5,CASTLE,ZINC/YELLOW | 2 | Price TBD | Out of stock | |
| 16 | 7557134 | WSHR-AXLE,M18,42X4.5 | 2 | Price TBD | Out of stock | |
| 17 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 2 | Price TBD | Out of stock | |
| 18 | 7519365 | SCR-HXFL-M10X1.25X115 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 19 | 7520294 | SCR-HXFL-M12X1.5X170 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 20 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 21 | 7556212 | WASHER-7/16 SAE,STF,THRU-HRD-Y | 2 | Price TBD | Out of stock | |
| 22 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 23 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 2 | Price TBD | Out of stock |
