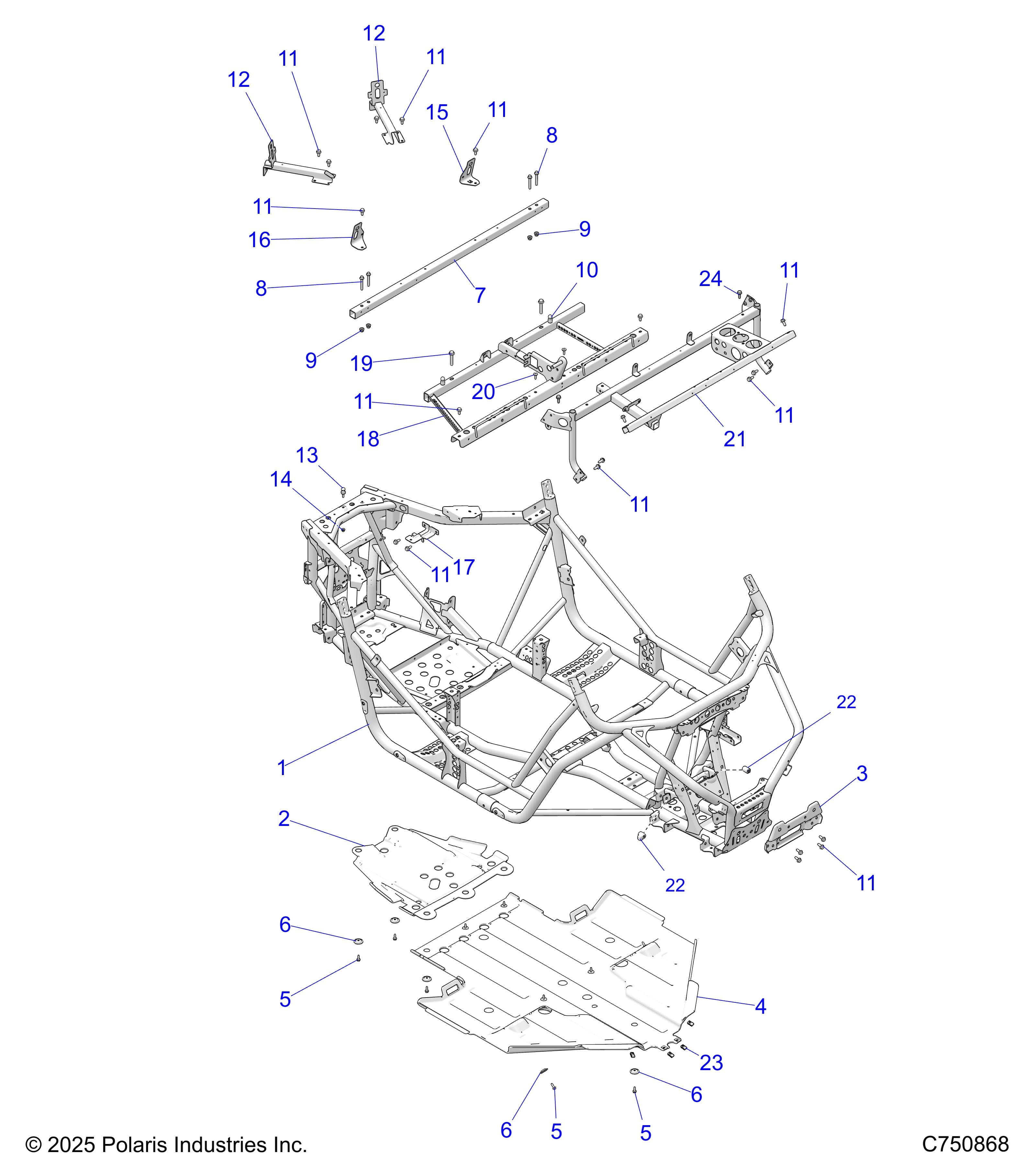

Schematic diagram
Polaris•Schematic assembly
CHASSIS, MAIN FRAME AND SKID PLATE - Z26ASF99A6 (C750868)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243512
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029874-458 | WELD-MAIN FRAME,BLK | 1 | $2,989.99 | In stock | |
| 2 | 5456433-070 | PLATE-SKID,REAR,BLK | 1 | $229.99 | In stock | |
| 3 | 5259449-458 | BRKT-SUSP MNT,FRT,M.BLK | 1 | $64.99 | In stock | |
| 4 | 5466153-070 | PLATE,SKID AP,CLOSEOFF,BLK | 1 | Price TBD | Out of stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 0 | Price TBD | Out of stock | |
| 6 | 7556065 | WASHER-SKID PLATE | 0 | Price TBD | Out of stock | |
| 7 | 1024407-329 | ASM-TUBE,TOP FRAME,ECOAT | 1 | $99.99 | In stock | |
| 8 | 7517281 | SCR-M8X1.25X55,HX/FL-Y | 4 | $8.99 | In stock | |
| 9 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | Price TBD | Out of stock | |
| 10 | 5632848 | LATCH, PLUNGER, SEAT | 2 | $16.99 | In stock | |
| 11 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 0 | Price TBD | Out of stock | |
| 12 | 1020506-458 | MOUNT, BODY, MATTE BLACK | 2 | $74.99 | In stock | |
| 13 | 5139009 | PLUNGER, BOX, LATCH | 1 | $16.99 | In stock | |
| 14 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 15 | 5259103-458 | TIEDOWN, FRONT, LH, MATTE BLACK | 1 | $39.99 | In stock | |
| 16 | 5263590-458 | TIEDOWN,FRONT,RH,BLK | 1 | $34.99 | In stock | |
| 17 | 5259105-329 | MOUNT, COIL, MATTE BLACK | 1 | $34.99 | In stock | |
| 18 | 1020571-329 | WELD-SEAT BASE,BLK | 1 | $259.99 | In stock | |
| 19 | 7518474 | SCR-HXFL-M10X1.5X55 8.8 ZY3 | 2 | $5.99 | In stock | |
| 20 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 21 | 1024577-329 | WELD-DASH,TURBO,S,ECOAT | 1 | $409.99 | In stock | |
| 22 | 5633160 | MOUNT-CAST,SWAY BAR | 2 | $12.99 | NLA | |
| 23 | 7081305 | CLIP-U SPEED NUT | 0 | Price TBD | Out of stock | |
| 24 | 7519156 | SCR-HXFL,M8X1.25X25,ZOD,TAP/R | 2 | $1.99 | In stock |
