Schematic diagram
Polaris•Schematic assembly

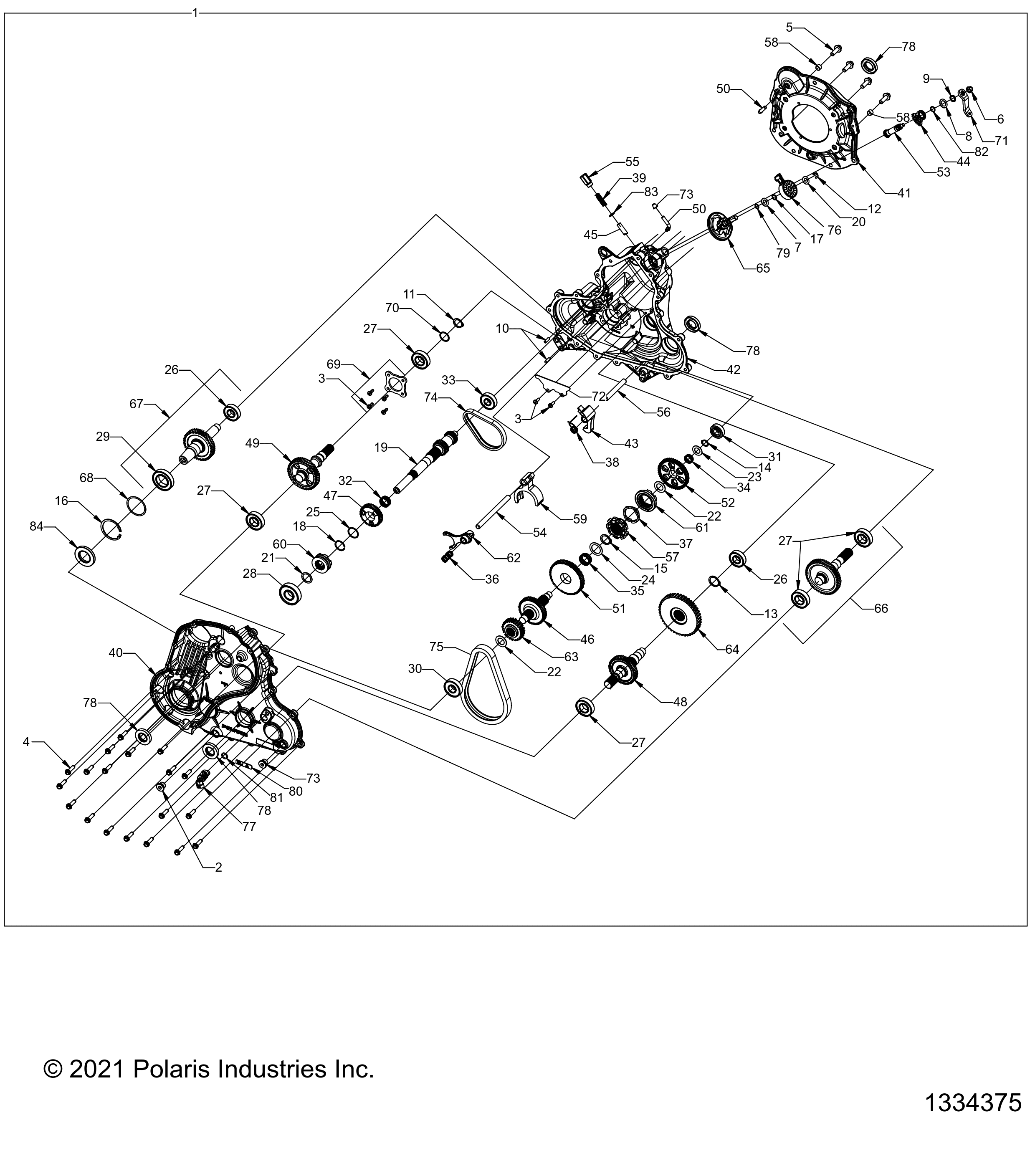

DRIVE TRAIN, MAIN GEARCASE - A26SGE95AB (1334375)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243914
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 23 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1334375 | ASM-TRANS,BOSS/LUK,MID RATIO [INCL. ALL] | 1 | $2,704.99 | Out of stock Est. Jul 14, 2027 | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234309 | SCREW, 6-LOBE, PAN HD M6 X 1 X 16 | 6 | Price TBD | Out of stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 19 | Price TBD | Out of stock | |
| 5 | 3234634 | SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30 | 4 | Price TBD | Out of stock | |
| 6 | 3233961 | NUT, LOCK, HEX FLANGE NYLON 5/16-24 | 1 | $3.49 | Out of stock Est. Aug 21, 2026 | |
| 7 | 3234636 | WASHER, THRUST, 0.5 X 0.937 X 0.063 | 1 | $9.99 | In stock | |
| 8 | 3234637 | WASHER, THRUST, .625 X 1.000 X 0.063 | 1 | $13.99 | In stock | |
| 9 | 3235508 | WASHER, RIBBED | 1 | $4.99 | In stock | |
| 10 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 11 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 12 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 13 | 3233699 | RING RETAINING, IRR 7200-118 | 1 | $8.99 | In stock | |
| 14 | 3234318 | RING, RETAINING, EXTERNAL SHR-66 | 1 | $3.99 | In stock | |
| 15 | 3234327 | RING, RETAINING BASIC, EXTERNA | 1 | $8.99 | In stock | |
| 16 | 3234741 | RING, RETAINING BASIC, INTERNAL, 62MM | 1 | $11.99 | In stock | |
| 17 | 3234639 | RING, RETAINING BASIC, EXTERNAL, SHR-50 | 1 | $12.99 | In stock | |
| 18 | 3234641 | RING, RETAINING, EXTERNAL USC-112 | 1 | $16.99 | In stock | |
| 19 | 3236308 | SHAFT, INPUT 25T | 1 | $399.99 | In stock | |
| 20 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 21 | 3234248 | WASHER, THRUST 1.300 X 0.995 X 0.065 | 1 | $11.99 | In stock | |
| 22 | 3234643 | SHIM, 1.35 OD X 0.818 ID | 2 | $44.99 | In stock | |
| 23 | 3234644 | SHIM, 1.17 OD X 0.675 ID | 1 | $16.99 | In stock | |
| 24 | 3234646 | WASHER, THRUST, 1.568 OD X .1.110 ID | 1 | $29.99 | In stock | |
| 25 | 3234757 | WASHER, THRUST, � 33 X � 29 X 1.5 | 1 | $13.99 | In stock | |
| 26 | 3233018 | BEARING-BALL,6307 C3,35X80X21 | 2 | $34.99 | In stock | |
| 27 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 5 | Price TBD | Out of stock | |
| 28 | 3233020 | BEARING | 1 | Price TBD | Out of stock | |
| 29 | 3233265 | BEARING-BALL 6007 C3 35 X 62 X 14 | 1 | $49.99 | In stock | |
| 30 | 3234651 | BEARING BALL,6304STD 20X52X15 | 1 | $19.99 | Out of stock Est. Sep 11, 2026 | |
| 31 | 3234274 | BEARING, BALL 6203 17 X 40 X 12 | 1 | $34.99 | In stock | |
| 32 | 3234759 | BEARING, NEEDLE, SPLIT CAGE | 1 | $19.99 | In stock | |
| 33 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 1 | Price TBD | Out of stock | |
| 34 | 3234655 | BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10 | 1 | $19.99 | In stock | |
| 35 | 3234656 | BEARING, NEEDLE, 28 X 33 X 13 | 1 | $19.99 | In stock | |
| 36 | 3234687 | SPRING, COMPRESSION, 0.648 O.D. X 1.33 | 1 | $10.99 | In stock | |
| 37 | 3234688 | SPRING, WAVE, 1.60 ID X 0.375 | 1 | $12.99 | In stock | |
| 38 | 3234787 | SPRING, PARK PAWL, TORSION | 1 | $34.99 | In stock | |
| 39 | 3234790 | SPRING, COMPRESSION, 0.45 OD X 1.58 | 1 | $29.99 | In stock | |
| 40 | 3234689 | GEARCASE GTO, COVER, MACH | 1 | $459.99 | In stock | |
| 41 | 3235196 | BELLHOUSING, MACH | 1 | $49.99 | In stock | |
| 42 | 3235428 | GEARCASE, MAIN, GTO MACH | 1 | $399.99 | In stock | |
| 43 | 3239339 | PAWL, PARK | 1 | $64.99 | In stock | |
| 44 | 3234694 | GEAR, SECTOR, 38T | 1 | $39.99 | In stock | |
| 45 | 3234695 | BULLET DETENT | 1 | $44.99 | In stock | |
| 46 | 3234774 | Shaft, Reverse, 53T | 1 | $244.99 | In stock | |
| 47 | 3235133 | GEAR, HELICAL, 42T | 1 | $99.99 | In stock | |
| 48 | 3235195 | SHAFT, OUTPUT REAR | 1 | $284.99 | In stock | |
| 49 | 3236557 | SHAFT, INPUT | 1 | $299.99 | In stock | |
| 50 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 2 | Price TBD | Out of stock | |
| 51 | 3234706 | GEAR, 67T | 1 | $114.99 | In stock | |
| 52 | 3236309 | SPROCKET 48T 6-FACE | 1 | $64.99 | In stock | |
| 53 | 3234712 | SHAFT, SHIFT, BELLCRANK | 1 | $79.99 | In stock | |
| 54 | 3234714 | Rail, Shift, Shaft | 1 | $34.99 | In stock | |
| 55 | 3234715 | PLUG, DETENT | 1 | $44.99 | In stock | |
| 56 | 3234716 | RAIL, PARK SHAFT | 1 | $34.99 | In stock | |
| 57 | 3234718 | DOG, ENGAGEMENT, GTO, LOW | 1 | $229.99 | In stock | |
| 58 | 3234765 | PIPE, KNOCK | 2 | $16.99 | In stock | |
| 59 | 3236310 | FORK, SHIFT | 1 | $114.99 | In stock | |
| 60 | 3235190 | DOG, ENGAGEMENT, GTO, HIGH | 1 | $89.99 | In stock | |
| 61 | 3235341 | DOG, ENGAGEMENT, GTO, REV/LOW | 1 | $224.99 | In stock | |
| 62 | 3235342 | FORK, SHIFT | 1 | $109.99 | In stock | |
| 63 | 3236336 | SPROCKET, 23T | 1 | $69.99 | Out of stock Est. Dec 11, 2026 | |
| 64 | 3236337 | SPROCKET, 44T | 1 | $79.99 | In stock | |
| 65 | 3234767 | SUBASM., SWITCH SHAFT | 1 | $154.99 | Out of stock Est. Aug 3, 2026 | |
| 66 | 3234723 | SUBASSY, OUTPUT, FRONT W/BEARINGS (#27) | 1 | $274.99 | In stock | |
| 67 | 3235191 | SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25) | 1 | $384.99 | In stock | |
| 68 | 2204268 | KIT, GTO, PRIMARY SHIM PACK | 1 | $49.99 | In stock | |
| 69 | 3235198 | SUBASSY BEARING COVER W/SCREWS (#3) | 1 | $29.99 | In stock | |
| 70 | 2204343 | KIT, LUK, INPUT SHAFT SHIM PACK | 1 | $39.99 | In stock | |
| 71 | 3234724 | BELLCRANK, 15T SPLINE | 1 | $34.99 | In stock | |
| 72 | 3234725 | Deflector, Oil | 1 | $16.99 | In stock | |
| 73 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 74 | 3235633 | CHAIN, SILENT, TYPE 103 .25P X .48W X 58L | 1 | $329.99 | In stock | |
| 75 | 3235245 | CHAIN SILENT, 0.75 X .375P X 64P | 1 | $259.99 | Out of stock Est. Aug 17, 2026 | |
| 76 | 7662383 | SWITCH, ROTARY, 2 PIN RESISTIVE | 1 | $139.99 | In stock | |
| 77 | 4013908 | SENSOR-SPEED,TRANS | 1 | Price TBD | Out of stock | |
| 78 | 3234892 | SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON | 4 | $44.99 | In stock | |
| 79 | 3236171 | O-RING - N70, 9.5 MM X 2 MM | 1 | $11.99 | In stock | |
| 80 | 2877606 | LABEL, OIL | 1 | Price TBD | Out of stock | |
| 81 | 3233840 | O-RING, -113 VITON | 1 | Price TBD | Out of stock | |
| 82 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 83 | 3234729 | O-RING, 0.53 I.D X 0.082 WIDE | 1 | $16.99 | In stock | |
| 84 | 3234769 | SEAL, 35 X 62 X 8 | 1 | $54.99 | In stock |
