Schematic diagram
Polaris•Schematic assembly

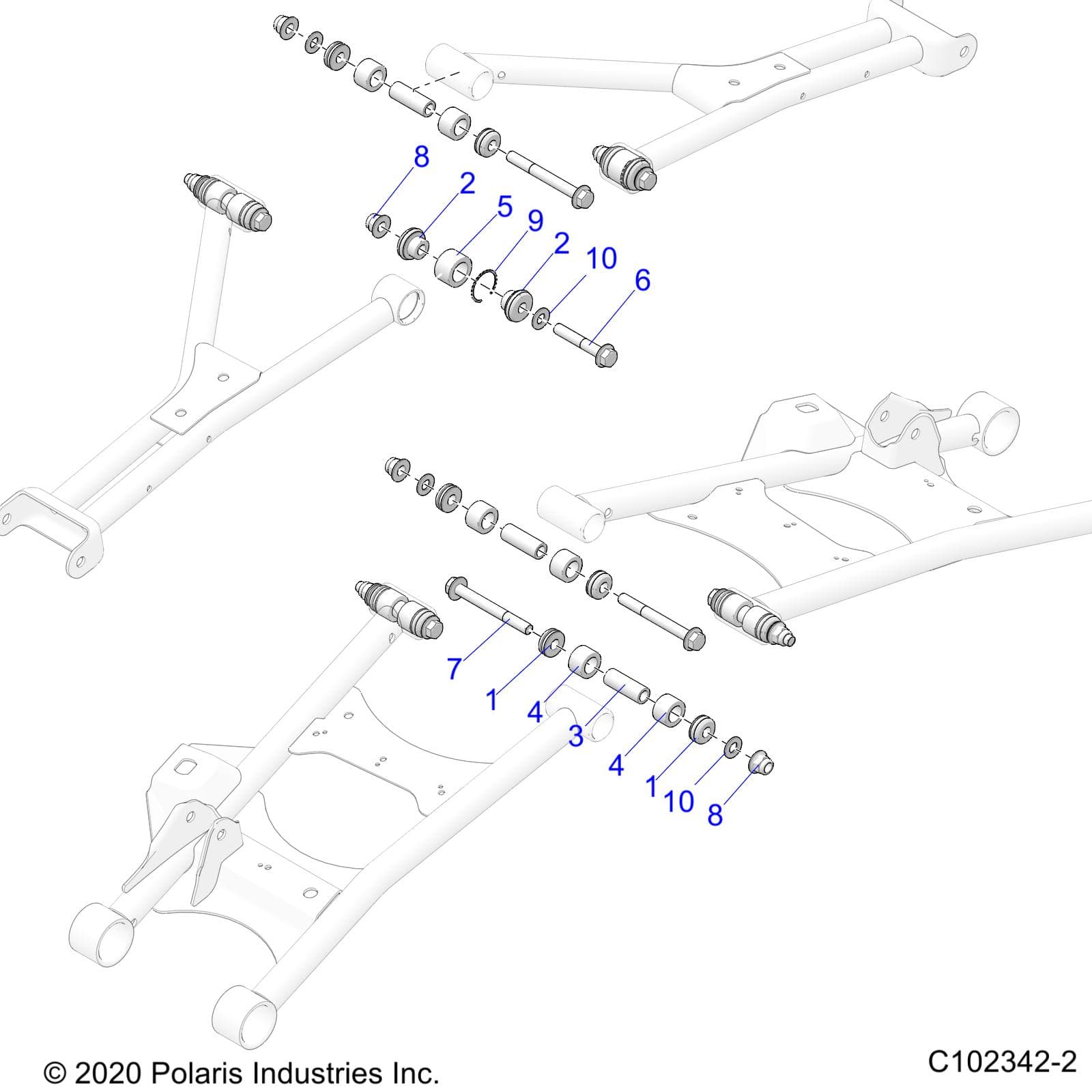

SUSPENSION, REAR CONTROL ARM, MOUNTING - A26SGE95AB (C102342-2)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243958
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCL CAP & ORING] | 12 | Price TBD | Out of stock | |
| 1 | 5139968 | CAP-PIVOT SEAL,M10 | 12 | Price TBD | Out of stock | |
| 1 | 5415653 | O-RING,2-210 | 12 | Price TBD | Out of stock | |
| 1 | 1543611 | ASM-PIVOT CAP, SEALED, M10 [INCL CAP & ORING] | 12 | Price TBD | Out of stock | |
| 1 | 5139968 | CAP-PIVOT SEAL,M10 | 12 | Price TBD | Out of stock | |
| 1 | 5415653 | O-RING,2-210 | 12 | Price TBD | Out of stock | |
| 2 | 1543922 | ASM-PIVOT CAP,SEALED,M10 [INCL CAP & ORING] | 4 | $12.99 | In stock | |
| 2 | 5141313 | CAP-PIVOT SEAL,M10 | 4 | $5.99 | In stock | |
| 2 | 5415654 | O-RING,2-213 | 4 | Price TBD | Out of stock | |
| 2 | 1543922 | ASM-PIVOT CAP,SEALED,M10 [INCL CAP & ORING] | 4 | $12.99 | In stock | |
| 2 | 5141313 | CAP-PIVOT SEAL,M10 | 4 | $5.99 | In stock | |
| 2 | 5415654 | O-RING,2-213 | 4 | Price TBD | Out of stock | |
| 2 | 1543922 | ASM-PIVOT CAP,SEALED,M10 [INCL CAP & ORING] | 4 | $12.99 | In stock | |
| 2 | 5141313 | CAP-PIVOT SEAL,M10 | 4 | $5.99 | In stock | |
| 2 | 5415654 | O-RING,2-213 | 4 | Price TBD | Out of stock | |
| 3 | 5141292 | SHAFT-PIVOT,SHORT,M10,43MM | 6 | $4.99 | In stock | |
| 4 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 8 | Price TBD | Out of stock | |
| 5 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 2 | Price TBD | Out of stock | |
| 6 | 7519306 | SCR-HXFL-M10X1.25X60 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 7 | 7521024 | SCR-HXFL-M10X1.25X90 10.9 ZOD | 6 | $4.99 | In stock | |
| 8 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 8 | Price TBD | Out of stock | |
| 9 | 7710869 | 30MM SPIRAL RING,STEEL | 2 | Price TBD | Out of stock | |
| 10 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 8 | Price TBD | Out of stock |
