Polaris•Schematic assembly

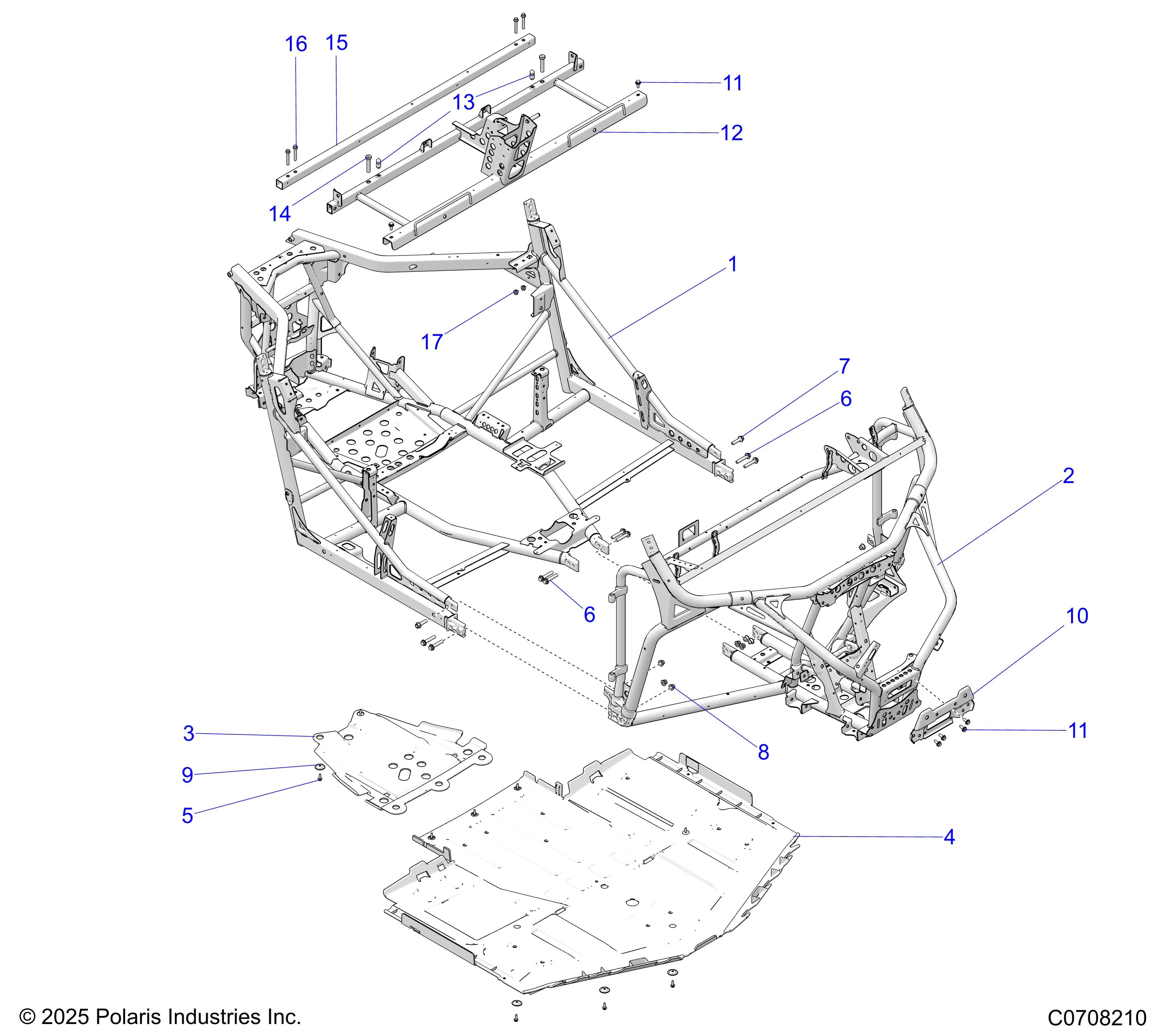

CHASSIS, MAIN FRAME AND SKID PLATES
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 243971
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2213066 | K-FRAME,MAIN,GENERAL,BLK | 1 | $2,284.99 | In stock | |
| 2 | 1029783-458 | WELD-FRAME,FRONT,2 PC,BLK | 1 | $1,889.99 | In stock | |
| 3 | 5456433-070 | PLATE-SKID,REAR,BLK | 1 | Price TBD | Out of stock | |
| 4 | 5465903-070 | PLATE,SKID GE,2P,BLK | 1 | $209.99 | In stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 9 | Price TBD | Out of stock | |
| 6 | 7519285 | SCR-HXFL-M10X1.25X55 10.9 ZOD | 8 | Price TBD | Out of stock | |
| 7 | 7519332 | SCR-HXFL-M10X1.25X40 8.8 ZOD | 2 | Price TBD | Out of stock | |
| 8 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 10 | Price TBD | Out of stock | |
| 9 | 7556065 | WASHER-SKID PLATE | 9 | Price TBD | Out of stock | |
| 10 | 5259449-458 | BRKT-SUSP MNT,FRT,M.BLK | 1 | Price TBD | Out of stock | |
| 11 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 6 | Price TBD | Out of stock | |
| 12 | 1029842-329 | WELD-SEAT BASE,E-COAT [INCLUDES 13] | 1 | $419.99 | In stock | |
| 13 | 5632848 | LATCH, PLUNGER, SEAT | 2 | Price TBD | Out of stock | |
| 14 | 7528402 | SCR-HH-M12X1.75X60 10.9 ZTC | 2 | Price TBD | Out of stock | |
| 15 | 1029761 | ASM-TUBE,TOP FRAME | 1 | $114.99 | In stock | |
| 16 | 7517281 | SCR-M8X1.25X55,HX/FL-Y | 4 | Price TBD | Out of stock | |
| 17 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | Price TBD | Out of stock |
