Schematic diagram
Polaris•Schematic assembly

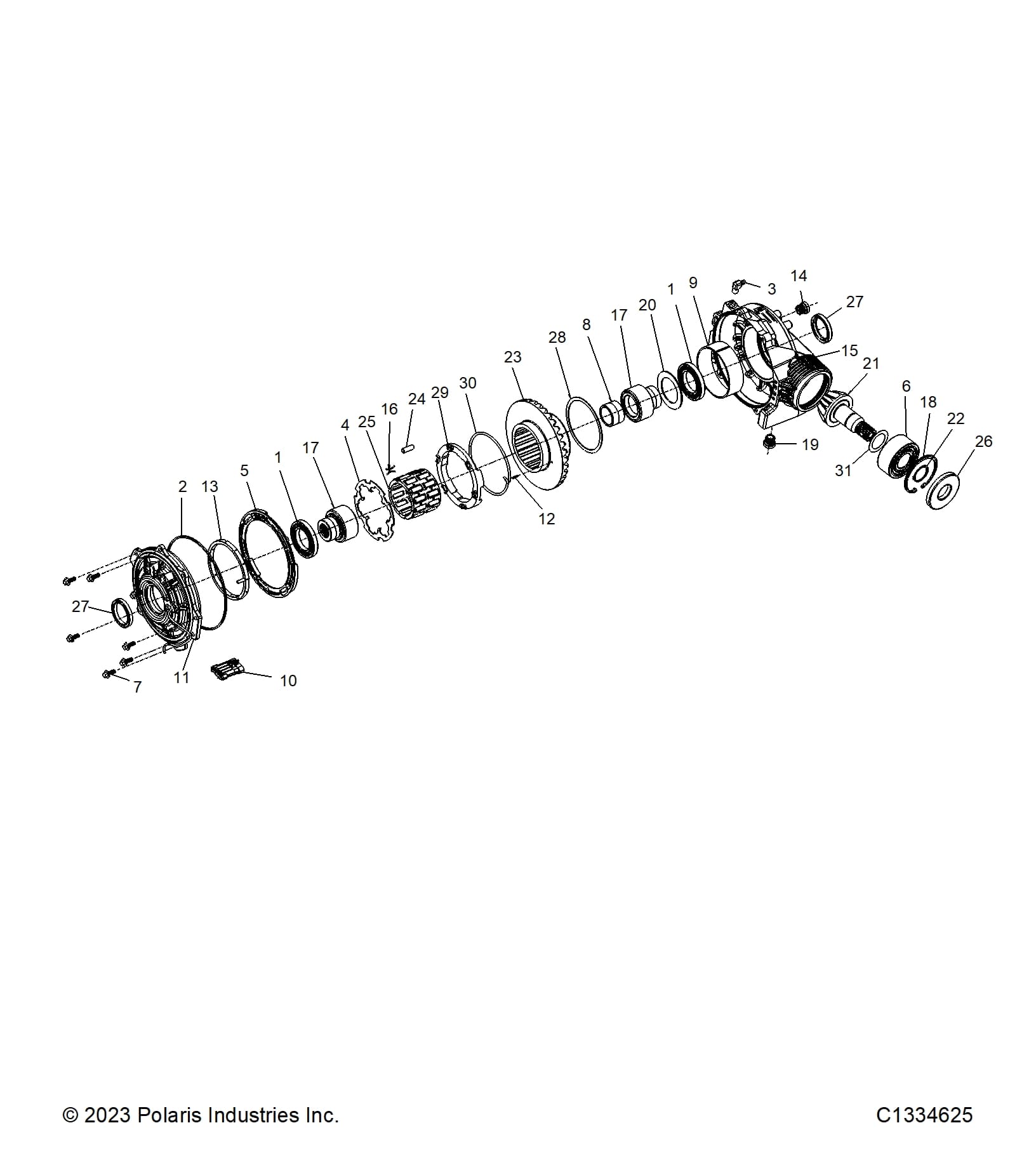

DRIVE TRAIN, FRONT GEARCASE
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 244327
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 48 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1334625 | ASM-GEARCASE,FRONT [INCL. ALL] [TO 04/15/2026] | 1 | Price TBD | Out of stock | |
| - | 1337481 | ASM-GEARCASE,FRONT [INCL. ALL] [FROM 04/15/2026] | 1 | Price TBD | Out of stock | |
| - | 1337481 | ASM-GEARCASE,FRONT [INCL. ALL] [FROM 04/15/2026] | 1 | Price TBD | Out of stock | |
| - | 3236717 | ASM-COVER OUTPUT [INCLUDES 2,5,10,11,13 & QTY 2 OF 27] | 1 | Price TBD | Out of stock | |
| - | 3236649 | ASM., OUTPUT HUB [INCLUDES QTY OF 2 OF 1,8,17,20] | 1 | Price TBD | Out of stock | |
| - | 3235483 | COVER-FASTNERS [INCLUDES 7] | 1 | Price TBD | Out of stock | |
| - | 3236719 | K-SEAL REPAIR [INCLUDES 2,26 & QTY 2 OF 27] | 1 | Price TBD | Out of stock | |
| - | 3236048 | PLATE-4WD ARMATURE [INCLUDES 4] | 1 | Price TBD | Out of stock | |
| - | 3236214 | BEARING, PINION [INCLUDES QTY 2 OF 1, & 6] | 1 | Price TBD | Out of stock | |
| - | 3235486 | CAGE ROLLERS | 24 | Price TBD | Out of stock | |
| - | 3239819 | ASM-ROLL CAGE [INCLUDES 16 & 25] | 1 | Price TBD | Out of stock | |
| - | 3236652 | ASM-GEARCASE [INCLUDES 3,9,14,15,19,27] | 1 | Price TBD | Out of stock | |
| - | 2203738 | KIT-PLUG,DRAIN [INCLUDES 19] | 1 | Price TBD | Out of stock | |
| - | 2203739 | KIT-PLUG,FILL [INCLUDES 14] | 1 | Price TBD | Out of stock | |
| - | 3236749 | ASM-GEAR HOUSING & PINION [INCLUDES 6,12,18,21-23,31] | 1 | Price TBD | Out of stock | |
| - | 3235490 | TORSION SPRING & RETAINER [INCLUDES 29 & 30] | 1 | Price TBD | Out of stock | |
| - | 3234437 | SPACER-RING GEAR [INCLUDES 28] | 1 | Price TBD | Out of stock | |
| 1 | ------- | 16008 BRG | 2 | Price TBD | Out of stock | |
| 2 | ------- | 165S SQ O-RING BUNA-N 70 DURO | 1 | Price TBD | Out of stock | |
| 3 | ------- | 90 DEGREE BARBED HOSE FITTING | 1 | Price TBD | Out of stock | |
| 4 | ------- | ARMATURE PLATE | 1 | Price TBD | Out of stock | |
| 5 | ------- | BACKLASH SPACER | 1 | Price TBD | Out of stock | |
| 6 | ------- | BEARING, DOUBLE ROW 5306 | 1 | Price TBD | Out of stock | |
| 7 | ------- | BOLT M6X1X16 | 7 | Price TBD | Out of stock | |
| 8 | ------- | BUSHING | 1 | Price TBD | Out of stock | |
| 9 | ------- | BUSHING, DU | 1 | Price TBD | Out of stock | |
| 10 | ------- | CONNECTOR ASSEMBLY | 1 | Price TBD | Out of stock | |
| 11 | ------- | COVER, MACHINING | 1 | Price TBD | Out of stock | |
| 12 | ------- | DRIV-LOK WELD STUD | 1 | Price TBD | Out of stock | |
| 13 | ------- | ENCAPSULATED COIL | 1 | Price TBD | Out of stock | |
| 14 | ------- | FILL PLUG | 1 | Price TBD | Out of stock | |
| 15 | ------- | GEARCASE MACHINING | 1 | Price TBD | Out of stock | |
| 16 | ------- | SPRING H-CLIP | 24 | Price TBD | Out of stock | |
| 17 | ------- | HUB ASSMEBLY, 22T | 2 | Price TBD | Out of stock | |
| 18 | ------- | INTERNAL RR VHO-281 | 1 | Price TBD | Out of stock | |
| 19 | ------- | MAGNETIC DRAIN PLUG | 1 | Price TBD | Out of stock | |
| 20 | ------- | NYLON SPACER | 1 | Price TBD | Out of stock | |
| 21 | ------- | PINION MACHINING | 1 | Price TBD | Out of stock | |
| 22 | ------- | RETAINER RING VSH-119 | 1 | Price TBD | Out of stock | |
| 23 | ------- | RING GEAR MACHINING | 1 | Price TBD | Out of stock | |
| 24 | ------- | ROLL | 24 | Price TBD | Out of stock | |
| 25 | ------- | ROLL CAGE MACHINING | 1 | Price TBD | Out of stock | |
| 26 | ------- | SEAL OIL 30X72X8 MM | 1 | Price TBD | Out of stock | |
| 27 | ------- | SEAL OIL CUSTON, 40X52X7 MM | 2 | Price TBD | Out of stock | |
| 28 | ------- | SPACER, GEAR | 1 | Price TBD | Out of stock | |
| 29 | ------- | SPRING RETAINER ASSEMBLY | 1 | Price TBD | Out of stock | |
| 30 | ------- | TORSION SPRING | 1 | Price TBD | Out of stock | |
| 31 | ------- | SHIM | 1 | Price TBD | Out of stock |
