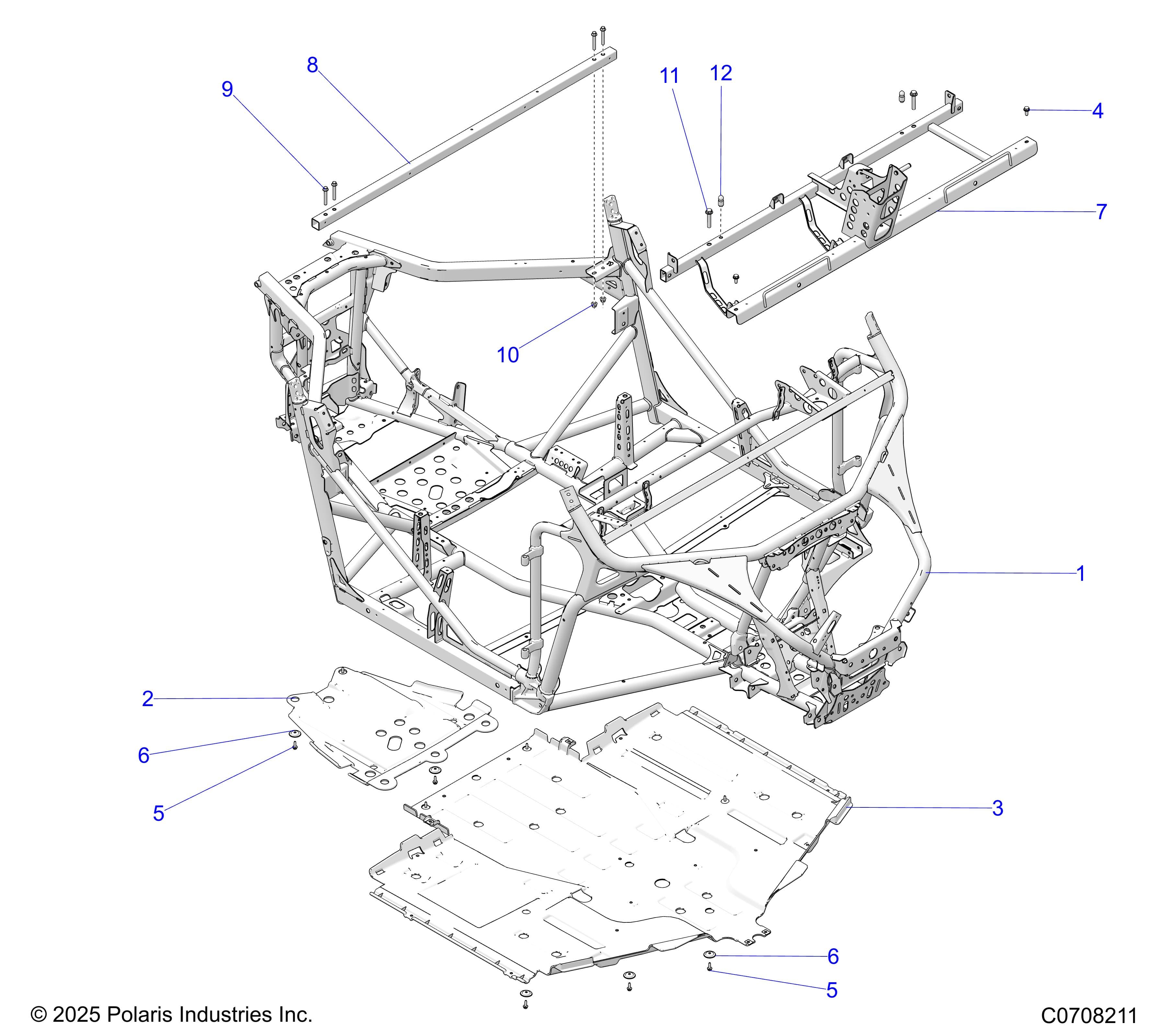

Polaris•Schematic assembly
CHASSIS, MAIN FRAME AND SKID PLATES
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP 1000 PREMIUM Assembly ID: 244665
Vehicle Compatibility
- 2026 Polaris GENERAL XP 1000 PREMIUM
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2213067 | K-FRAME,CHASSIS,GENERAL,BLK | 1 | $4,459.99 | In stock | |
| 2 | 5456433-070 | PLATE-SKID,REAR,BLK | 1 | Price TBD | Out of stock | |
| 3 | 5465903-070 | PLATE,SKID GE,2P,BLK | 1 | $209.99 | In stock | |
| 4 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | Price TBD | Out of stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 9 | Price TBD | Out of stock | |
| 6 | 7556065 | WASHER-SKID PLATE | 9 | Price TBD | Out of stock | |
| 7 | 1029842-329 | WELD-SEAT BASE,E-COAT [INCLUDES 12] | 1 | $419.99 | In stock | |
| 8 | 1029761 | ASM-TUBE,TOP FRAME | 1 | $114.99 | In stock | |
| 9 | 7517281 | SCR-M8X1.25X55,HX/FL-Y | 4 | Price TBD | Out of stock | |
| 10 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | Price TBD | Out of stock | |
| 11 | 7528402 | SCR-HH-M12X1.75X60 10.9 ZTC | 2 | Price TBD | Out of stock | |
| 12 | 5632848 | LATCH, PLUNGER, SEAT | 2 | Price TBD | Out of stock |
