Polaris•Schematic assembly

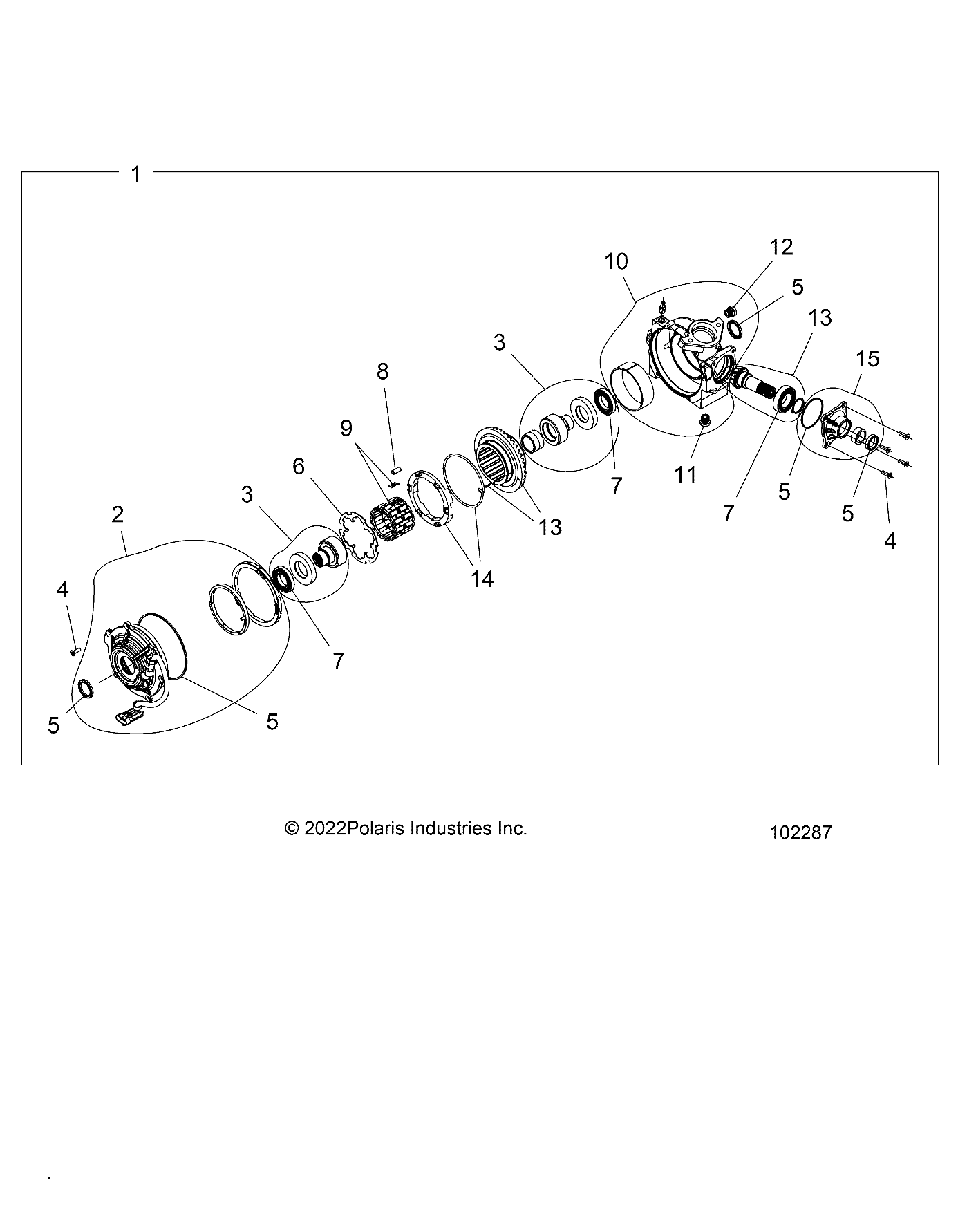

DRIVE TRAIN, FRONT GEARCASE INTERNALS - A26SVA85A4 (102287)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER 850 48" R02 - A26SVA85A4 Assembly ID: 244693
Vehicle Compatibility
- 2026 Polaris SCRAMBLER 850 48" R02 - A26SVA85A4
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337106 | ASM-GEARCASE,FRONT [INCL. ALL][TO 5/22/2026] | 1 | $2,099.99 | In stock | |
| 1 | 1337617 | ASM-GEARCASE,FRONT [INCL. ALL][FRM 5/22/2026] | 1 | Price TBD | Out of stock | |
| 2 | 3236667 | ASM., COVER OUTPUT [INCL. O-RING, SEAL, PIN, COVER, SPACER, COIL, CLIPS, 4WD COIL, WIRING] | 1 | $639.99 | In stock | |
| 3 | 3236675 | KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS] | 1 | $519.99 | In stock | |
| 4 | 3235433 | COVER, FASTENERS [INCL. QTY 10 SCREWS] | 1 | $44.99 | In stock | |
| 5 | 3236671 | KIT, SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS] | 1 | $94.99 | In stock | |
| 6 | 3236048 | PLATE-4WD ARMATURE | 1 | Price TBD | Out of stock | |
| 7 | 3236306 | BEARINGS [INCL. ALL BEARINGS] | 1 | $104.99 | In stock | |
| 8 | 3235624 | K-CLUTCH ROLLS [INCL. SET OF 24] | 1 | Price TBD | Out of stock | |
| 9 | 3235625 | ASM-ROLL CAGE [INCL. CAGE, QTY 24 CLIPS] | 1 | $214.99 | In stock | |
| 10 | 3236680 | ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT] | 1 | $899.99 | In stock | |
| 11 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock | |
| 12 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 13 | 3236305 | ASM-GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR][TO 5/22/2026] | 1 | Price TBD | Out of stock | |
| 13 | 3239382 | ASM., GEAR HOUSING AND PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR][FRM 5/22/2026] | 1 | $859.99 | In stock | |
| 13 | 3236305 | ASM-GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR][TO 5/22/2026] | 1 | Price TBD | Out of stock | |
| 13 | 3239382 | ASM., GEAR HOUSING AND PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR][FRM 5/22/2026] | 1 | $859.99 | In stock | |
| 14 | 3235712 | KIT-TORSION,SPRING AND RETAINER | 1 | Price TBD | Out of stock | |
| 15 | 3236143 | ASM., COVER INPUT [INCL. O-RING, COVER, BUSHING, SEAL] | 1 | $129.99 | In stock |
