Polaris•Schematic assembly

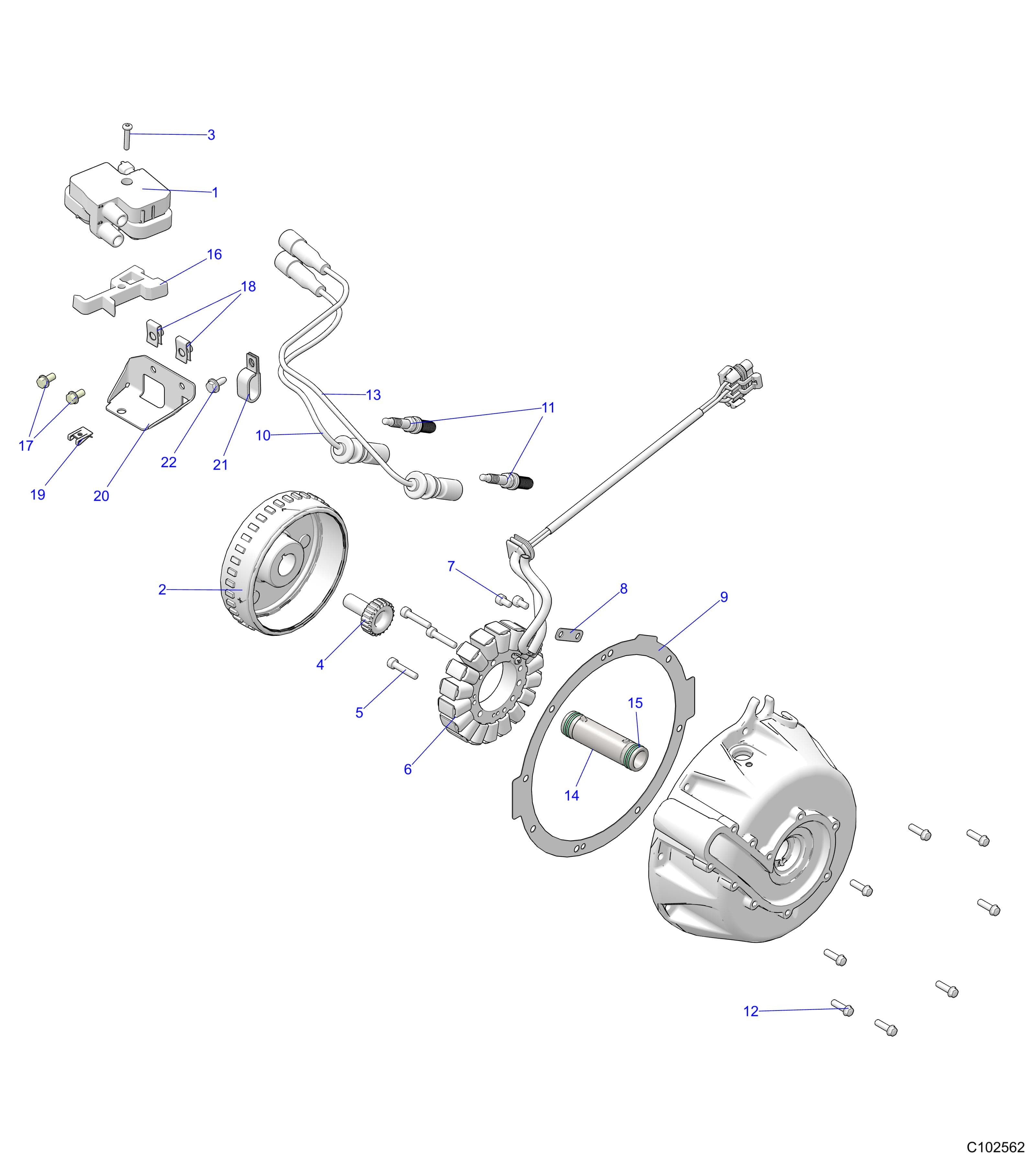

ELECTRICAL, IGNITION SYSTEM - A26SVA85A4 (C102562)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER 850 48" R02 - A26SVA85A4 Assembly ID: 244707
Vehicle Compatibility
- 2026 Polaris SCRAMBLER 850 48" R02 - A26SVA85A4
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 2 | 4080575 | FLYWHEEL [TO 8/30/2023][FRM 9/1/2026][TO 4/2/2027] | 1 | $369.99 | In stock | |
| 2 | 4015703 | FLYWHEEL [FRM 8/30/2023][TO 9/1/2026][FRM 4/2/2027] | 1 | $369.99 | Out of stock | |
| 3 | 7517566 | SCR-#10X1 1/2 TX PN PLASTITE-B | 1 | $4.99 | In stock | |
| 4 | 5140078 | BOLT, WATER PUMP DRIVE, LH | 1 | $39.99 | In stock | |
| 5 | 7527858 | SCR-M6X1.0X30,HX/SOC/CP-Y/D | 3 | $6.99 | In stock | |
| 6 | 4080574 | STATOR,560W [TO 8/30/2023][FRM 9/1/2026] | 1 | $589.99 | In stock | |
| 6 | 4014406 | STATOR,560W [FRM 8/30/2023][TO 9/1/2026] | 1 | Price TBD | Out of stock | |
| 7 | 7527859 | SCR-M6X1.0X10,SHCS | 2 | $5.99 | In stock | |
| 8 | 5271377 | RETAINER-STATOR WIRE | 1 | $7.99 | In stock | |
| 9 | 5813680 | GASKET, STATOR COVER | 1 | $49.99 | In stock | |
| 10 | 4013328 | WIRE, SPARK PLUG, PTO | 1 | $74.99 | In stock | |
| 11 | 3022438 | SPARKPLUG-12MM REA6MC | 2 | $7.99 | In stock | |
| 12 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 8 | Price TBD | Out of stock | |
| 13 | 4014007 | WIRE, SPARK PLUG, MAG | 1 | $69.99 | In stock | |
| 14 | 5453707 | TUBE, WATER TRANSFER [INCL. O-RINGS] | 1 | $104.99 | In stock | |
| 15 | 5412955 | O-RING,.864X1.00X.07 | 4 | $8.99 | In stock | |
| 16 | 5436577 | SPACER-COIL MOUNT | 1 | Price TBD | Out of stock | |
| 17 | 7515133 | SCR-HXFL-1/4-20X0.5 GR5.1 ZY3 | 2 | $4.99 | In stock | |
| 18 | 7670096 | NUT-CHIMNEY 1/4-20,GR-5 | 2 | $1.99 | In stock | |
| 19 | 7670157 | NUT, U-TYPE, AB | 1 | $4.99 | In stock | |
| 20 | 5256478-329 | BRACKET, COIL MOUNT, BLACK | 1 | $59.99 | In stock | |
| 21 | 7081364 | CLAMP-DBL TUBE,.562 VNLCOATED | 1 | $1.74 | In stock | |
| 22 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 1 | Price TBD | Out of stock |
