Schematic diagram
Polaris•Schematic assembly

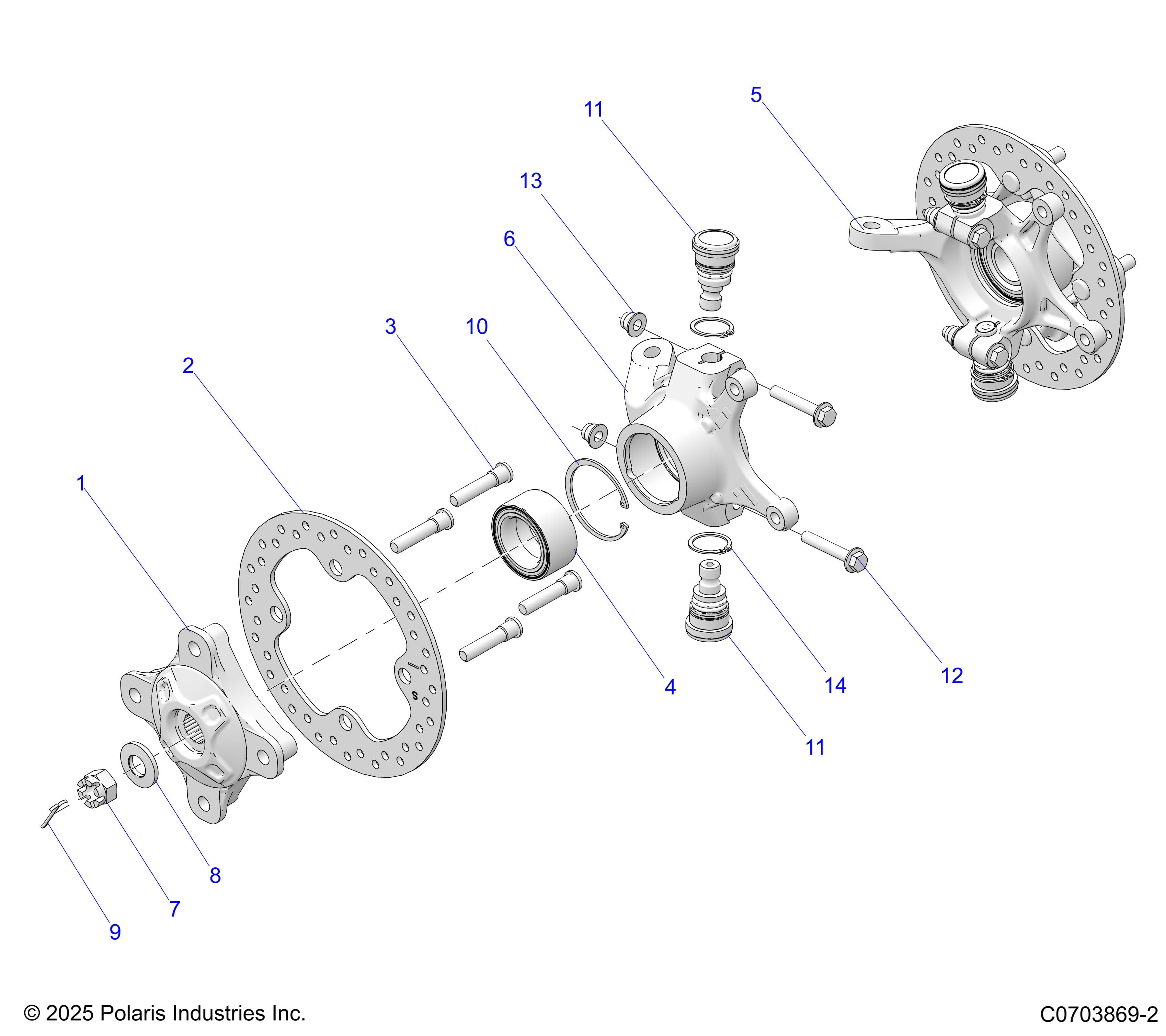

SUSPENSION, FRONT HUB
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP 1000 PREMIUM Assembly ID: 244827
Vehicle Compatibility
- 2026 Polaris GENERAL XP 1000 PREMIUM
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5142020-067 | HUB-WHEEL,MACH,BLK | 2 | $144.99 | In stock | |
| 2 | 5257196 | DISC, BRAKE | 2 | Price TBD | Out of stock | |
| 3 | 7519792 | STUD-WHEEL,M12-1.5 | 8 | Price TBD | Out of stock | |
| 4 | 3514924 | BEARING-BALL,SEALED,44X72X33.1 | 2 | Price TBD | Out of stock | |
| 4 | 3515090 | BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL] | 2 | Price TBD | Out of stock | |
| 5 | 5142214 | KNUCKLE-FRONT,LH(MACH) | 1 | $214.99 | In stock | |
| 6 | 5142215 | KNUCKLE-FRONT,RH(MACH) | 1 | $214.99 | In stock | |
| 7 | 7547337 | NUT-M18X1.5,CASTLE,ZINC/YELLOW | 2 | Price TBD | Out of stock | |
| 8 | 7557134 | WSHR-AXLE,M18,42X4.5 | 2 | Price TBD | Out of stock | |
| 9 | 7661404 | PIN-COTTER 1/8X1 1/2-Y | 2 | Price TBD | Out of stock | |
| 10 | 7710780 | RING-RETAINING,2.835,INTERNAL | 2 | Price TBD | Out of stock | |
| 11 | 7082892 | BALL-JOINT,HARDENED,HI-MISALGN | 4 | Price TBD | Out of stock | |
| 12 | 7519306 | SCR-HXFL-M10X1.25X60 10.9 ZOD | 4 | Price TBD | Out of stock | |
| 13 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 14 | 7710716 | RING-RTG,DSH-33ST | 4 | Price TBD | Out of stock |
