Polaris•Schematic assembly

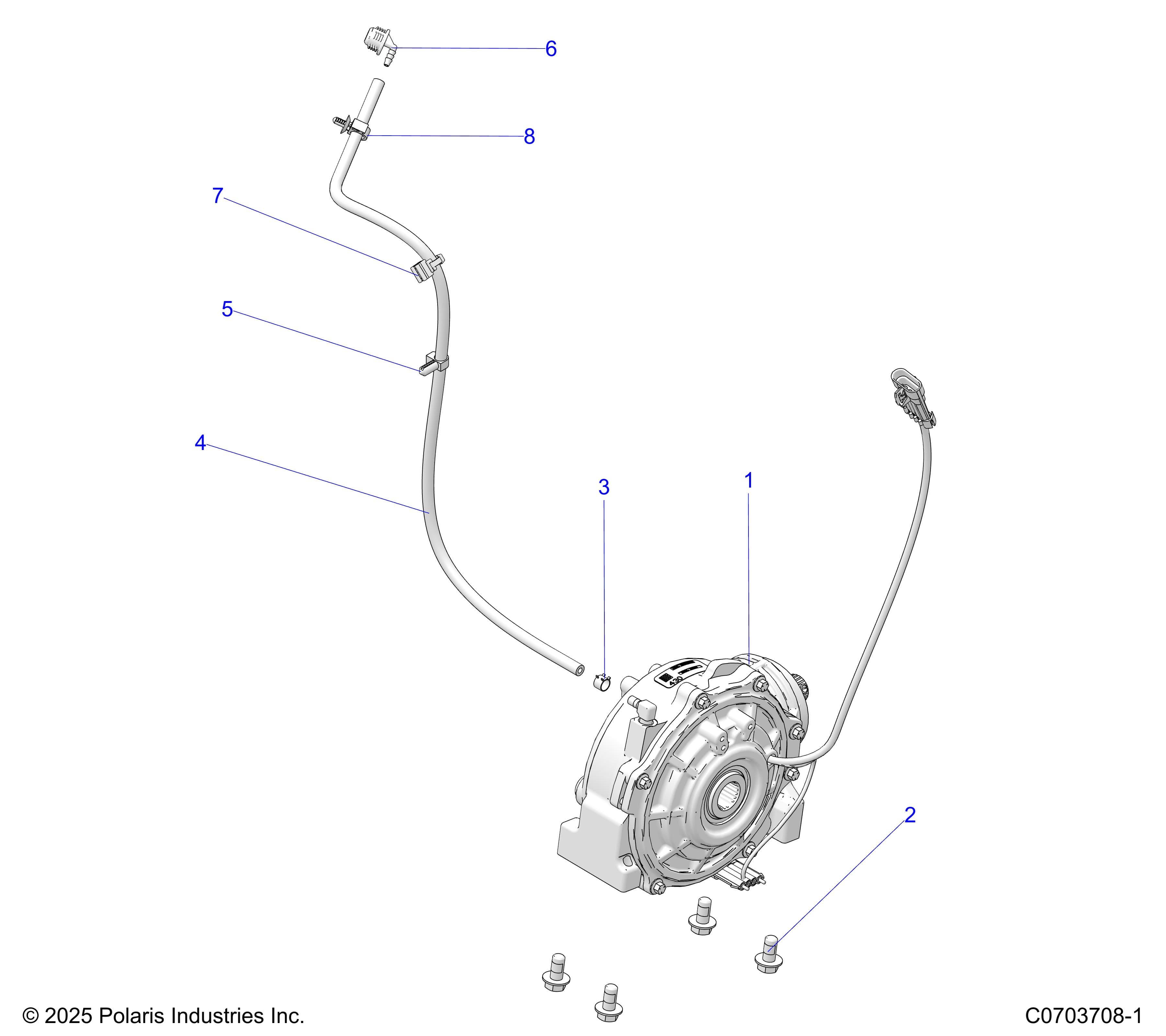

DRIVE TRAIN, FRONT GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 245417
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 PREMIUM
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1334626 | ASM-GEARCASE,FRONT,28T [TO 5/7/2026] [FOR INTERNALS SEE DRIVETRAIN, FRONT GEARCASE] | 1 | $2,099.99 | In stock | |
| 1 | 1337482 | ASM-GEARCASE,FRONT,28T [FROM 5/7/2026] [FOR INTERNALS SEE DRIVETRAIN, FRONT GEARCASE] | 1 | $2,004.99 | Out of stock Est. Oct 18, 2026 | |
| 2 | 7518460 | SCR-HXFL-M10X1.5X20 8.8 Z NYL | 4 | Price TBD | Out of stock | |
| 3 | 7080307 | CLAMP-HOSE, (LARGE GREEN) | 1 | Price TBD | Out of stock | |
| 4 | 8450153-67 | LINE-BOOST,3/16 ID,85 CM | 1 | Price TBD | Out of stock | |
| 5 | 7670102 | CLIP-SILENCER BOX-C,98 INDY | 2 | Price TBD | Out of stock | |
| 6 | 5454069 | FITTING-VENT LINE,90 | 1 | Price TBD | Out of stock | |
| 7 | 7081890 | CLIP-EDGE,HARNESS | 1 | Price TBD | Out of stock | |
| 8 | 7670116 | CLIP, ROUTING, .472 B.D., HINGED | 1 | Price TBD | Out of stock |
