Polaris•Schematic assembly

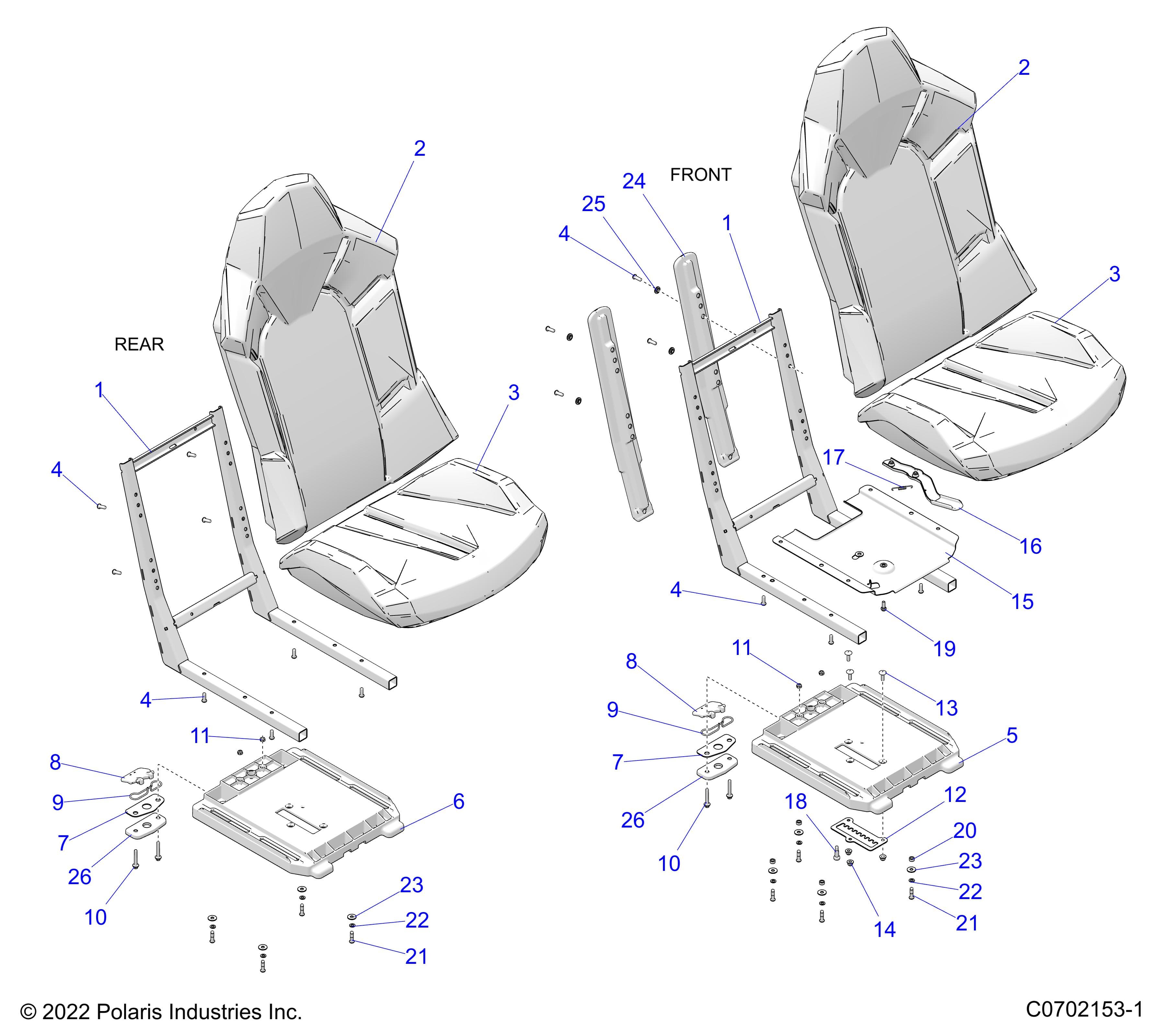

BODY, SEAT ASM. AND SLIDER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 SPORT Assembly ID: 245546
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 SPORT
Checkout Note
Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1022256 | WELD-SEAT FRAME | 4 | $239.99 | In stock | |
| 2 | 2693407 | ASM-SEAT BACK,BLK/TTM,BLK ST | 4 | $379.99 | In stock | |
| 3 | 2693409 | ASM-SEAT BTM,BLK/TTM,BLK ST | 4 | $244.99 | Out of stock Est. Aug 20, 2026 | |
| 4 | 7515177 | SCREW-1/4-20x3/4 BH TRX, GR5-Z | 32 | Price TBD | Out of stock | |
| 5 | 2685704 | ASM-BASE,SEAT SLIDER [INCLUDES 6-12 & 26, QTY 3 OF 14] | 2 | $259.99 | In stock | |
| 6 | 2634889 | ASM-BASE,SEAT [INCLUDES 6-12 & 26, QTY 3 OF 14] | 2 | Price TBD | Out of stock | |
| 7 | 5258647 | PLATE-LATCH,SEAT | 2 | Price TBD | Out of stock | |
| 8 | 5437121 | HANDLE-SEAT BASE LATCH | 2 | Price TBD | Out of stock | |
| 9 | 7082653 | SPRING-LATCH,SEAT | 2 | Price TBD | Out of stock | |
| 10 | 7517610 | SCREW-M6X1.00X40-HX/FL-YD | 4 | Price TBD | Out of stock | |
| 11 | 7546703 | NUT-6MM X 1 NYLOK-Z | 4 | Price TBD | Out of stock | |
| 12 | 5270634 | BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE | 2 | Price TBD | Out of stock | |
| 13 | 7518994 | SCR-RHCARM6X1.0X20 8.8 ZOD | 6 | Price TBD | Out of stock | |
| 14 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 0 | Price TBD | Out of stock | |
| 15 | 5257974 | BRACKET, SEAT SLIDER MOUNTING PLATE | 2 | $79.99 | In stock | |
| 16 | 5260733 | BRACKET, SEAT SLIDER LEVER | 2 | Price TBD | Out of stock | |
| 17 | 7044099 | SPRING | 2 | Price TBD | Out of stock | |
| 18 | 7518786 | SCR-SH-M6X1.0X9.5 12.9 ZY3 | 2 | Price TBD | Out of stock | |
| 19 | 7518897 | BOLT, SHOULDER | 2 | Price TBD | Out of stock | |
| 20 | 5340145 | TUBE, SPACER | 4 | Price TBD | Out of stock | |
| 21 | 7519296 | SCR-1/4-20X1-BH-TRX-GR5-Z | 16 | Price TBD | Out of stock | |
| 22 | 7552801 | WASHER-1/4 SPRING LOCK-Y | 16 | Price TBD | Out of stock | |
| 23 | 7555859 | WASHER-FL .281X.750X.062-Y | 16 | Price TBD | Out of stock | |
| 24 | 5415501-070 | PAD-SEAT BASE,RZR,MP | 4 | $49.99 | In stock | |
| 25 | 5140211 | SLEEVE-SHLD,15.5OD,10 OD,6.5ID | 8 | $4.99 | In stock | |
| 26 | 5450510-070 | LATCH, COVER PLATE, BLACK | 2 | Price TBD | Out of stock |
