Polaris•Schematic assembly
CHASSIS, WINCH
Product Description

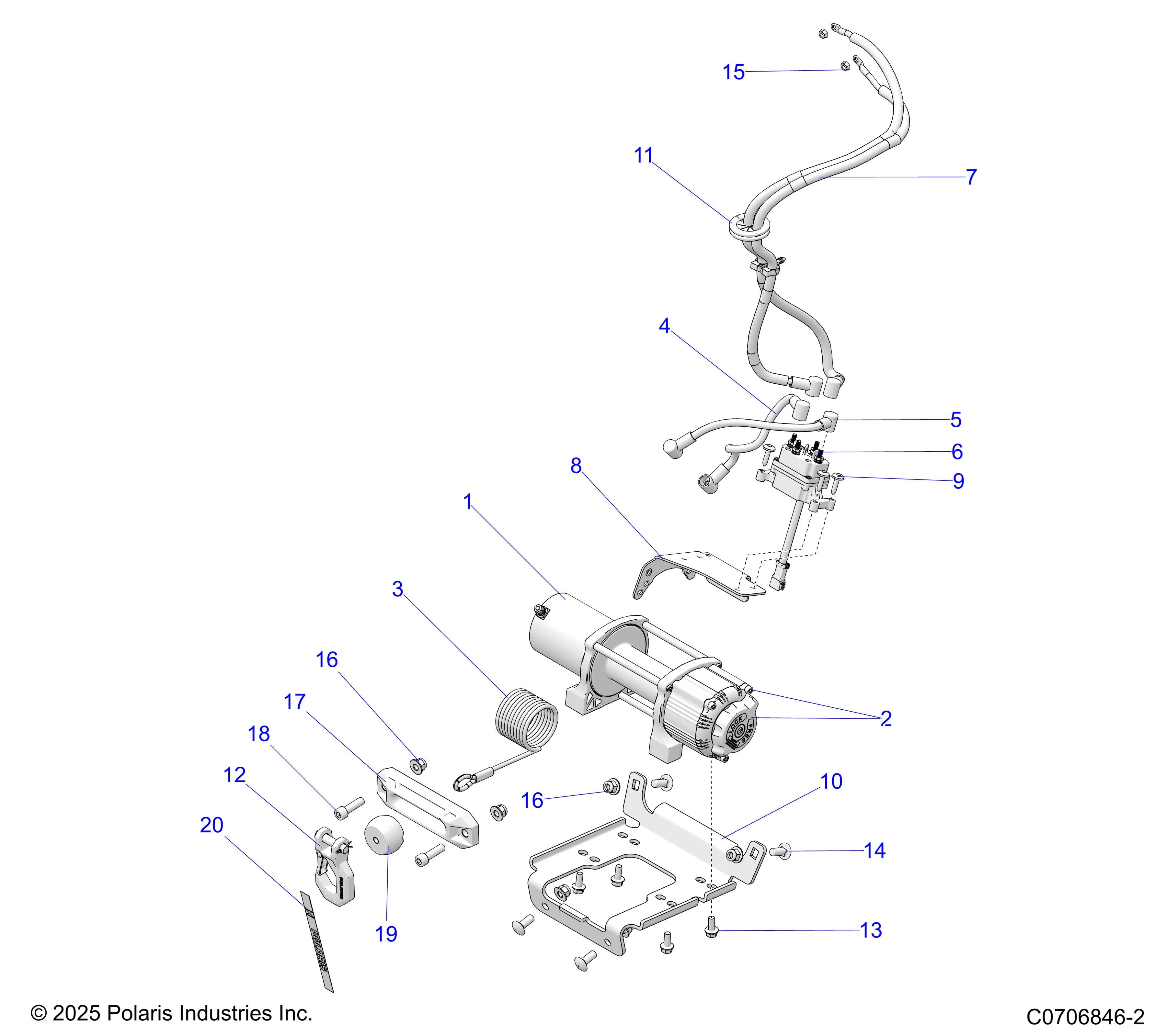

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 SPORT Assembly ID: 245549
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 SPORT
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2638572 | ASM-WINCH,4.5,PROD,HWSE,XOVR [INCLUDES 2-9] | 1 | $559.99 | In stock | |
| 1 | 2636470 | WINCH-POLARIS,4.5,BTMSPL 45DEG [INCLUDES 2] | 1 | $319.99 | In stock | |
| 2 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 3 | 2879187 | KIT-ROPE,WINCH,45,UHMW | 1 | Price TBD | Out of stock | |
| 4 | 4013468-255WC | CABLE-WINCH,YELLOW,6 GA,235MM | 1 | $44.99 | In stock | |
| 5 | 4013469-270WC | CABLE-WINCH,BLUE,270MM W/CONV | 1 | $44.99 | In stock | |
| 6 | 4015600 | CONTACTOR-INT,UVRSL | 1 | Price TBD | Out of stock | |
| 7 | 4018231 | CABLE ASM-CONTACTOR-PULSE,XOVR | 1 | $79.99 | In stock | |
| 8 | 5263587 | BRKT-CONTACTOR,MOUNT,XOVR | 1 | $49.99 | In stock | |
| 9 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | Price TBD | Out of stock | |
| 10 | 5263364-458 | BRKT-WINCHMOUNT GNRL,BLK | 1 | $144.99 | In stock | |
| 11 | 5415049 | GROMMET-ELEC,CAB,SLIT | 1 | Price TBD | Out of stock | |
| 12 | 5910706 | HOOK-LATCH,WINCH,ULT,LRG [INCLUDES 20] | 1 | Price TBD | Out of stock | |
| 13 | 7519133 | SCREW-HXFL-M8X1.25X20 8.8 ZOD P3 | 4 | Price TBD | Out of stock | |
| 14 | 7519372 | SCR-RHCAR-M10X1.5X25 8.8 ZOD | 4 | $2.99 | In stock | |
| 15 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | Price TBD | Out of stock | |
| 16 | 7547423 | NUT-M10X1.5 HFN NYLOC ZOD | 6 | Price TBD | Out of stock | |
| 17 | 5143230 | FAIRLEAD,HWS,MACH,ULT,WIDE [TO 9/16/2025] | 1 | $64.99 | In stock | |
| 17 | 5145859 | FAIRLEAD,HWS,ULT,WIDE,BLK [FROM 9/16/2025] | 1 | $49.99 | In stock | |
| 18 | 7519959 | SCR-SH-M10X1.5X35 8.8 ZPB | 2 | $1.99 | In stock | |
| 19 | 5418451 | BUMPER-JOUNCE,WINCH,NLWC | 1 | Price TBD | Out of stock | |
| 20 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock |
