Schematic diagram
Polaris•Schematic assembly
BODY, WINCH
Product Description

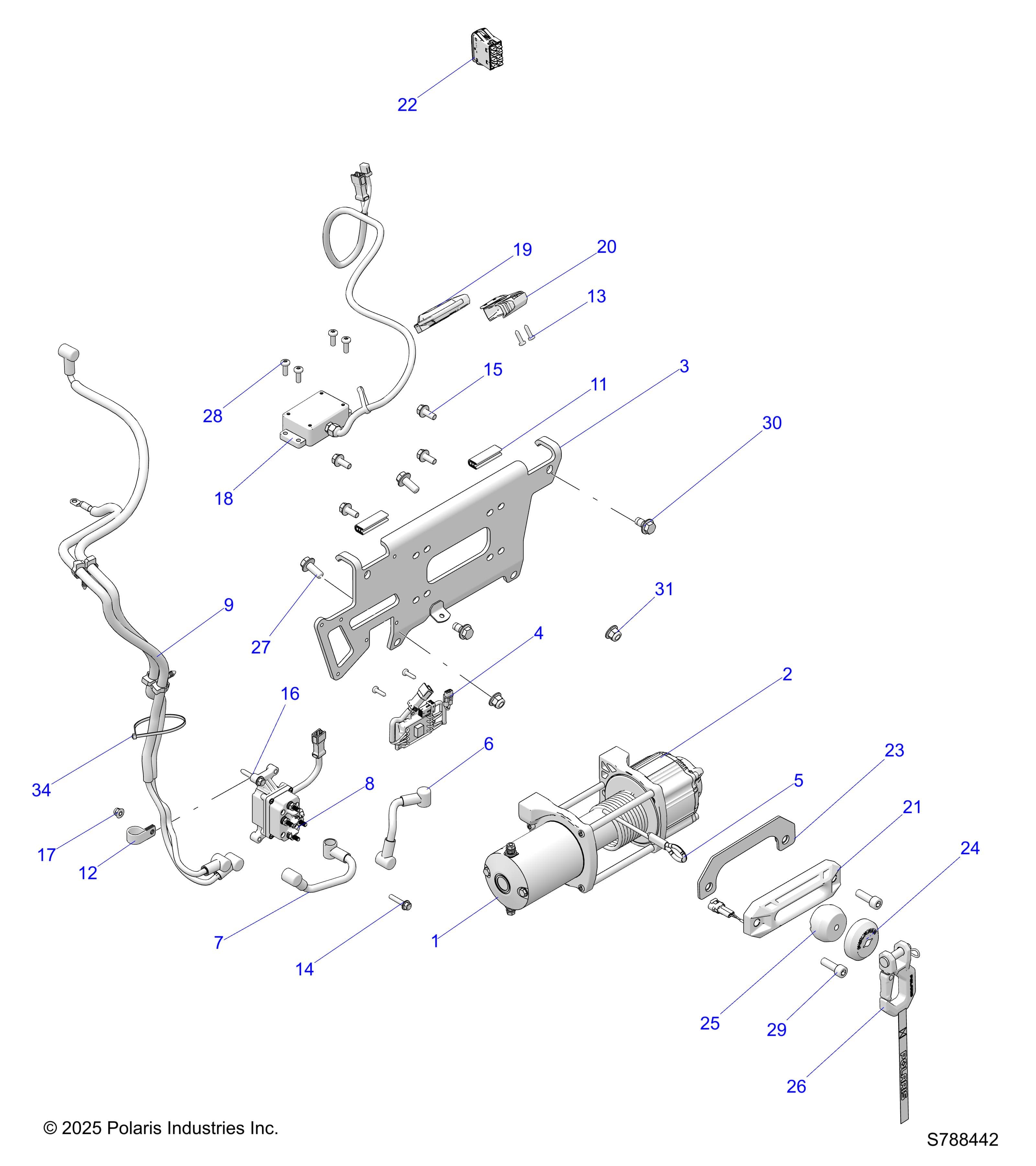

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 245698
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 9923644 | MANUAL-WINCH GUIDE [REFERENCE ONLY] | 1 | $14.99 | In stock | |
| - | 9941786 | INSTR-BATT WARNING, WINCH RMTE [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 1 | 2639351 | ASM-WINCH,45 HD,ASTP,PRD RGZ [INCLUDES 2-17 & DECAL] [TO 08/22/2025] | 1 | $949.99 | In stock | |
| 1 | 2891771 | K-WINCH,45 HD,TH,PRD,RGZ [INCLUDES 1-9,11-18,24-27 & 30-32] [FROM 8/22/2025] | 1 | $999.99 | In stock | |
| 1 | 2640389 | ASM-WINCH,45 HD,ASTP,TH,PR RGZ | 1 | $974.99 | Out of stock Est. Aug 14, 2026 | |
| 2 | 2207828 | WINCH-POL45,TOP,CW45D [TO 08/22/2025] | 1 | $584.99 | In stock | |
| 2 | 2212703 | WINCH-POL,45HD,TH,T,B-45 [FROM 08/22/2025] | 1 | $249.99 | In stock | |
| 2 | 2205265 | K-SVC, HANDLE, HD WINCH [FROM 08/22/2025] | 1 | $10.99 | NLA | |
| 2 | 2212758 | SVC-WINCH MOTOR,45HDT [FROM 08/22/2025] | 1 | $89.99 | In stock | |
| 3 | 1029762 | ASM-WINCH MOUNT3,ZS | 1 | $84.99 | In stock | |
| 4 | 2416576 | CONTROLLER,WINCH,ASTP,RGZ | 1 | $59.99 | In stock | |
| 5 | 2879187 | KIT-ROPE,WINCH,45,UHMW | 1 | $144.99 | In stock | |
| 6 | 4013468-120 | CABLE-WINCH,YELLOW 6 GA,120MM | 1 | $17.99 | In stock | |
| 7 | 4013469-95 | CABLE-WINCH,BLUE 6 GA,95MM | 1 | $34.99 | In stock | |
| 8 | 4015600 | CONTACTOR-INT,UVRSL | 1 | $99.99 | In stock | |
| 9 | 4080876 | ASM-HNSS,WINCH,PWR,TRM BLK,RGZ | 1 | $94.99 | In stock | |
| 11 | 5815773 | TRIM-EDGE,U,PVC,METAL,6-8MM | 2 | $2.99 | In stock | |
| 12 | 7081235 | CLAMP-.751D,RUBBER COATED,HD | 1 | $3.99 | In stock | |
| 13 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M [TO 8/22/2025] | 4 | $1.49 | In stock | |
| 14 | 7518713 | SCR-HXWHD,THDFRM,M6X30,0600202 | 1 | $6.99 | In stock | |
| 15 | 7519133 | SCREW-HXFL-M8X1.25X20 8.8 ZOD P3 | 4 | $1.99 | In stock | |
| 16 | 7528158 | SCR-TFHFL-M6X1.0X35,ZFB | 1 | $0.99 | In stock | |
| 17 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | $1.99 | In stock | |
| 18 | 2414796 | ASM-WINCH,REMOTE,WIRELESS [INCLUDES 19 & 20] | 1 | Price TBD | Out of stock | |
| 19 | 7082137 | FILTER, AIR INTAKE | 1 | $39.99 | In stock | |
| 20 | 5454269 | HOLDER-REMOTE,WIRELESS,WINCH | 1 | $10.99 | In stock | |
| 21 | 2415055 | JUMPER-WINCH,SWITCH,SEALED | 1 | $59.99 | In stock | |
| 21 | 2637781 | ASM-FAIRLEAD,HWS,MACH,ULT,WIDE [TO 08/22/2025] | 1 | $134.99 | In stock | |
| 21 | 2640557 | ASM-FAIRLEAD,HWS,BLK,ULT,WIDE [FROM 08/22/2025] | 1 | $134.99 | In stock | |
| 22 | 4080274-26 | SWITCH-WINCH,UNSEALED | 1 | $144.99 | In stock | |
| 23 | 5271082 | BRKT-MOUNT,FRLD BKR,45M10 [TO 08/22/2025] | 1 | $12.99 | NLA | |
| 24 | 5415787 | STOP-MAGNET,BMPR,V2 [TO 08/22/2025] | 1 | $64.99 | In stock | |
| 25 | 5418451 | BUMPER-JOUNCE,WINCH,NLWC [TO 08/22/2025] | 1 | $29.99 | In stock | |
| 26 | 5910706 | HOOK-LATCH,WINCH,ULT,LRG [INCLUDES STRAP] | 1 | $39.99 | In stock | |
| 26 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | $4.99 | In stock | |
| 27 | 7519071 | SCR-M10X1.5X25 8.8 HXFL ZOD [TO 08/22/2025] | 2 | $5.99 | In stock | |
| 28 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE [TO 08/22/2025] | 4 | $4.99 | In stock | |
| 29 | 7519844 | SCREW-SH-M10X1.5X30 8.8 ZPB [TO 08/22/2025] | 2 | $5.99 | In stock | |
| 30 | 7519905 | SCR-HXFL-M10X1.5X20 10.9 RIE P [TO 08/22/2025] | 2 | $2.99 | In stock | |
| 31 | 7547423 | NUT-M10X1.5 HFN NYLOC ZOD [TO 08/22/2025] | 2 | $4.99 | In stock |
