Polaris•Schematic assembly

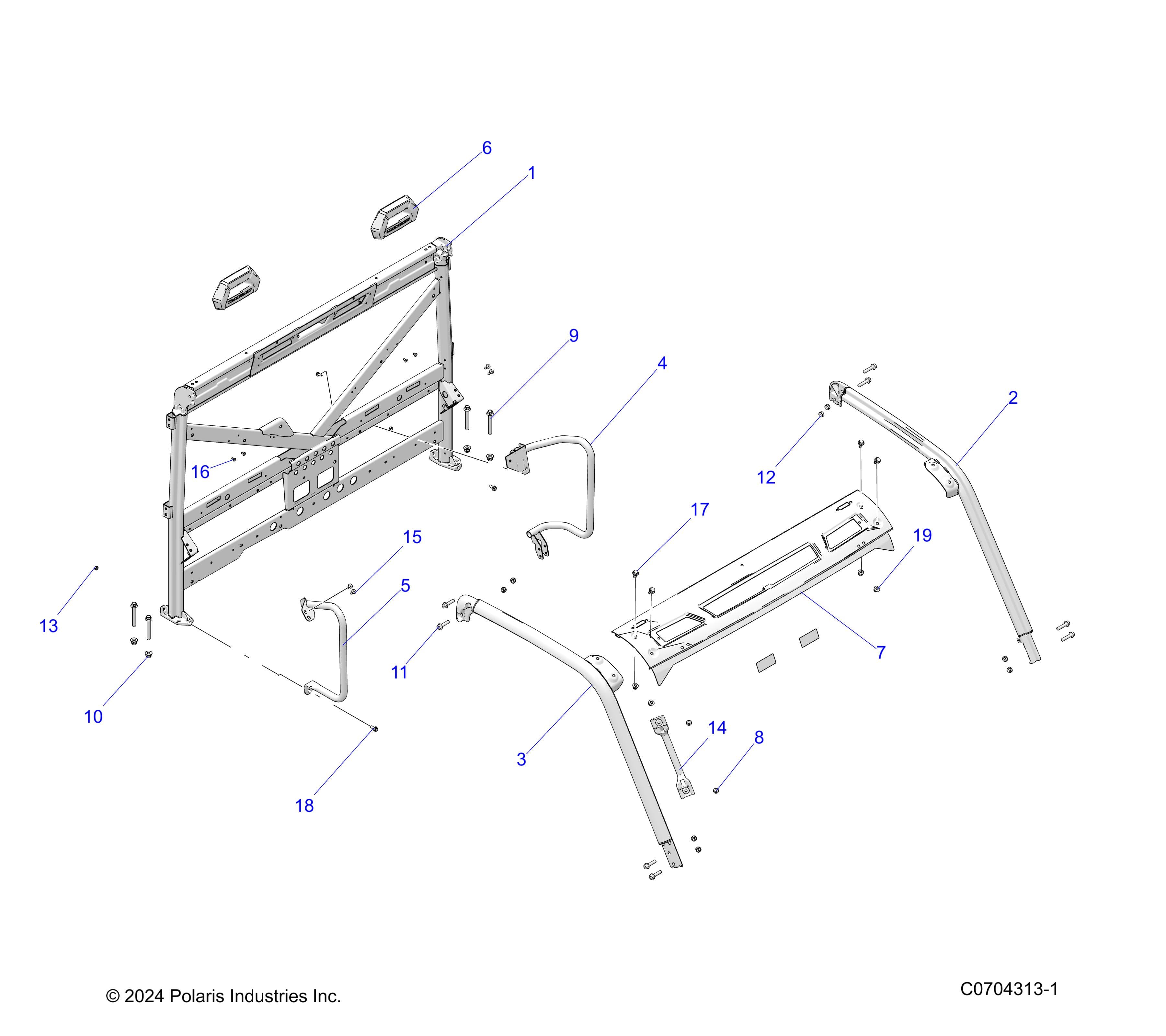

CHASSIS, CAB FRAME - R26RRE99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C0704313-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP PREMIUM Assembly ID: 245707
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP PREMIUM
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029158-458 | WELD-CAB FRAME,REAR,M.BLK | 1 | $1,299.99 | Out of stock Est. Aug 6, 2026 | |
| 2 | 1022910-458 | WELD-CAB FRAME,FRT,LH,M.BLK | 1 | $459.99 | In stock | |
| 3 | 1022911-458 | WELD-CAB FRAME,FRT,RH,M.BLK | 1 | $459.99 | In stock | |
| 4 | 1029531-458 | WELD-BOLSTER,SEAT,M.BLK | 1 | $69.99 | In stock | |
| 5 | 1024804-458 | WELD-BOLSTER,RH, M.BLK | 1 | $84.99 | In stock | |
| 6 | 5456311-070 | HEADREST-BASIC,RGR,BLK | 2 | $69.99 | In stock | |
| 7 | 2208969 | K-PLATE-WINDSHLD MNT,UPR,RGR [INCLUDES DECALS] | 1 | $239.99 | In stock | |
| 8 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | $2.99 | In stock | |
| 9 | 7521334-90 | SCR-HXFL-M12X1.75X9010.9 ZFB | 4 | $2.99 | Out of stock Est. Jul 20, 2026 | |
| 10 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 4 | $3.99 | In stock | |
| 11 | 7521333-45 | SCR-HXFL-M10X1.5X45 10.9 ZFB | 8 | $3.99 | In stock | |
| 12 | 7547746 | NUT-HEX-M10X1.5 10 ZB3 NYL | 8 | $2.99 | In stock | |
| 13 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 2 | $2.99 | In stock | |
| 14 | 5450844-070 | HANDLE-GRAB,ROPS,BLK | 1 | $39.99 | In stock | |
| 15 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | $4.99 | In stock | |
| 16 | 7621460 | RIVET-POP 3/16 (.376-.500) AL-LFB | 4 | $1.49 | In stock | |
| 17 | 7519905 | SCR-HXFL-M10X1.5X20 10.9 RIE P | 4 | $2.99 | In stock | |
| 18 | 7519133 | SCREW-HXFL-M8X1.25X20 8.8 ZOD P3 | 2 | $1.99 | In stock | |
| 19 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | $2.99 | In stock |
