Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS CHASSIS
Product Description

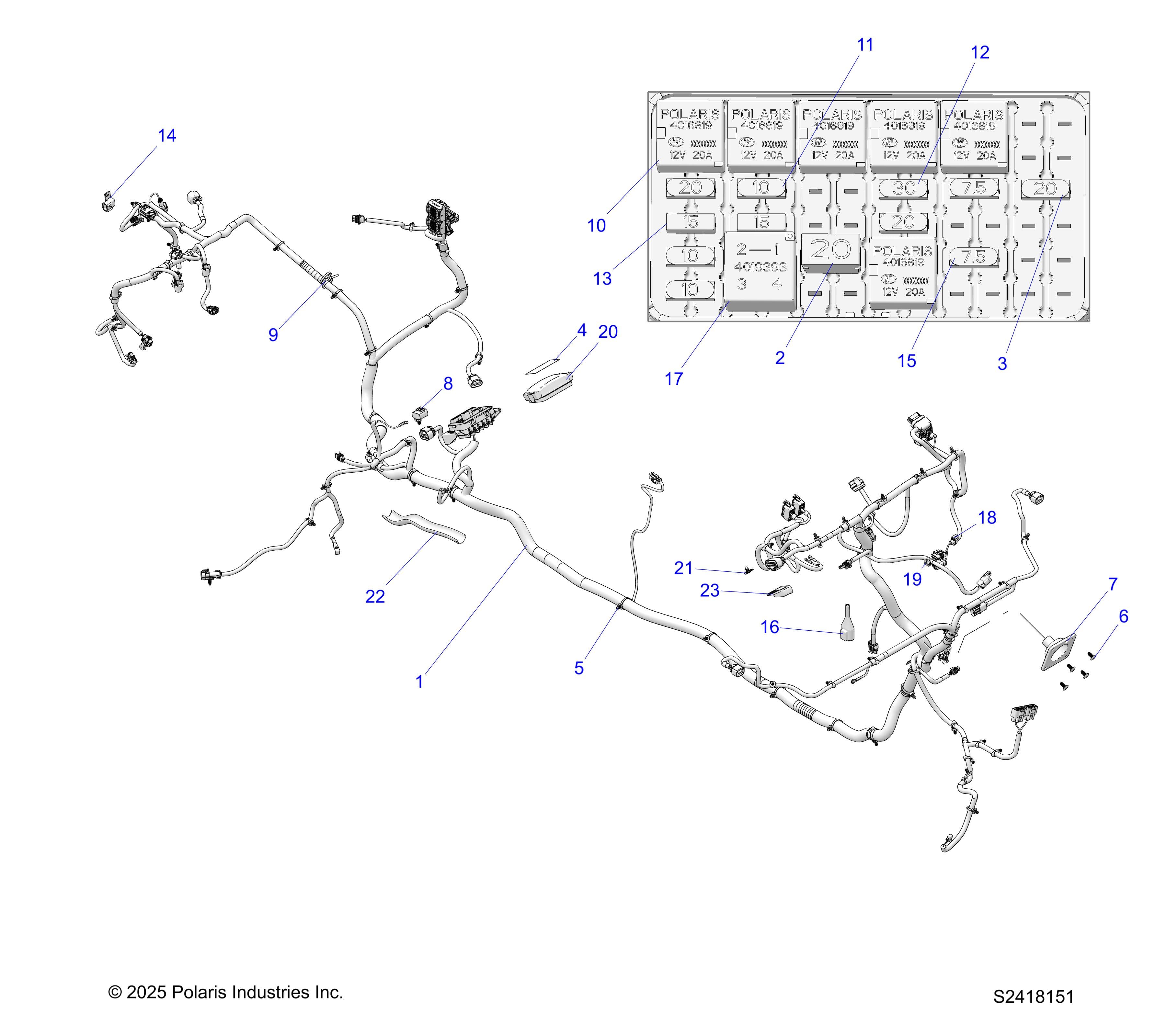

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP PREMIUM Assembly ID: 245722
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP PREMIUM
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418151-01 | HARN-CHASSIS,XP,BASE [INCLUDES ALL] | 1 | $1,349.99 | In stock | |
| 2 | 4080366 | BREAKER, CIRCUIT, ETA,20 AMP, MINI | 1 | $10.99 | Out of stock Est. Aug 21, 2026 | |
| 3 | 2434017 | FUSE-PARK,20 AMP | 3 | Price TBD | Out of stock | |
| 4 | 7301186 | DECAL-RELAY/FUSE BLOCK,BASE | 1 | Price TBD | Out of stock | |
| 5 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 47 | $5.99 | In stock | |
| 6 | 7670090 | CLIP-FIR TREE,DART,6.35MM | 5 | $1.49 | In stock | |
| 7 | 5814560 | GROMMET - 65MM, W/FLANGE, BLK | 1 | $15.99 | In stock | |
| 8 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | $10.99 | In stock | |
| 9 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | $5.99 | In stock | |
| 10 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 7 | $44.99 | In stock | |
| 11 | 2434016 | FUSE-IGNITION,10 AMP | 3 | $6.99 | In stock | |
| 12 | 2434015 | FUSE-MAIN,30 AMP | 1 | $9.99 | In stock | |
| 13 | 2410280 | FUSE-MINI BLADE,15 AMP | 2 | Price TBD | Out of stock | |
| 14 | 4012260 | COVER-FUSEHOLDER | 1 | $12.99 | In stock | |
| 15 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 2 | $13.99 | Out of stock Est. Sep 14, 2026 | |
| 16 | 4080238 | THROTTLE-CON BOOT | 1 | $11.99 | In stock | |
| 17 | 4019393 | SSR-4PIN | 1 | $134.99 | In stock | |
| 18 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 2 | $5.99 | In stock | |
| 19 | 7082400 | CLIP-EDGE,1-3MM THICKNESS | 1 | $6.99 | In stock | |
| 20 | 4014047 | COVER,FUSEBOX,72WAY | 1 | $89.99 | In stock | |
| 21 | 7082134 | CLIP-FIR,HOLE6.35MM | 1 | $4.99 | In stock | |
| 22 | 5466438 | TRAY-ROUTING,HARNESS | 1 | $5.99 | In stock | |
| 23 | 4018655 | CAP-EVAP CONNECTOR | 1 | $4.99 | In stock |
