Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS, COMPONENTS - R26RRE99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C733259)
Product Description

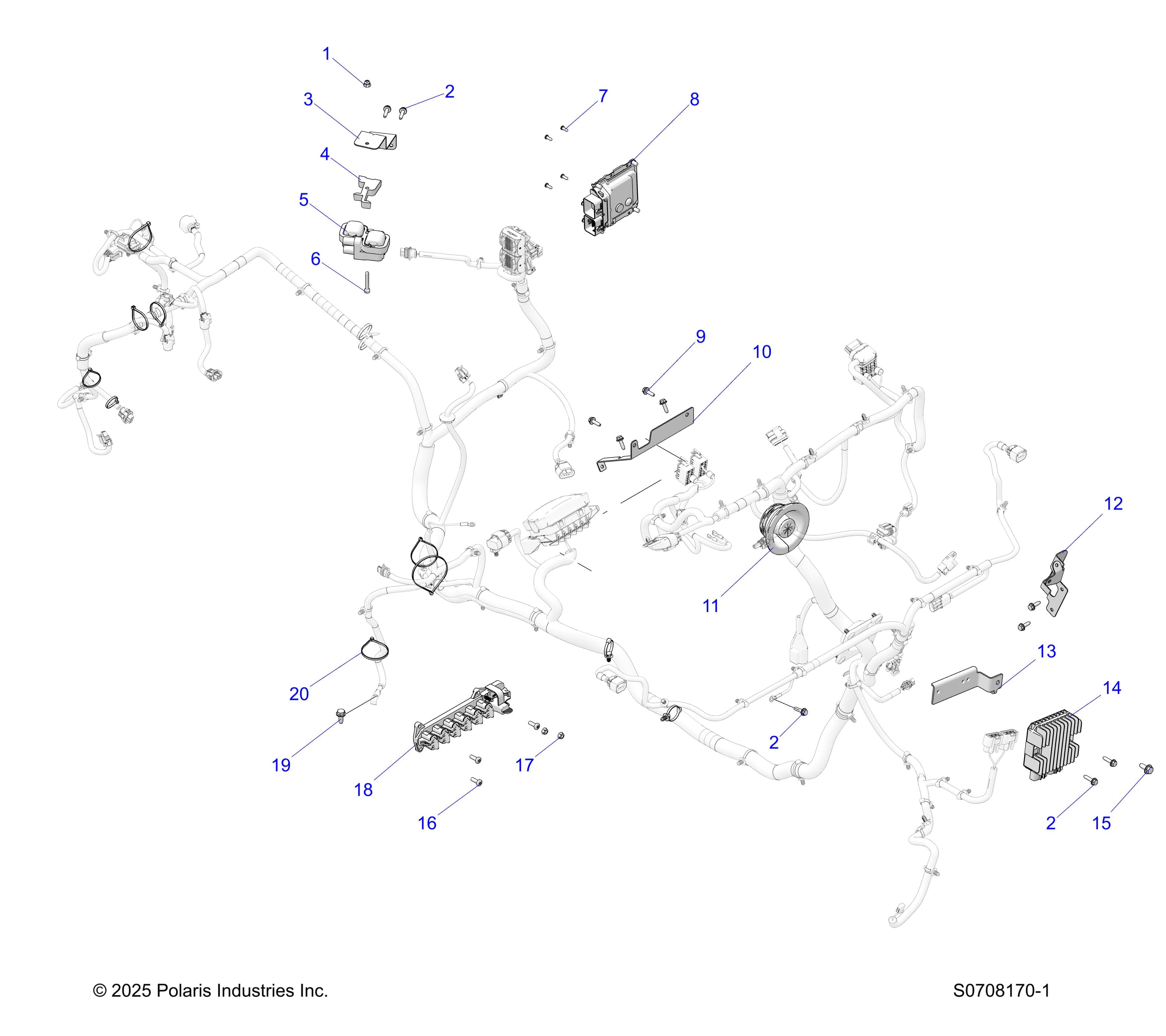

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP PREMIUM Assembly ID: 245724
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP PREMIUM
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | $1.99 | In stock | |
| 2 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 5 | $4.99 | In stock | |
| 3 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 4 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 5 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 6 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 8 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | $869.99 | In stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 10 | $1.49 | In stock | |
| 10 | 5271547-329 | BRKT-FUSE HOLDER,BLK | 1 | $17.99 | In stock | |
| 11 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 12 | 5268050-329 | BRKT-ROUTING,BLK [TO 02/06/2026] | 1 | $34.99 | In stock | |
| 12 | 5276381-329 | BRKT-ROUTING,ECOAT [FROM 02/06/2026] | 1 | Price TBD | Out of stock | |
| 13 | 5274251 | BRKT-MOUNT,REGULATOR,LH | 1 | $10.99 | In stock | |
| 14 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | $164.99 | In stock | |
| 15 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 4 | $2.99 | In stock | |
| 16 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock | |
| 17 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | $4.99 | In stock | |
| 18 | 4016007 | BLOCK-TERMINAL,3 POST,TALL | 1 | $44.99 | Out of stock Est. Aug 21, 2026 | |
| 18 | 4013891 | FUSE-CARTRIDGE,40A | 1 | $44.99 | In stock | |
| 18 | 5454284 | COVER,TB,JCASE | 1 | $39.99 | In stock | |
| 18 | 5454283 | PLUG,ACCY TB | 6 | $54.99 | In stock | |
| 19 | 7520764 | SCR-HXFL-M8X1.25X20 TAP ZY3 | 1 | $5.99 | In stock | |
| 20 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 8 | $2.99 | In stock |
