Schematic diagram
Polaris•Schematic assembly
FUEL SYSTEM
Product Description

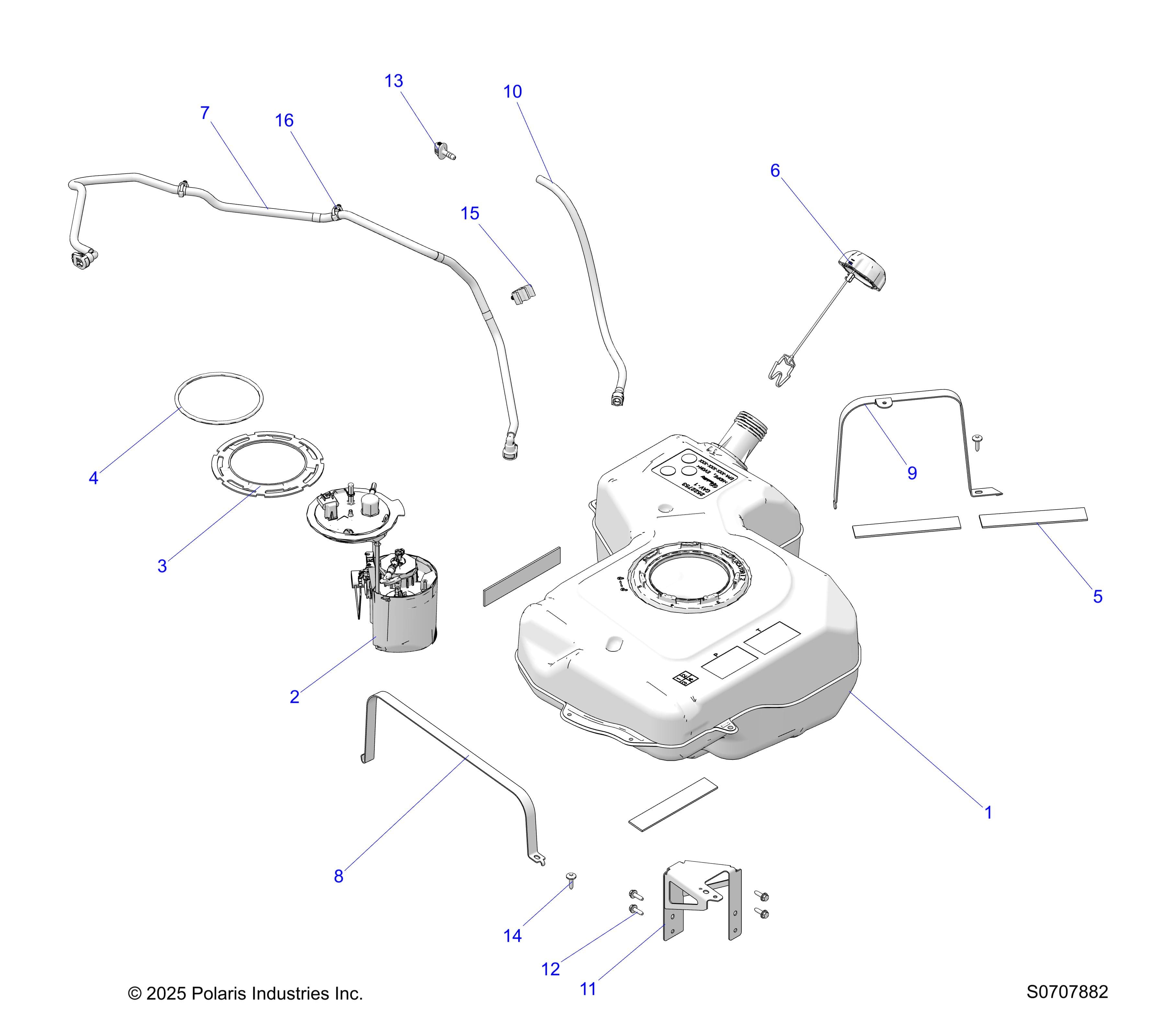

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 245741
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2522753 | ASM-FUEL TANK [INCLUDES 2-4] | 1 | $1,199.99 | In stock | |
| 2 | 2212115 | K-FUEL PUMP,RANGER [INCLUDES 3 & 4] | 1 | $379.99 | Out of stock Est. Aug 6, 2026 | |
| 3 | 5272603 | RING-LOCK,FUEL PUMP | 1 | $24.99 | In stock | |
| 4 | 5417910 | O-RING,FUEL PUMP | 1 | $7.99 | In stock | |
| 5 | 5810290 | PAD-BATTERY | 4 | $8.99 | In stock | |
| 6 | 2521937 | CAP-GAS TANK,TETHER | 1 | $39.99 | In stock | |
| 7 | 2522755 | ASM-FUEL LINE | 1 | $84.99 | In stock | |
| 8 | 5276147 | BRKT-TANK,STRAP,INSIDE,GALV | 1 | $14.99 | In stock | |
| 9 | 5276148 | BRKT-TANK,STRAP,OUTSIDE,GALV | 1 | $14.99 | In stock | |
| 10 | 2522003 | ASM-LINE,TANK TO VENT [NON EVAP UNITS ONLY] | 1 | $59.99 | In stock | |
| 11 | 5269953-329 | BRKT-FUEL TANK,SUPPORT,BLK | 1 | $34.99 | In stock | |
| 12 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | $4.99 | In stock | |
| 13 | 5453465 | FITTING-VENT LINE | 1 | $6.99 | In stock | |
| 14 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | $4.99 | In stock | |
| 15 | 7082454 | CLIP-DOUBLE | 1 | $6.99 | In stock | |
| 16 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 2 | $5.99 | In stock |
