Schematic diagram
Polaris•Schematic assembly

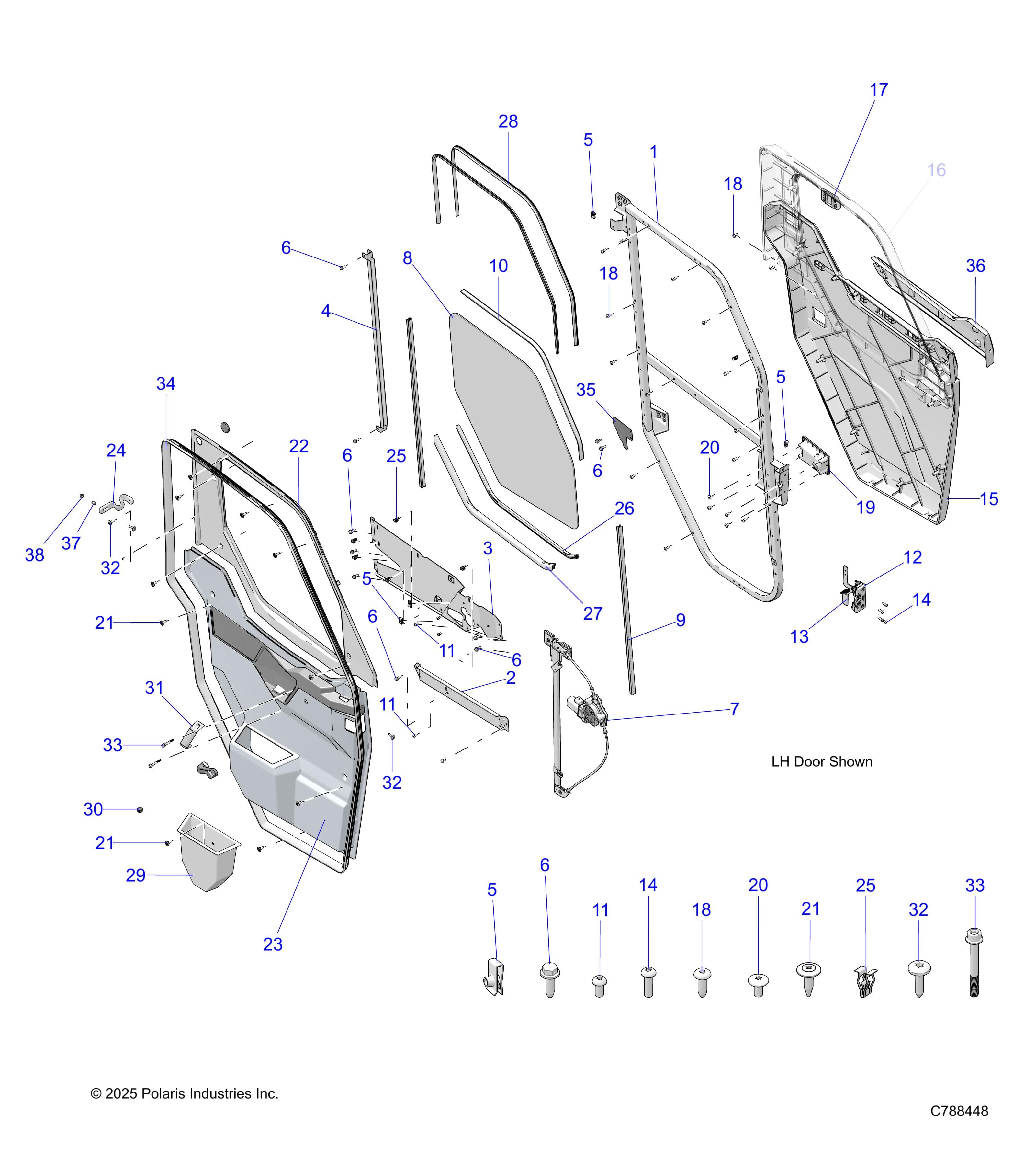

BODY, DOOR, FULL, POWER - R26RRV99AK (C788448)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246166
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 22 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2639234 | ASM-DOOR,FULL,PWR,LH [INCLUDES ALL] | 1 | Price TBD | Out of stock | |
| - | 2639235 | ASM-DOOR,FULL,PWR,RH [INCLUDES ALL] | 1 | Price TBD | Out of stock | |
| 1 | 1028570-329 | WELD-FULL DOOR,LH,ECOAT | 1 | $369.99 | In stock | |
| 1 | 1028571-329 | WELD-FULL DOOR,RH,ECOAT | 1 | $369.99 | In stock | |
| 2 | 5273034-458 | BRKT-REGULATOR,MNT,FR,BK | 1 | $34.99 | In stock | |
| 3 | ------- | WELD-CRANK MOTOR MOUNT,LH,BLK [REFERENCE ONLY] [TO 09/05/2025] | 1 | Price TBD | Out of stock | |
| 3 | 2213219 | K-BRACKET,MOTOR MNT,FRONT,LH [FROM 09/05/2025] | 1 | Price TBD | Out of stock | |
| 3 | ------- | WELD-CRANK MOTOR MOUNT,RH,BLK [REFERENCE ONLY] [TO 09/05/2025] | 1 | Price TBD | Out of stock | |
| 3 | 2213220 | K-BRACKET,MOTOR MNT,FRONT,RH [FROM 09/05/2025] | 1 | Price TBD | Out of stock | |
| 4 | ------- | BRKT-WINDOW,TRACK,BLK | 2 | Price TBD | Out of stock | |
| 5 | 7081305 | CLIP-U SPEED NUT | 10 | $2.49 | In stock | |
| 6 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 20 | $1.49 | In stock | |
| 7 | 2638585 | ASM-REGULATOR,POWER WINDOW,LH | 1 | Price TBD | Out of stock | |
| 7 | 2638586 | ASM-REGULATOR,POWER WINDOW,RH | 1 | Price TBD | Out of stock | |
| 8 | 2207713 | K-HRDWR SVC GLASS,ZS | 2 | $89.99 | In stock | |
| 9 | 2883782 | K-ACCY DOOR SEAL GLASS,L&R,ZS [INCLUDES 9,26-28] | 2 | $74.99 | In stock | |
| 9 | ------- | SEAL-GLASS WINDOW | 1 | Price TBD | Out of stock | |
| 10 | 5510927 | SEAL-DOOR,TOP | 2 | Price TBD | Out of stock | |
| 11 | 7519063 | SCREW-TXBH-M6X1.0X12 8.8 ZPB D20 | 4 | $3.99 | In stock | |
| 12 | 2212908 | K-HDWR,SVC,INNER LATCH [INCL. LH & RH LATCHES] | 1 | $169.99 | In stock | |
| 13 | 2207922 | K-HDWR,SVC,HNDL TOP,ZSC [INCLUDES 2 HANDLES] | 1 | $39.99 | In stock | |
| 14 | 7518616 | BOLT-M6X1.0X20,PH/TX-OLIVE D | 8 | $1.49 | In stock | |
| 15 | 5453995-070 | PANEL-DOOR,LWR,EXT,LH,BLK | 1 | Price TBD | Out of stock | |
| 15 | 5453996-070 | PANEL-DOOR,LWR,EXT,RH,BLK | 1 | Price TBD | Out of stock | |
| 17 | 2207853 | K-HRDWR SVC DOOR HINGE-COV ZSC [INCLUDES 2 HINGE COVERS] | 1 | $39.99 | In stock | |
| 17 | 5454163-070 | HINGE-COVER,BLK | 2 | Price TBD | Out of stock | |
| 18 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 0 | $3.99 | In stock | |
| 19 | 2211602 | K-HDWR,SVC,DOOR,HANDLE,OUT,FR | 1 | $74.99 | In stock | |
| 20 | 7518991 | SCR-M6X1.0X12 8.8 TXPH ZOD P30 | 8 | $5.99 | In stock | |
| 21 | 2207378 | RVT-1/4 X .08-.31,NYLON BLK | 20 | Price TBD | Out of stock | |
| 22 | 5453997-070 | PANEL-DOOR,INT,LH,BLK | 1 | $74.99 | In stock | |
| 22 | 5453998-070 | PANEL-DOOR,INT,RH,BLK | 1 | $74.99 | In stock | |
| 23 | 5459402-070 | PANEL-DOOR,HALF,INT,POW,LH,BLK | 1 | $349.99 | Out of stock Est. Oct 12, 2026 | |
| 23 | 5459403-070 | PANEL-DOOR,HALF,INT,POW,RH,BLK | 1 | $349.99 | Out of stock Est. Oct 12, 2026 | |
| 24 | 5450947 | STRAP-RUBBER,DOOR LIMIT,TTN | 2 | $12.99 | In stock | |
| 25 | 7519806 | CLIP-DASH,TRIM,METAL | 10 | $4.99 | In stock | |
| 26 | ------- | SEAL-FLOCK,WINDOW,FRT,OUTER,LH | 1 | Price TBD | Out of stock | |
| 27 | ------- | SEAL-FLOCK,WINDOW,FRT,OUTER,RH | 1 | Price TBD | Out of stock | |
| 28 | ------- | SEAL-WINDOW | 4 | Price TBD | Out of stock | |
| 29 | 5459660-070 | BOX-STORAGE,BLK | 2 | $16.99 | In stock | |
| 30 | 5459404 | PLUG-DOOR,WINDOW CRANK | 2 | $5.99 | In stock | |
| 31 | 5459167-070 | GRAB HANDLE,LH,BLK | 1 | $18.99 | In stock | |
| 31 | 5459168-070 | GRAB HANDLE,RH,BLK | 1 | $18.99 | In stock | |
| 32 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 6 | $4.99 | In stock | |
| 33 | 7519220 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 4 | $1.99 | In stock | |
| 34 | 2211603 | K-HDWR,SVC,SEAL,DOOR,FRT,LH [TO 09/05/2025] | 1 | $89.99 | In stock | |
| 34 | 2213035 | K-HDWR,SVC,SEAL,DOOR,LH [FROM 09/05/2025] | 1 | $99.99 | Out of stock Est. Nov 6, 2026 | |
| 34 | 2211604 | K-HDWR,SVC,SEAL,DOOR,FRT,RH [TO 09/05/2025] | 1 | $89.99 | In stock | |
| 34 | 2213035 | K-HDWR,SVC,SEAL,DOOR,LH [FROM 09/05/2025] | 1 | $99.99 | Out of stock Est. Nov 6, 2026 | |
| 35 | 5272095-329 | BRKT-PWR,HARNESS,ROUTING,ECOAT | 2 | $34.99 | In stock | |
| 36 | 5454749-942 | PNL-ACCENT,DR,LH,LE,HVY.MTL.GL | 1 | $104.99 | In stock | |
| 36 | 5454750-942 | PNL-ACCENT,DR,RH,LE,HVY.MTL.GL | 1 | $104.99 | In stock | |
| 37 | 5139193 | SPACER-ALUM,M6,DOOR RETNR,TTN | 1 | $15.99 | In stock | |
| 38 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | $1.49 | In stock |
