Polaris•Schematic assembly

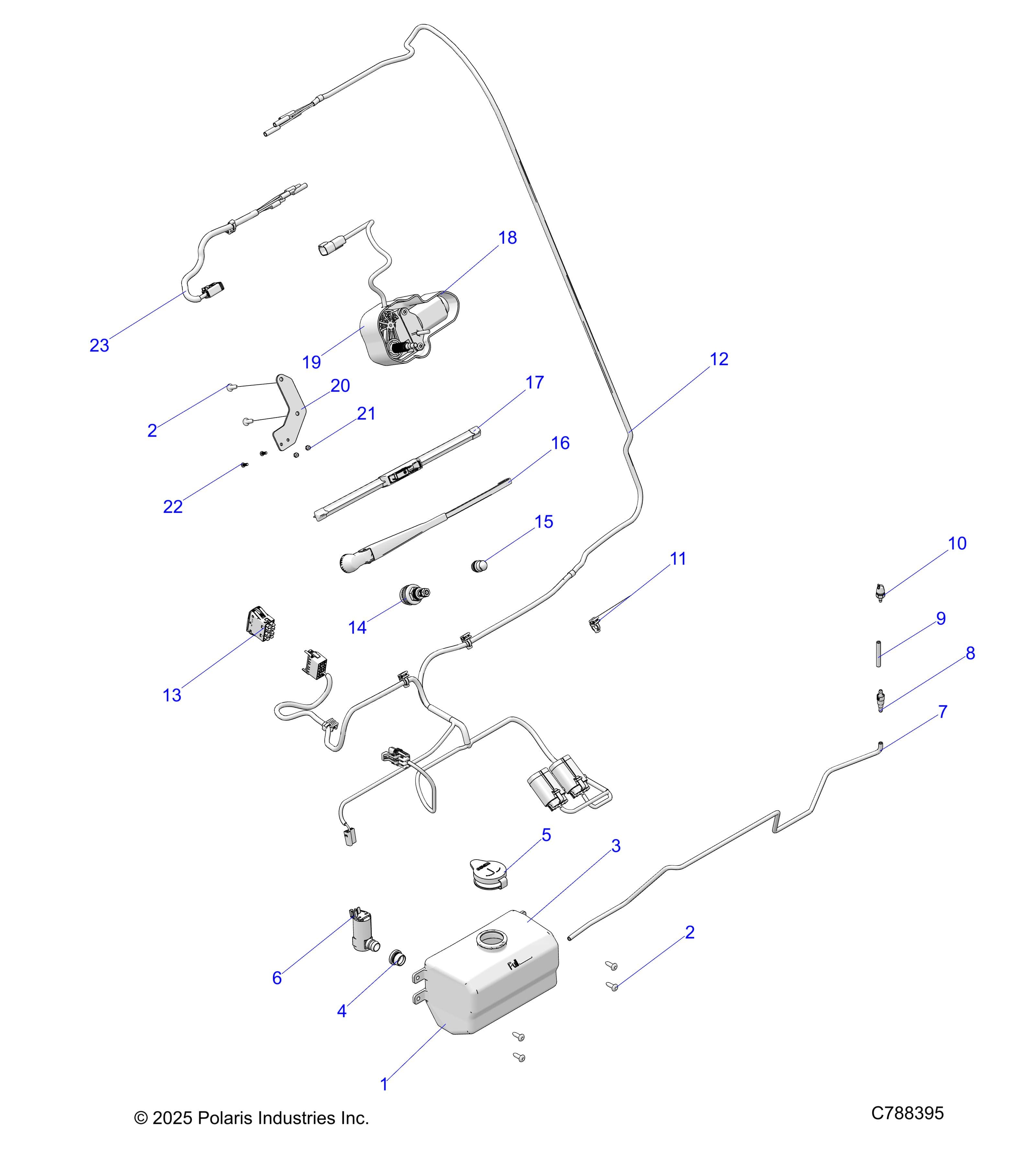

BODY, WATER BOTTLE PUMP ASSEMBLY & WIPER KIT - R26RRV99AK (C788395)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246179
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2205139 | ASM-BOTTLE,WASHER,WSHLD [INCLUDES 3-6] | 1 | $64.99 | Out of stock Est. Jul 21, 2026 | |
| 2 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 3 | 5450700 | BOTTLE-WASHER,WIPER FLUID | 1 | $69.99 | In stock | |
| 4 | 5414883 | GROMMET-PUMP,WSHR FLUID | 1 | $5.99 | In stock | |
| 5 | 5450701 | LID-BOTTLE,WASHER,BRT | 1 | $4.99 | In stock | |
| 6 | 2205140 | PUMP-WASHER,WIPER FLUID | 1 | $15.99 | In stock | |
| 7 | 5418247 | HOSE-WIPER,WSHR FLUID,LONG | 1 | $49.99 | In stock | |
| 8 | 7055609 | VALVE-CHECK | 1 | $12.99 | In stock | |
| 9 | 5418246 | HOSE-WIPER,WSHR FLUID,SHORT | 1 | $11.99 | In stock | |
| 10 | 2637660 | NOZZLE-WIPER,WSHLD,ZS | 1 | $24.99 | Out of stock Est. Jul 27, 2026 | |
| 11 | 7082365 | CLIP-ROUTING,EDGE | 3 | $6.99 | In stock | |
| 12 | 2415856 | HRNS-ACCY,WPER MAIN G2 RGR | 1 | $114.99 | In stock | |
| 13 | 4080274-02 | SWITCH-WASHER,WIPER | 1 | $59.99 | In stock | |
| 14 | 2208225 | K-HRDWR,MAIN SHAFT,WIPER G2 | 1 | $7.99 | In stock | |
| 15 | 2208226 | K-HRDWR,M6,WIPER G2 | 1 | $5.99 | Out of stock Est. Jul 21, 2026 | |
| 16 | 2637636 | ASM-ARM WIPER,WSHLD,G2 RGR | 1 | $29.99 | Out of stock Est. Jul 24, 2026 | |
| 17 | 2638900 | BLADE-WIPER,WSHLD,G2 RGR | 1 | $19.99 | In stock | |
| 18 | 2639007 | MOTOR-WIPER,MIRROR BRKT ASSY [INCLUDES 2 OF 2, 19,20 & 23] | 1 | $249.99 | Out of stock Est. Aug 25, 2026 | |
| 19 | 2637637 | MOTOR-WIPER,WSHLD,G2 RGR | 1 | $269.99 | Out of stock | |
| 20 | 5268630-458 | BRKT-ACCY,MIRROR WIPER,GEN3 BK | 2 | $14.99 | In stock | |
| 21 | 7520162 | SCR-BUTTON,M4X12,BLK,RIE | 2 | $2.99 | In stock | |
| 22 | 7547126 | NUT-NYLOK,M4,0600110 | 2 | $3.99 | In stock | |
| 23 | 2415857 | HRNS-ACCY,WPER ROPS G2 RGR | 1 | $64.99 | Out of stock Est. Mar 10, 2027 |
