Polaris•Schematic assembly

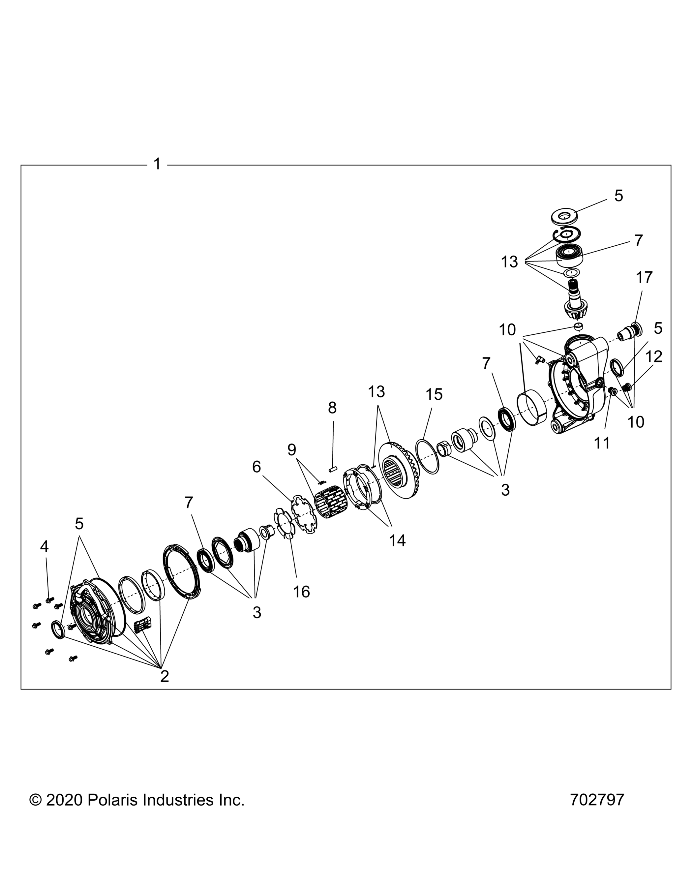

DRIVE TRAIN, FRONT GEARCASE INTERNALS - R26RRV99AK (702797)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246190
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1336955 | ASM-GEARCASE,FRT,ISOLATED,ADC [INCLUDES ALL] | 1 | $2,099.99 | In stock | |
| 2 | 3236727 | ASM-COVER OUTPUT | 1 | $599.99 | In stock | |
| 3 | 3236539 | ASM,OUTPUT HUB | 1 | $499.99 | In stock | |
| 4 | 3235483 | COVER-FASTNERS | 1 | $64.99 | In stock | |
| 5 | 3236719 | K-SEAL REPAIR | 1 | $124.99 | In stock | |
| 6 | 3236048 | PLATE-4WD ARMATURE | 1 | $139.99 | In stock | |
| 7 | 3236051 | BEARINGS | 1 | $194.99 | In stock | |
| 8 | 3235486 | CAGE ROLLERS [INCLUDES FULL ROLLER SET OF 24] | 1 | $9.99 | In stock | |
| 9 | 3236540 | ASM-ROLL CAGE [INCLUDES ROLL CAGE AND 24 H-CLIPS] | 1 | $314.99 | In stock | |
| 10 | 3239319 | ASM-GEARCASE | 1 | $2,099.99 | In stock | |
| 11 | 2203738 | KIT-PLUG,DRAIN | 1 | $44.99 | In stock | |
| 12 | 2203739 | KIT-PLUG,FILL | 1 | $54.99 | In stock | |
| 13 | 3236730 | GEAR HOUSING & PINION GEAR ASSSY | 1 | $1,249.99 | In stock | |
| 14 | 3235712 | KIT-TORSION,SPRING AND RETAINER | 1 | $44.99 | In stock | |
| 15 | 3234437 | SPACER-RING GEAR | 1 | $24.99 | In stock | |
| 16 | 3236541 | PLATE-BD ARMATURE | 1 | $129.99 | In stock | |
| 17 | 5417265 | KIT-ISOLATOR | 1 | $39.99 | In stock |
