Schematic diagram
Polaris•Schematic assembly

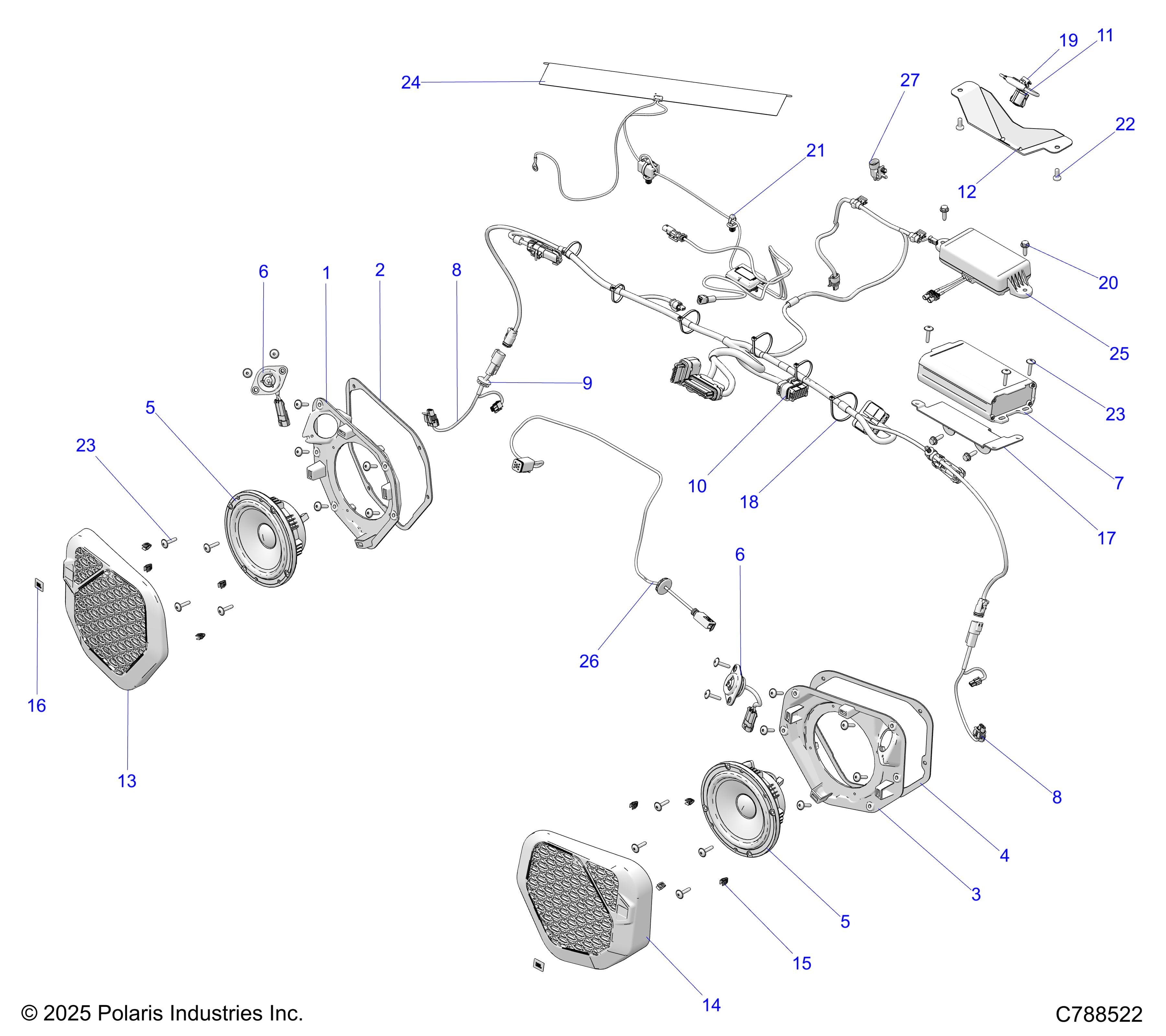

ELECTRICAL, RIDE COMMAND - R26RRV99AK (C788522)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246208
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2639298 | ASM-BAFFLE SPEAKER, LH [INCLUDES 1 & 2] | 1 | $34.99 | In stock | |
| 1 | 5459734-070 | BAFFLE-SPEAKER,FRONT,LH,BLK | 1 | Price TBD | Out of stock | |
| 2 | 5526467 | SEAL-AUDIO,LH | 1 | $9.99 | In stock | |
| 3 | 2639299 | ASM-BAFFLE SPEAKER, RH [INCLUDES 3 & 4] | 1 | $34.99 | In stock | |
| 3 | 5459735-070 | BAFFLE-SPEAKER,FRONT,RH,BLK | 1 | Price TBD | Out of stock | |
| 4 | 5526468 | SEAL-AUDIO,RH | 1 | $9.99 | In stock | |
| 5 | 2415717 | ASM,WFR,MID,6.5",4OHM,W/XOVER | 2 | $399.99 | In stock | |
| 6 | 2415718 | ASM,TWTR,W/MOUNT,0.75",4OHM | 2 | $104.99 | Out of stock Est. Jul 27, 2026 | |
| 7 | 2415721 | ASM-AMP,4CH,200W | 1 | $409.99 | In stock | |
| 8 | 2416976 | HARN-SPEAKER,DASH,TWEETER [INCLUDES 9] | 2 | $34.99 | In stock | |
| 9 | 5413027 | GROMMET, SPEAKER, VOLUME | 2 | $2.99 | In stock | |
| 10 | 2418160-01 | HARN-SPEAKER,DASH,RC | 1 | $199.99 | Out of stock Est. Sep 10, 2026 | |
| 11 | 4081064 | CAM-IR ILLUMINATED,AMB SENSE | 1 | $244.99 | In stock | |
| 12 | 5265002-329 | BRKT-CAMERA MNT,REAR,Z,BLK | 1 | $59.99 | In stock | |
| 13 | 5459736-070 | PANEL-GRILLE,SPKR,LH,BLK | 1 | $24.99 | In stock | |
| 14 | 5459737-070 | PANEL-GRILLE,SPKR,RH,BLK | 1 | $24.99 | In stock | |
| 15 | 5456313 | CLIP-TRIM, PLASTIC, WHITE | 8 | $1.99 | In stock | |
| 16 | 5272513 | BADGE-JBL,PANTONE 172 ORG,20MM | 2 | $10.99 | In stock | |
| 17 | 5274653-329 | BRKT-MNT,AMP,ECOAT | 1 | $24.99 | In stock | |
| 18 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 8 | $2.99 | In stock | |
| 19 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | $5.99 | In stock | |
| 20 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | $1.49 | In stock | |
| 21 | 7082414 | CLIP-FIR TREE,9.7-10.0MM HOLE | 2 | $4.99 | In stock | |
| 22 | 7520803 | SCR-TXPH-#14X5/8 HI/LO CLR | 2 | $3.99 | In stock | |
| 23 | 7527826 | SCR-TXTR-M5X25 ZTB BOSS | 21 | $2.99 | In stock | |
| 24 | 2417141 | ANTENNA,AM-FM | 1 | $134.99 | In stock | |
| 25 | 4083388 | ANTENNA-GPS,V2V | 1 | $119.99 | In stock | |
| 26 | 2415498 | HARNESS,USB,RC | 1 | $79.99 | In stock | |
| 27 | 4018205 | SENSOR-GAUGE,AIR TEMP,PNL MNT | 1 | $74.99 | In stock |
