Schematic diagram
Polaris•Schematic assembly

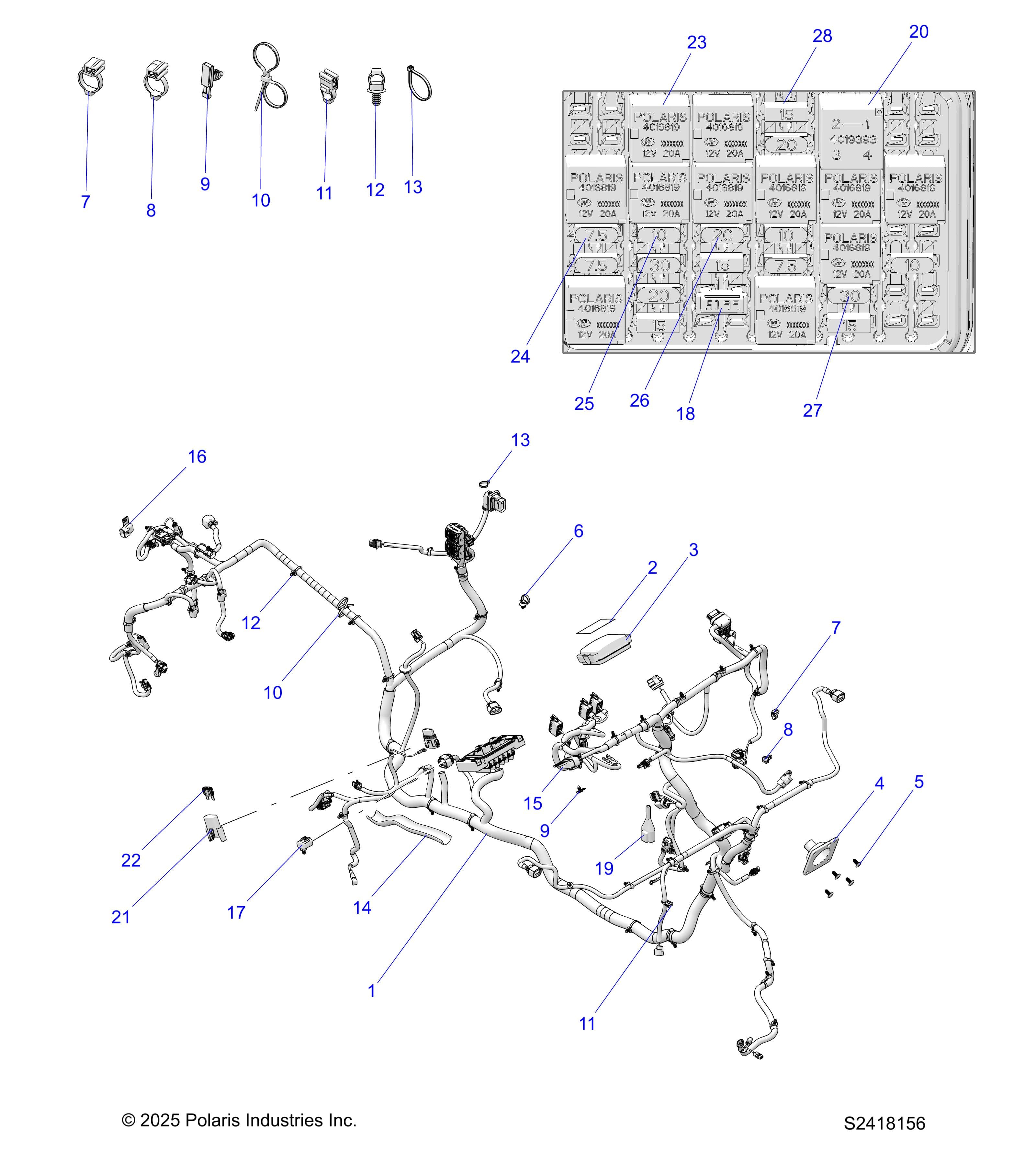

ELECTRICAL, HARNESS CHASSIS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246209
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2418156-06 | HARN-CHASSIS,HVAC,TB [INCLUDES ALL] | 1 | $1,544.99 | In stock | |
| 2 | 7301183 | DECAL-RELAY/FUSE BLOCK,HVAC,TB | 1 | Price TBD | Out of stock | |
| 3 | 4081174 | COVER-FUSEBOX,96WAY | 1 | $84.99 | In stock | |
| 4 | 5814560 | GROMMET - 65MM, W/FLANGE, BLK | 1 | $15.99 | In stock | |
| 5 | 7670090 | CLIP-FIR TREE,DART,6.35MM | 4 | $1.49 | In stock | |
| 6 | 7082747 | STRAP-TREE MOUNT CABLE TIE | 1 | $0.99 | In stock | |
| 7 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | $5.99 | In stock | |
| 8 | 7082400 | CLIP-EDGE,1-3MM THICKNESS | 1 | $6.99 | In stock | |
| 9 | 7082134 | CLIP-FIR,HOLE6.35MM | 1 | $4.99 | In stock | |
| 10 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | $5.99 | In stock | |
| 11 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | $6.99 | In stock | |
| 12 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 47 | $5.99 | In stock | |
| 13 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 1 | $2.99 | In stock | |
| 14 | 5466438 | TRAY-ROUTING,HARNESS | 1 | $5.99 | In stock | |
| 15 | 4083558 | CAP-CON,16P,GT150/280 | 1 | $9.99 | In stock | |
| 16 | 4083557 | CAP-CONN,2P,MP280 | 1 | $9.99 | In stock | |
| 17 | 4083556 | CAP-CONN,8P,DIAGNOSTIC,W/CLIP | 1 | $9.99 | In stock | |
| 18 | 4081932 | RESISTOR-620 OHM, MINI | 1 | $54.99 | Out of stock Est. Sep 11, 2026 | |
| 19 | 4080238 | THROTTLE-CON BOOT | 1 | $11.99 | In stock | |
| 20 | 4019393 | SSR-4PIN | 1 | $134.99 | In stock | |
| 21 | 4018207 | HOLDER-FUSE,SEALED | 1 | $89.99 | In stock | |
| 22 | 4017180 | FUSE-MAXI,50A | 1 | $54.99 | In stock | |
| 23 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 11 | $44.99 | In stock | |
| 24 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 3 | $13.99 | Out of stock Est. Sep 14, 2026 | |
| 25 | 2434016 | FUSE-IGNITION,10 AMP | 3 | $6.99 | In stock | |
| 26 | 2434017 | FUSE-PARK,20 AMP | 3 | Price TBD | Out of stock | |
| 27 | 2434015 | FUSE-MAIN,30 AMP | 2 | $9.99 | In stock | |
| 28 | 2410280 | FUSE-MINI BLADE,15 AMP | 4 | Price TBD | Out of stock |
