Schematic diagram

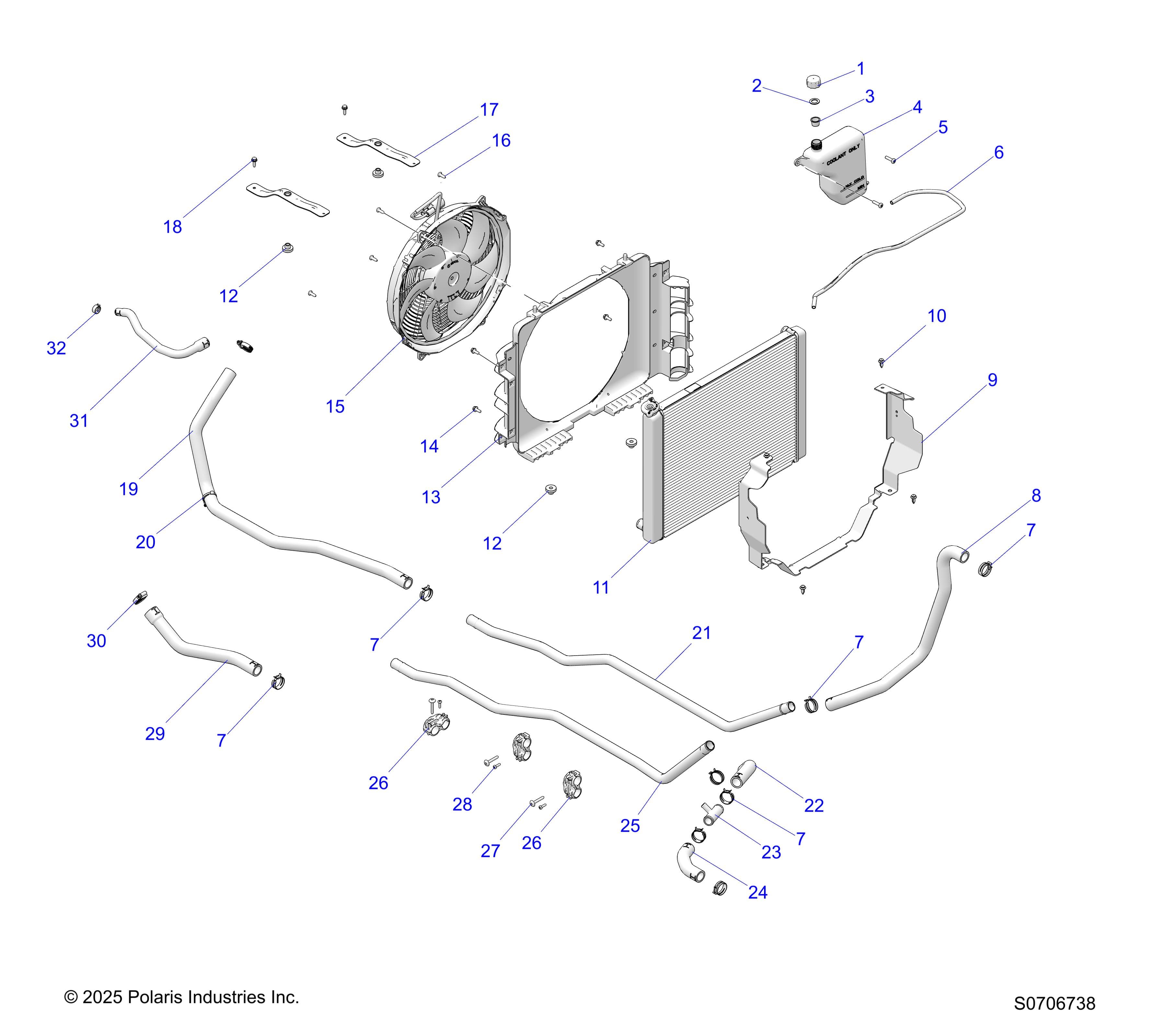

Polaris•Schematic assembly
ENGINE, COOLING SYSTEM
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246215
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5430743 | CAP-OVER FLOW BOTTLE,DRILLED [INCLUDES 2-3] | 1 | $6.99 | In stock | |
| 2 | 5810279 | GASKET-OVERFLOW CAP | 1 | $2.99 | In stock | |
| 3 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | $6.99 | In stock | |
| 4 | 5439202 | TANK-SURGE | 1 | $119.99 | In stock | |
| 5 | 7518158 | SCR-#14X1 HI/LO-PH-PN TRX-M | 2 | $5.99 | In stock | |
| 6 | 8450003-95 | FUEL LINE-95 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 7 | 7080844 | SPRINGBAND-CLAMP 35/12,BLK | 8 | $12.99 | In stock | |
| 8 | 5416209 | HOSE-UPPER,RAD | 1 | $94.99 | In stock | |
| 9 | 5459846-070 | SHROUD-RADIATOR,FRT,HVAC,BLK | 1 | $49.99 | In stock | |
| 10 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | $1.49 | In stock | |
| 11 | 1241164 | ASM-RADIATOR,CORE,HVAC [INCLUDES CAP] | 1 | $649.99 | In stock | |
| 11 | 1240694 | CAP | 1 | $49.99 | In stock | |
| 12 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | $7.99 | In stock | |
| 13 | 5458272 | SHROUD-FAN,HVAC | 1 | $144.99 | In stock | |
| 14 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 4 | $3.99 | In stock | |
| 15 | 2416014 | ASM-FAN-500W | 1 | $519.99 | In stock | |
| 16 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 17 | 5263654-329 | BRKT-RADIATOR MOUNT,BLK | 2 | $14.99 | In stock | |
| 18 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock | |
| 19 | 5416140 | HOSE-ENG,OUT | 1 | $59.99 | In stock | |
| 20 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | $5.99 | In stock | |
| 21 | 5347094 | TUBE-COOLANT,1" | 1 | Price TBD | Out of stock | |
| 22 | 5416211 | HOSE-COOLANT,3WAY-HEATER | 1 | $39.99 | In stock | |
| 23 | 7052530 | CONNECTOR-TEE,1X1X0.5 | 1 | $6.99 | In stock | |
| 24 | 5416210 | HOSE-COOLANT,3WAY-ENG | 1 | $39.99 | In stock | |
| 25 | 5347095 | TUBE-COOLANT,1",UPPER | 1 | Price TBD | Out of stock | |
| 26 | 5453767 | CLIP-COOLANT ROUTING | 3 | $6.99 | In stock | |
| 27 | 7519001 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 3 | $4.99 | In stock | |
| 28 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 3 | $1.49 | In stock | |
| 29 | 5416139 | HOSE-ENG,IN | 1 | $18.99 | In stock | |
| 30 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | $9.99 | In stock | |
| 31 | 5416357 | HOSE-COOLANT,3WAY TO ENG | 1 | $39.99 | In stock | |
| 32 | 7081026 | CLAMP-HOSE,SPRING .81 | 1 | $9.99 | In stock |
