Schematic diagram
Polaris•Schematic assembly
ENGINE, ALTERNATOR & COMPRESSOR
Product Description

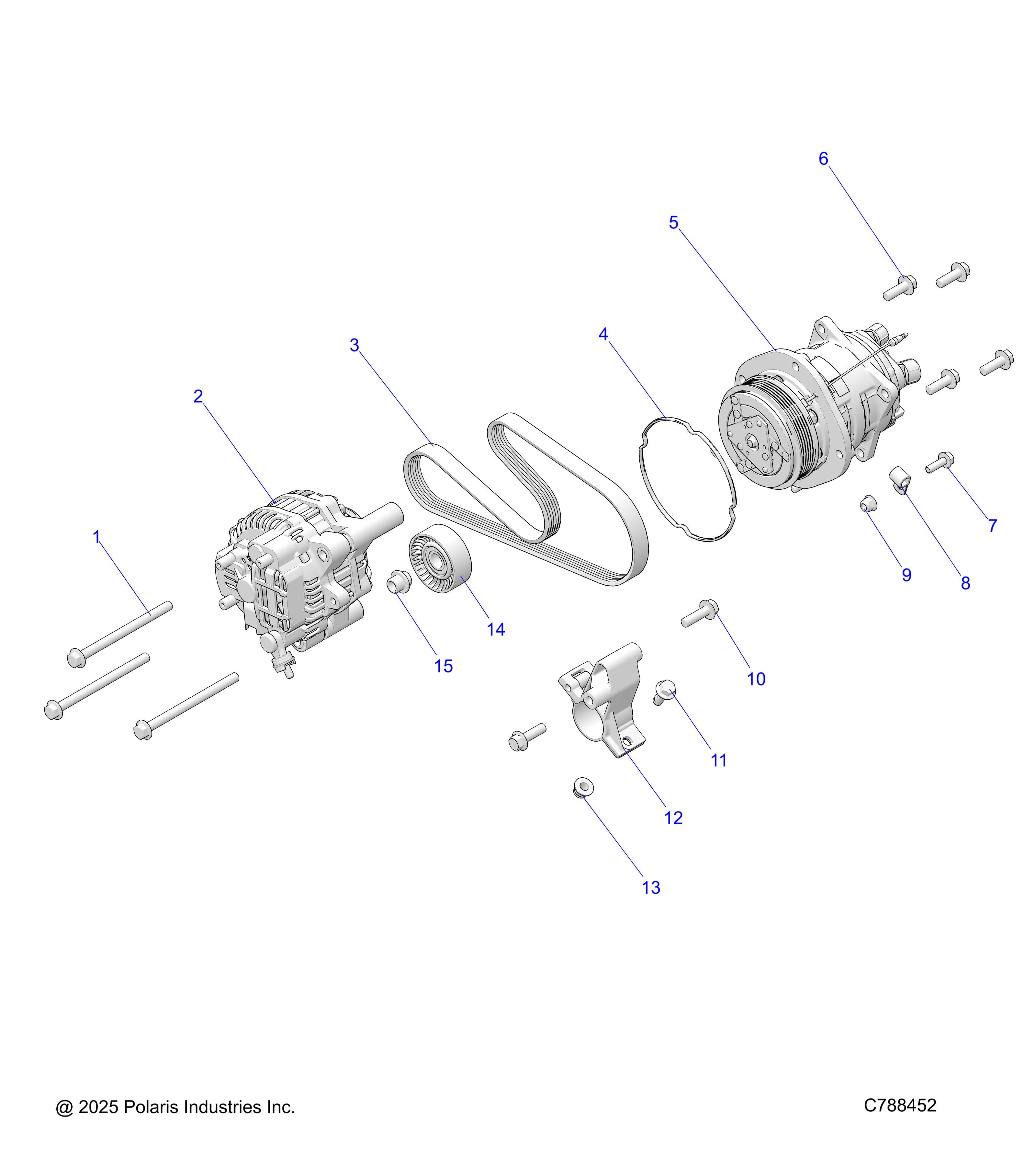

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246220
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7519041 | SCR-HXFL-M10X1.5X140 8.8 ZOD | 3 | $12.99 | Out of stock Est. Jul 21, 2026 | |
| 2 | 4019209 | ALTERNATOR-140A,HVAC | 1 | $569.99 | In stock | |
| 3 | 5418705 | BELT-HVAC DRIVE | 1 | $49.99 | In stock | |
| 4 | 5415805 | GASKET-HVAC COMPRESSOR | 1 | $14.99 | In stock | |
| 5 | 3023970 | COMPRESSOR-HVAC,112MM | 1 | $509.99 | In stock | |
| 6 | 7519764 | SCR-HXFL-M10X1.5X30 8.8 ZOD | 4 | $2.99 | In stock | |
| 7 | 7518514 | BOLT-M8X1.25X25,HXFLG-OLIVE D | 1 | $1.99 | In stock | |
| 8 | 7081722 | CLIP-P,7/16X.343 HOLE | 1 | $4.99 | In stock | |
| 9 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 1 | $2.99 | In stock | |
| 10 | 7519782 | SCR-HXFL-M10X1.5X35 10.9 ZOD D | 2 | $4.99 | In stock | |
| 11 | 7518760 | SCR-HXFL-M10X1.25X25 8.8 Z NY | 1 | $11.99 | In stock | |
| 12 | 3023168 | ASM,COMPRESSOR SUPPORT | 1 | $79.99 | In stock | |
| 13 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | $1.99 | In stock | |
| 14 | 3023107 | PULLEY-FLAT IDLER,70.9MM | 1 | $54.99 | In stock | |
| 15 | 5140080 | WASHER,COVER | 1 | Price TBD | Out of stock |
