Schematic diagram
Polaris•Schematic assembly

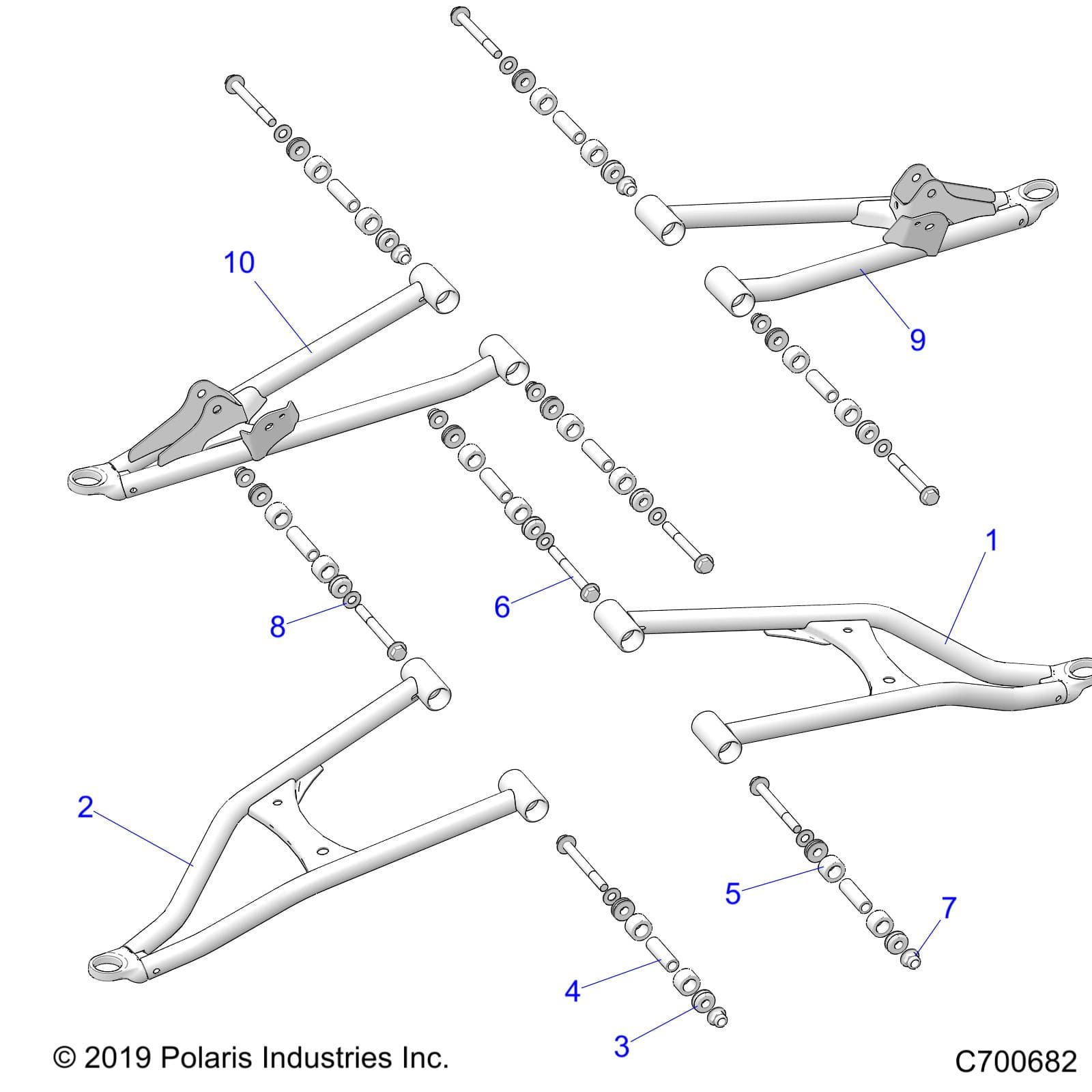

SUSPENSION, FRONT CONTROL ARMS - R26RRV99AK (C700682)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246235
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1025701-458 | WELD-A-ARM,FR,LWR,HC,LH,BLK | 1 | $189.99 | In stock | |
| 2 | 1025702-458 | WELD-A-ARM,FR,LWR,HC,RH,BLK | 1 | $189.99 | In stock | |
| 3 | 1543612 | ASM-PIVOT CAP, SEALED, M12 | 16 | $6.99 | In stock | |
| 4 | 5144660 | SHAFT-PIVOT,SHORT,M12 | 8 | $10.99 | In stock | |
| 5 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 16 | $3.99 | In stock | |
| 6 | 7520479 | SCR-HXFL-M12X1.5X105 10.9 ZOD | 8 | $8.99 | In stock | |
| 7 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 8 | $5.99 | In stock | |
| 8 | 7556287 | WSHR-13.0X24.0X2.5 ZPC | 8 | $8.99 | In stock | |
| 9 | 1025698-458 | WELD-A-ARM,FR,UPR,LH,BLK | 1 | $194.99 | In stock | |
| 10 | 1025699-458 | WELD-A-ARM,FR,UPR,RH,BLK | 1 | $194.99 | In stock |
