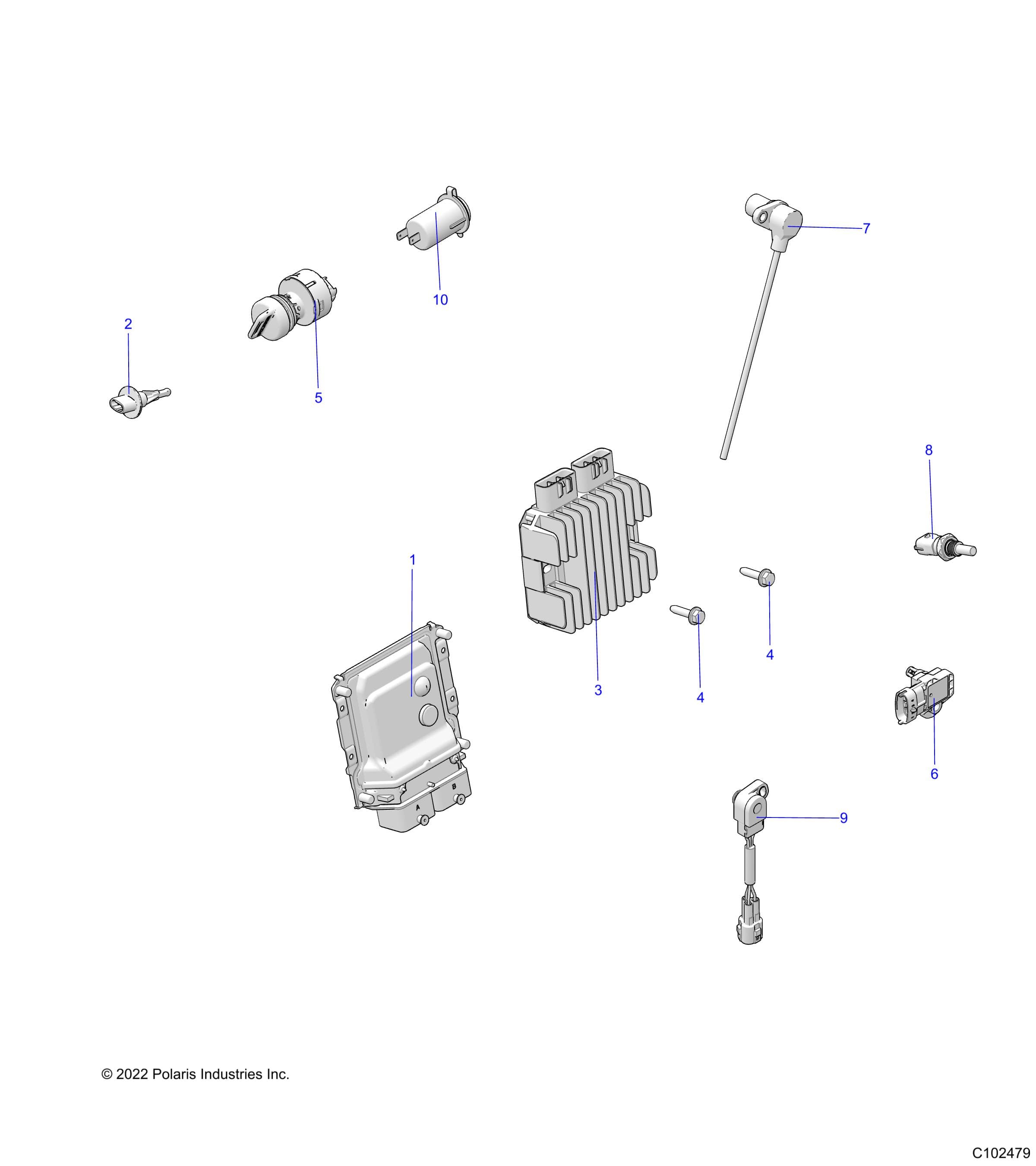

2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR — ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A26SXM95AR (C102479) diagram

Schematic diagram

Polaris•Schematic assembly

ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A26SXM95AR (C102479)

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR Assembly ID: 246383

Vehicle Compatibility

  • 2026 Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR

Checkout Note

Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
14012838ECU, BASE, M171$599.99
In stock
22410687Sensor, Air Temperature1$189.99
In stock
34016868REGULATOR-3PH,50A,SERIES,HISPD1Price TBD
Out of stock
47519342SCR-TFHFL-M6X1.0X25,ZOD2Price TBD
Out of stock
44083544SWITCH-KEY,3 POSITION,SEALED [INCL. 5]1$64.99
In stock
47519342SCR-TFHFL-M6X1.0X25,ZOD2Price TBD
Out of stock
44083544SWITCH-KEY,3 POSITION,SEALED [INCL. 5]1$64.99
In stock
55433534KEY SWITCH KEY COVER1Price TBD
Out of stock
55433733NUT-IGNITION SWITCH,HOBBS1$29.99
In stock
62411528SENSOR-TMAP DSS3-TF [INCL. 6]1Price TBD
Out of stock
63131726SCR-SENSOR TMAP1Price TBD
Out of stock
72411589SENSOR, CRANK POSITION [INCL. 7]1$99.99
In stock
77518548SCREW-HXFL-M6X1.0X16 8.8 ZY31Price TBD
Out of stock
84010644SENSOR-THERMISTER1Price TBD
Out of stock
92412634SENSOR, THROTTLE POSITION [INCL. 9]1$319.99
In stock
93131010Screw [MAG Side]1$5.99
In stock
93131729O-RING1$14.99
In stock
104080487RECEPTACLE-POD MNT,12 VOLT1Price TBD
Out of stock
