Schematic diagram
Polaris•Schematic assembly

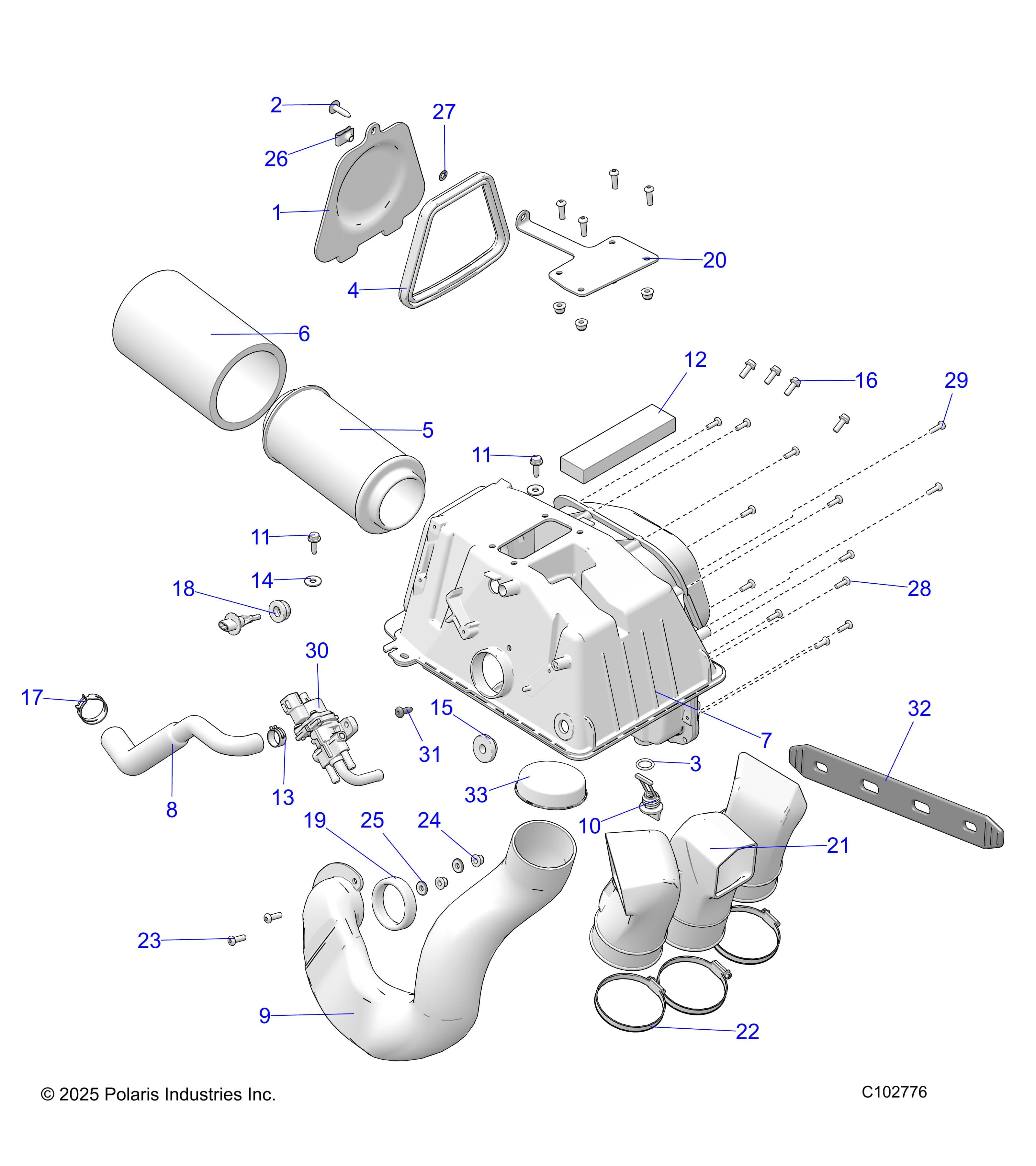

ENGINE, AIR INTAKE - A26SXM95AR (C102776)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR Assembly ID: 246385
Vehicle Compatibility
- 2026 Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5261827 | COVER, AIRBOX | 1 | $74.99 | In stock | |
| 2 | 7517685 | SCR-1/4-20X1.00 TR/TX-M | 1 | $1.99 | In stock | |
| 3 | 5414246 | O-RING | 1 | $1.99 | In stock | |
| 4 | 5814345 | SEAL, AIRBOX COVER | 1 | $34.99 | In stock | |
| 5 | 7083107 | FILTER-AIR INTAKE,HD | 1 | $34.99 | In stock | |
| 6 | 5811633 | Filter, Pre-Cleaner, Sleeve | 1 | $14.99 | In stock | |
| 7 | 1244935 | ASM-AIR INTAKE,BOX W/RUNNER HL | 1 | $219.99 | In stock | |
| 8 | 5414322 | HOSE, BREATHER, TWIN | 1 | $54.99 | In stock | |
| 9 | 5452407 | DUCT-AIR INLET,FRONT | 1 | $79.99 | In stock | |
| 10 | 5451429 | PLUG, AIR BOX | 1 | $18.99 | In stock | |
| 11 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 12 | 5813409 | FOAM-CAB,SGUARD,254X38.1X19.05 | 1 | $7.99 | In stock | |
| 13 | 7081026 | CLAMP-HOSE,SPRING .81 | 1 | Price TBD | Out of stock | |
| 14 | 7555859 | WASHER-FL .281X.750X.062-Y | 2 | Price TBD | Out of stock | |
| 15 | 5413423 | GROMMET, SUPPORT, TRUNK | 1 | $3.99 | In stock | |
| 16 | 7528343 | SCR-SHFL-M6X1.0X25 10.9 ZNC PC | 4 | $2.99 | In stock | |
| 17 | 7080842 | SPRINGBAND-CLAMP 29/12,BLK | 1 | Price TBD | Out of stock | |
| 18 | 5436346 | GROMMET, AIR TEMPERATURE SENSOR | 1 | $5.99 | In stock | |
| 19 | 5814346 | SEAL-AIRBOX,INTAKE DUCT | 1 | $1.99 | In stock | |
| 20 | 5261826 | PLATE-CLOSEOUT | 1 | $39.99 | In stock | |
| 21 | 5415531 | BOOT-AIR NTAKE | 1 | $74.99 | In stock | |
| 22 | 7081279 | CLAMP-BAND,NARROW 70-90MM | 3 | Price TBD | Out of stock | |
| 23 | 7518546 | SCR-M6X1.0X20MM,TX,PH,8.8-B | 6 | Price TBD | Out of stock | |
| 24 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 6 | Price TBD | Out of stock | |
| 25 | 7555748 | WASHER-.28X.62-.14(RBR-BK)-Z | 2 | Price TBD | Out of stock | |
| 26 | 7670096 | NUT-CHIMNEY 1/4-20,GR-5 | 1 | $1.99 | In stock | |
| 27 | 7670154 | RETAINER-BOLT,1/4-20 | 1 | $2.99 | In stock | |
| 28 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 12 | Price TBD | Out of stock | |
| 29 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 30 | 4013313 | VALVE, IAC | 1 | $229.99 | In stock | |
| 31 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 1 | Price TBD | Out of stock | |
| 32 | 5414193 | STRAP, ECU | 1 | $34.99 | In stock | |
| 33 | 5452777 | CAP-PLUG T-53 | 1 | $3.99 | In stock |
