Schematic diagram
Polaris•Schematic assembly

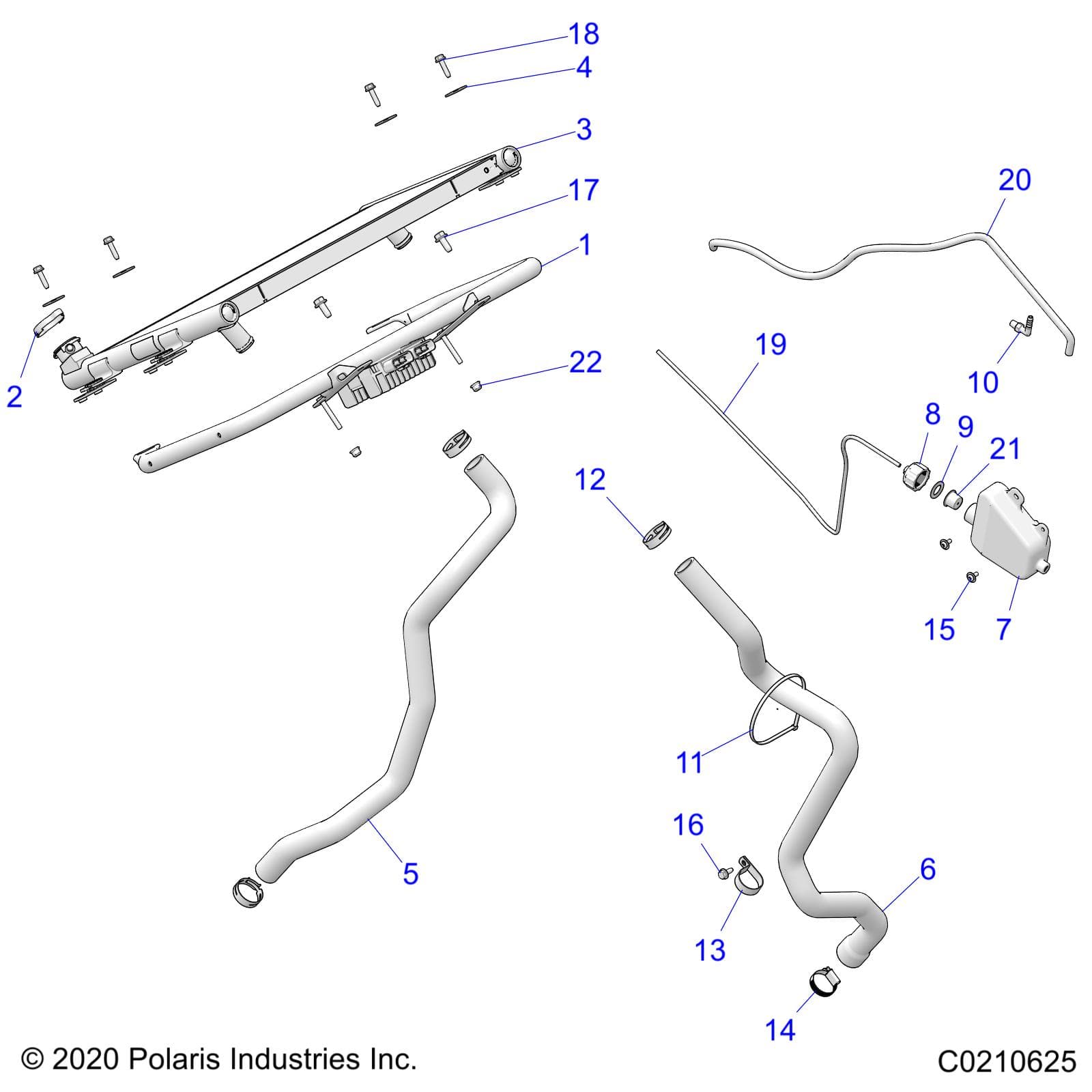

ENGINE, COOLING SYSTEM, RADIATOR - A26SXM95AR (C0210625)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR Assembly ID: 246391
Vehicle Compatibility
- 2026 Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1021184 | WELD-RADIATOR SUPPORT | 1 | $124.99 | In stock | |
| 2 | 1240466 | CAP, PRESSURE | 1 | $69.99 | In stock | |
| 3 | 1240922 | ASM-RADIATOR,FLAT MNT [INCL. CAP, GROMMET AND INSERT] | 1 | $669.99 | In stock | |
| 4 | 7558221 | WASHER-.270X1.25X.060,FL-Y | 4 | $2.99 | In stock | |
| 5 | 5415399 | HOSE-COOLANT,ENGINE IN | 1 | $59.99 | In stock | |
| 6 | 5415831 | HOSE-COOLANT,ENGINE OUT | 1 | $94.99 | In stock | |
| 7 | 5436936 | TANK-SURGE | 1 | $99.99 | In stock | |
| 8 | 5437635 | CAP, OVER FLOW BOTTLE, W/FITTING | 1 | $5.99 | In stock | |
| 9 | 5810279 | GASKET-OVERFLOW CAP | 1 | Price TBD | Out of stock | |
| 10 | 7052065 | FITTING-1/8-27, BARBED, 90 DEG | 1 | $8.99 | In stock | |
| 11 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | Price TBD | Out of stock | |
| 12 | 7080844 | SPRINGBAND-CLAMP 35/12,BLK | 3 | Price TBD | Out of stock | |
| 13 | 7080851 | CLAMP-HOSE,1.312 VINYL COATED | 1 | Price TBD | Out of stock | |
| 14 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 1 | Price TBD | Out of stock | |
| 15 | 7512084 | SCR-10-24X1/2, PHTXTRIRD, SEMS-Y | 2 | Price TBD | Out of stock | |
| 16 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 1 | Price TBD | Out of stock | |
| 17 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | Price TBD | Out of stock | |
| 18 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 6 | Price TBD | Out of stock | |
| 19 | ------- | HOSE-POLY,CLEAR,3/16 OD,1/8 ID | 1 | Price TBD | Out of stock | |
| 20 | ------- | HOSE-POLY,CLEAR,3/8 OD,1/4 ID | 1 | Price TBD | Out of stock | |
| 21 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | Price TBD | Out of stock | |
| 22 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock |
