Polaris•Schematic assembly

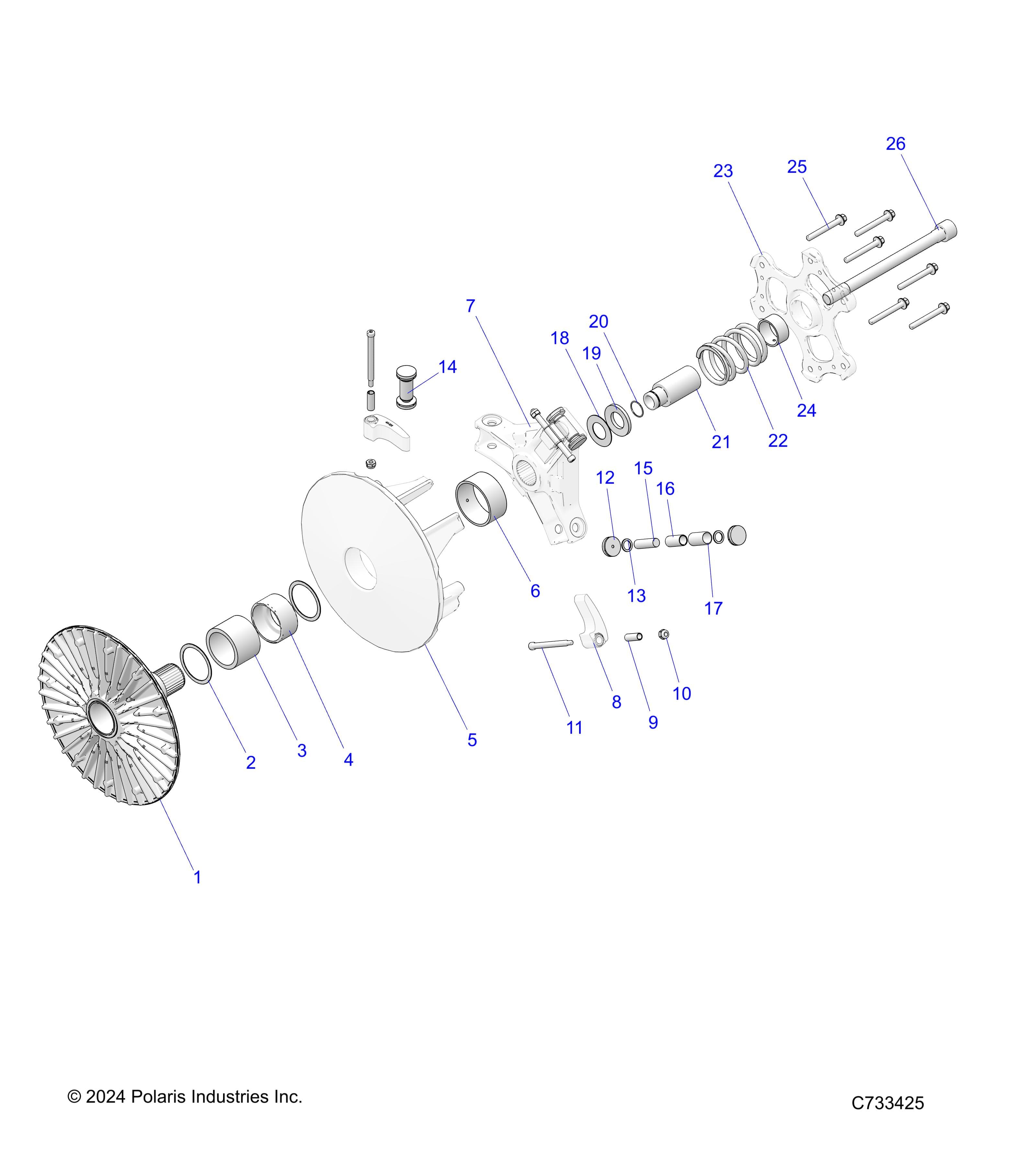

DRIVE TRAIN, PRIMARY CLUTCH - R26RRU99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C733425)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR Assembly ID: 246993
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1327300 | ASM-DRIVE CLUTCH,BASIC,P90X | 1 | $579.99 | In stock | |
| 1 | 5144698 | ASM-SHEAVE,STAT,P90X,6:1 | 1 | $139.99 | In stock | |
| 2 | 7557071 | WSHR-CLUTCH,40.5X49X0.8,SP-21 | 2 | $16.99 | In stock | |
| 3 | 3515043 | BEARING-NEEDLE,40X50X35 | 1 | $39.99 | In stock | |
| 4 | 5143479 | SPACER-CLUTCH,P90X,QPQ | 1 | $34.99 | In stock | |
| 5 | ------- | SHEAVE-MOV,DRIVE,P90X [INCLUDES 6] | 1 | Price TBD | Out of stock | |
| 6 | 3515174 | BUSHING-50X55X25,MU | 1 | $15.99 | In stock | |
| 7 | 1323794 | ASM-SPIDER,22MM,P90X,HD [INCLUDES 12-15] | 3 | $129.99 | In stock | |
| 8 | 1327235 | ASM-WEIGHT-SHIFT,41-101 [INCLUDES 9] | 3 | $54.99 | In stock | |
| 9 | 5453843 | BUSHING-WEIGHT,1/4X7/8,DU | 1 | $7.99 | In stock | |
| 10 | 7541906 | NUT-10-24-FLEX LOC-Z | 3 | $3.99 | In stock | |
| 11 | 7520585 | BOLT-SHIFT WEIGHT,BUSHED | 3 | $6.99 | In stock | |
| 12 | 5457274 | BUTTON-CLUTCH,22MM,SCP | 6 | $9.99 | In stock | |
| 13 | 5453844 | WASHER-CLUTCH,SPIDER ROLLER | 6 | $1.99 | Out of stock Est. Jul 21, 2026 | |
| 14 | 1323795 | ASM-SPIDER ROLLER,P90X,25MM [INCLUDES 16 & 17] | 3 | $19.99 | In stock | |
| 15 | 5140978 | PIN-SPIDER | 3 | $12.99 | In stock | |
| 16 | 5457275 | BUSHING-10X12X25,MU | 3 | Price TBD | Out of stock | |
| 17 | 5143506 | ROLLER-SPIDER,12X14.3X25 | 3 | Price TBD | Out of stock | |
| 18 | 7557017 | WSHR-20.5X38.0X0.75 ZY3 | 1 | $9.99 | In stock | |
| 19 | 7557018 | WSHR-BELLE,21X37.5X3.8,SPC | 1 | $12.99 | In stock | |
| 20 | 5418306 | O-RING 1.0X17.5MM,90A | 1 | $2.99 | In stock | |
| 21 | 5143553 | POST-CLUTCH,OUTER,O-RING | 1 | $39.99 | In stock | |
| 22 | 7045326 | SPRING-CLUTCH,103-200,HT | 1 | $59.99 | In stock | |
| 23 | ------- | ASM-CVR,P90X,MU | 1 | Price TBD | Out of stock | |
| 24 | 3515173 | BUSHING-1.13X1.28X0.63,MU | 1 | $7.99 | In stock | |
| 25 | 7517932 | SCR-M6X1.0X50.0 HX/FL-Y/D | 6 | $4.99 | In stock | |
| 26 | 7520526 | SCR-SH-M14X1.5X180 10.9 SPC | 1 | $44.99 | In stock | |
| 26 | 1327235 | ASM-WEIGHT-SHIFT,41-101 [INCLUDES 27] | 3 | $54.99 | In stock |
