ENGINE, COOLING SYSTEM - R26RRU99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C700076-1)
Product Description

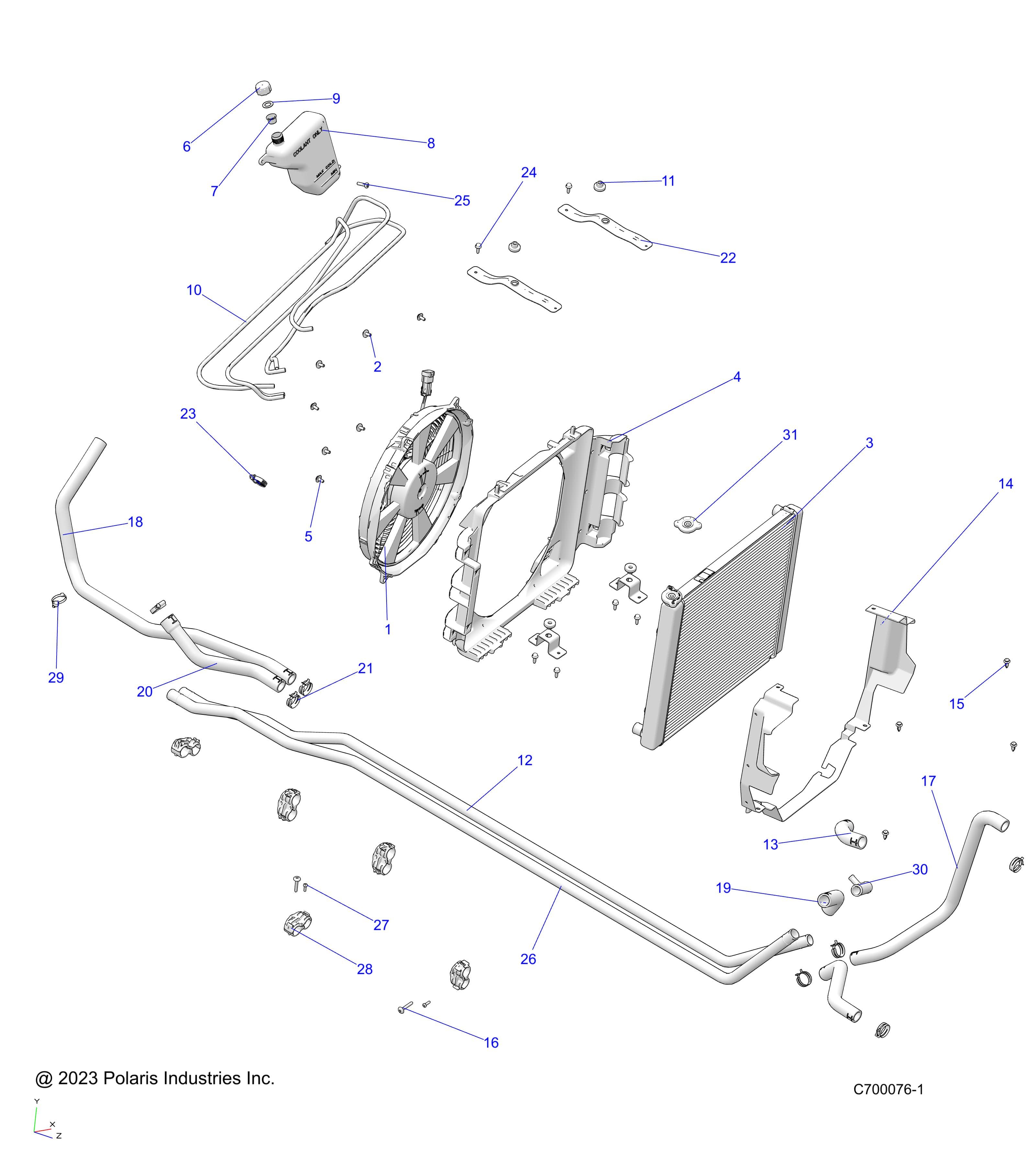

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR Assembly ID: 247007
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2416014 | ASM-FAN-500W | 1 | $519.99 | In stock | |
| 2 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 4 | $3.99 | In stock | |
| 3 | 1241164 | ASM-RADIATOR,CORE,HVAC [INCLUDES 31] | 1 | $649.99 | In stock | |
| 4 | 5458272 | SHROUD-FAN,HVAC | 1 | $144.99 | In stock | |
| 5 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 6 | 5430743 | CAP-OVER FLOW BOTTLE,DRILLED | 1 | $6.99 | In stock | |
| 7 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | $6.99 | In stock | |
| 8 | 5439202 | TANK-SURGE | 1 | $119.99 | In stock | |
| 9 | 5810279 | GASKET-OVERFLOW CAP | 1 | $2.99 | In stock | |
| 10 | 8450003-95 | FUEL LINE-95 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 11 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | $7.99 | In stock | |
| 12 | 5140928 | TUBE-COOLANT,1" | 1 | $69.99 | In stock | |
| 13 | 5416210 | HOSE-COOLANT,3WAY-ENG | 1 | $39.99 | In stock | |
| 14 | 5459846-070 | SHROUD-RADIATOR,FRT,HVAC,BLK | 1 | $49.99 | In stock | |
| 15 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | $1.49 | In stock | |
| 16 | 7519001 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 3 | $4.99 | In stock | |
| 17 | 5416209 | HOSE-UPPER,RAD | 1 | $94.99 | In stock | |
| 18 | 5416140 | HOSE-ENG,OUT | 1 | $59.99 | In stock | |
| 19 | 5416211 | HOSE-COOLANT,3WAY-HEATER | 1 | $39.99 | In stock | |
| 20 | 5416139 | HOSE-ENG,IN | 1 | $18.99 | In stock | |
| 21 | 7080844 | SPRINGBAND-CLAMP 35/12,BLK | 8 | $12.99 | In stock | |
| 22 | 5263654-329 | BRKT-RADIATOR MOUNT,BLK | 2 | $14.99 | In stock | |
| 23 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | $9.99 | In stock | |
| 24 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock | |
| 25 | 7518158 | SCR-#14X1 HI/LO-PH-PN TRX-M | 2 | $5.99 | In stock | |
| 26 | 5142861 | TUBE-COOLANT,1",UPPER | 1 | $69.99 | In stock | |
| 27 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 3 | $1.49 | In stock | |
| 28 | 5453767 | CLIP-COOLANT ROUTING | 3 | $6.99 | In stock | |
| 29 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | $5.99 | In stock | |
| 30 | 7052530 | CONNECTOR-TEE,1X1X0.5 | 1 | $6.99 | In stock | |
| 31 | 1240694 | CAP | 1 | $49.99 | In stock |
