Schematic diagram
Polaris•Schematic assembly

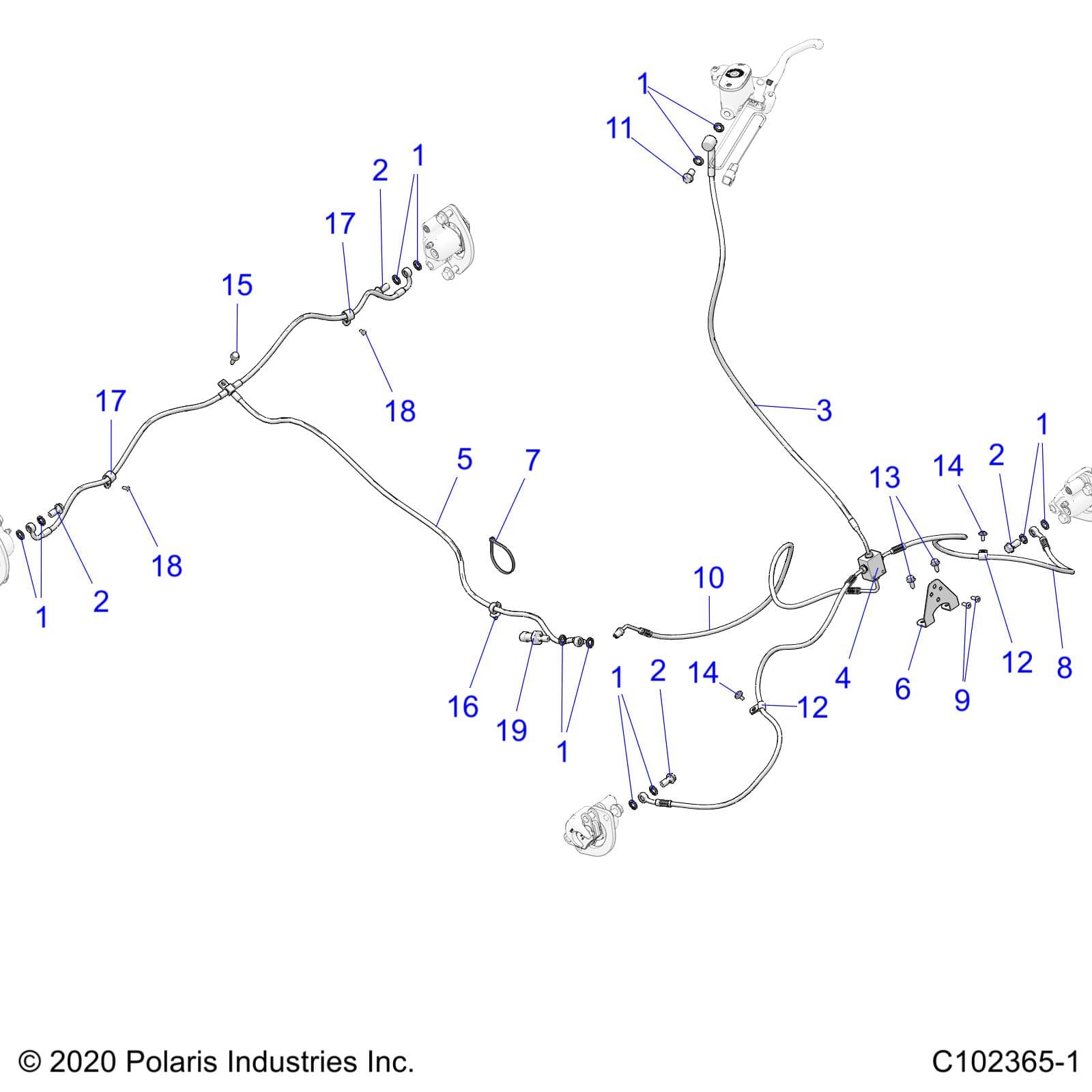

BRAKES, BRAKE LINES - A26SXR95AG (C102365-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG Assembly ID: 247194
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5413212 | SEAL-STAT-0-3/8, 70EP | 12 | Price TBD | Out of stock | |
| 2 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 4 | Price TBD | Out of stock | |
| 3 | 1914102 | LINE-BRK,MCT | 1 | $104.99 | In stock | |
| 4 | 7052372 | FITTING, CROSS | 1 | $74.99 | In stock | |
| 5 | 1913022 | LINE-BRAKE,REAR,G2 | 1 | $169.99 | In stock | |
| 6 | 5257768 | BRACKET, JUNCTION BLOCK | 1 | $12.99 | In stock | |
| 7 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | Price TBD | Out of stock | |
| 8 | 1911668 | LINE, BRAKE, CALIPER, FRONT | 1 | $99.99 | In stock | |
| 9 | 7512024 | SCR-#10-24X1/2PH/TORX-TRIRD-Y | 2 | Price TBD | Out of stock | |
| 10 | 1911669 | LINE, BRAKE, JB TO FT MC | 1 | $104.99 | Out of stock Est. Oct 12, 2026 | |
| 11 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 12 | 7081246 | CLAMP, WIRE/TUBE .25 DIA | 2 | Price TBD | Out of stock | |
| 13 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 2 | Price TBD | Out of stock | |
| 14 | 7518176 | SCR-10-24X1/2 PH/TX/TRIRD/SEMB | 2 | Price TBD | Out of stock | |
| 15 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | Price TBD | Out of stock | |
| 16 | 7670116 | CLIP, ROUTING, .472 B.D., HINGED | 1 | Price TBD | Out of stock | |
| 17 | 7080499 | CLAMP-CABLE, 9/16 I.D. | 2 | Price TBD | Out of stock | |
| 18 | 7621334 | RIVET-5/32 BULBEX-B | 2 | $1.49 | In stock | |
| 19 | 4081240 | SWITCH-BRK,M10X1.25,SGL,30-79 [TO 1/14/2026] | 1 | Price TBD | Out of stock | |
| 19 | 4081314 | SWITCH-BRK,M10X1.25,SGL,30-79 [FRM 1/14/2026] | 1 | $104.99 | In stock |
