Schematic diagram
Polaris•Schematic assembly

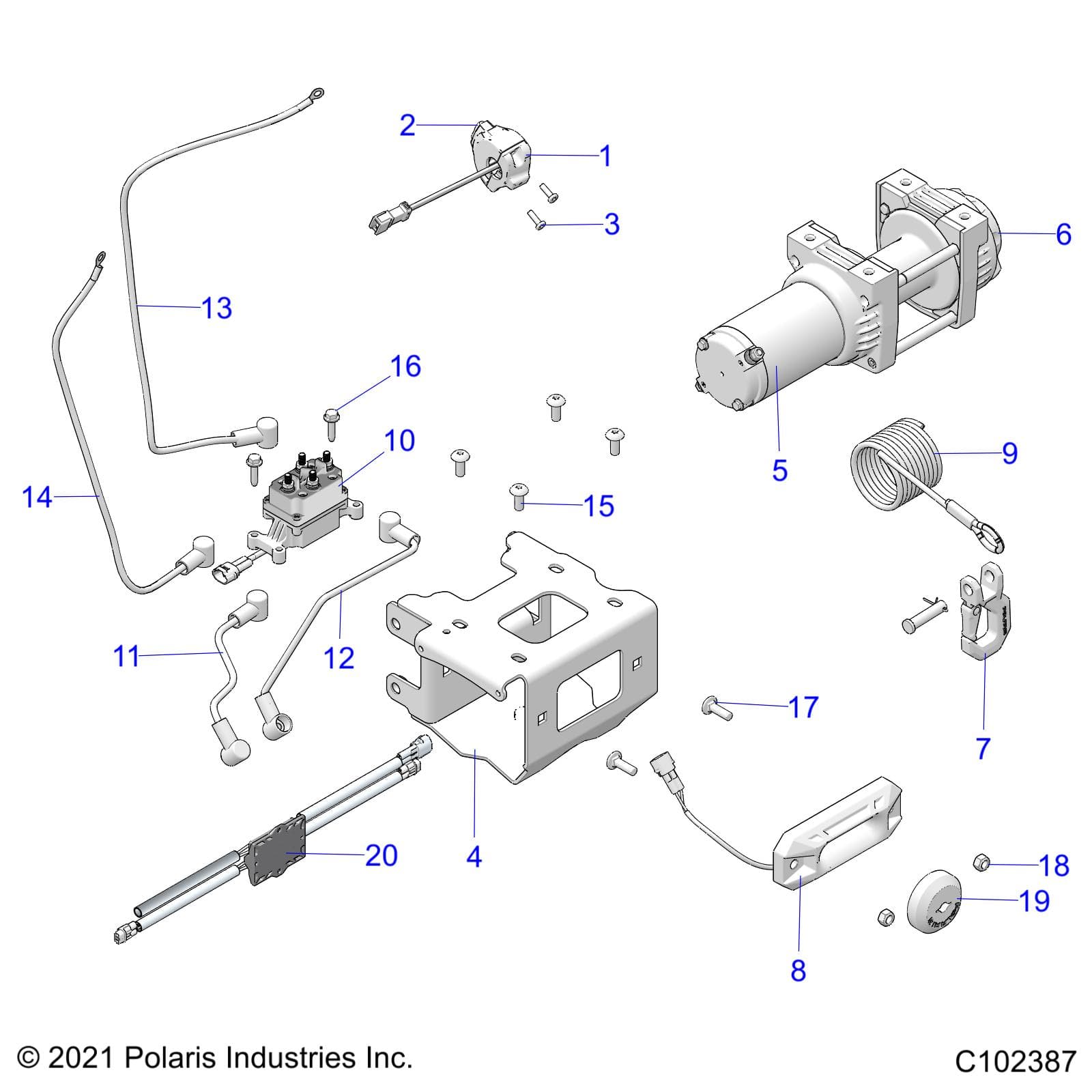

CHASSIS, WINCH - A26SXR95AG (C102387)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG Assembly ID: 247201
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2207175 | K-WINCH SWITCH,HBR,EU,ATV | 1 | $79.99 | In stock | |
| 2 | 4017111 | SWITCH-HBR,EU,ATV | 1 | Price TBD | Out of stock | |
| 3 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 4 | 1022577 | WELD-WINCH MT BRKT,CTR,ATV [INCL.4] | 1 | $114.99 | In stock | |
| 4 | ------- | BRKT-WINCH,CTR,ATV | 1 | Price TBD | Out of stock | |
| 5 | 2212756 | SVC-WINCH MOTOR,35HDT | 1 | $99.99 | In stock | |
| 5 | 2212694 | WINCH-POL,35HD,TH,T,B+45 | 1 | $364.99 | In stock | |
| 6 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 7 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN | 1 | Price TBD | Out of stock | |
| 8 | 2637782 | ASM-FAIRLEAD,HWS,MACH,ULT,NRW [INCL.8] | 1 | $44.99 | In stock | |
| 8 | 5143231 | FAIRLEAD,HWS,MACH,ULT,NRW | 1 | $24.99 | In stock | |
| 9 | 2878888 | ROPE-WINCH,SYNTHETIC,50' | 1 | $94.99 | In stock | |
| 10 | 4015095 | CONTACTOR-WINCH,POL,LIF,CAP | 1 | $109.99 | In stock | |
| 11 | 4013468-300 | CABLE-WINCH,YELLOW 6 GA,300MM | 1 | $44.99 | In stock | |
| 12 | 4013469-300 | CABLE-WINCH,BLUE 6 GA,300MM | 1 | $44.99 | In stock | |
| 13 | 4013470-530 | CABLE-POWER,WINCH,BLK #6,530MM | 1 | $44.99 | In stock | |
| 14 | 4013471-510WC | CABLE-POWER,WINCH,RED #6,510MM | 1 | $44.99 | In stock | |
| 15 | 7519260 | SCR-TXTH-M8X1.25X20 8.8 ZODP30 | 4 | $7.99 | In stock | |
| 16 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 17 | 7527976 | SCR-RHCAR-M8X1.25X25 8.8 SPEC | 2 | $1.99 | In stock | |
| 18 | 7547144 | NUT-NYLOCK M8X1.25-Y | 2 | Price TBD | Out of stock | |
| 19 | 5415787 | STOP-MAGNET,BMPR,V2 | 1 | Price TBD | Out of stock | |
| 20 | 2417688 | ASM-WINCH AUTOSTOP CNTRL,ATV | 1 | $29.99 | In stock |
