Schematic diagram
Polaris•Schematic assembly

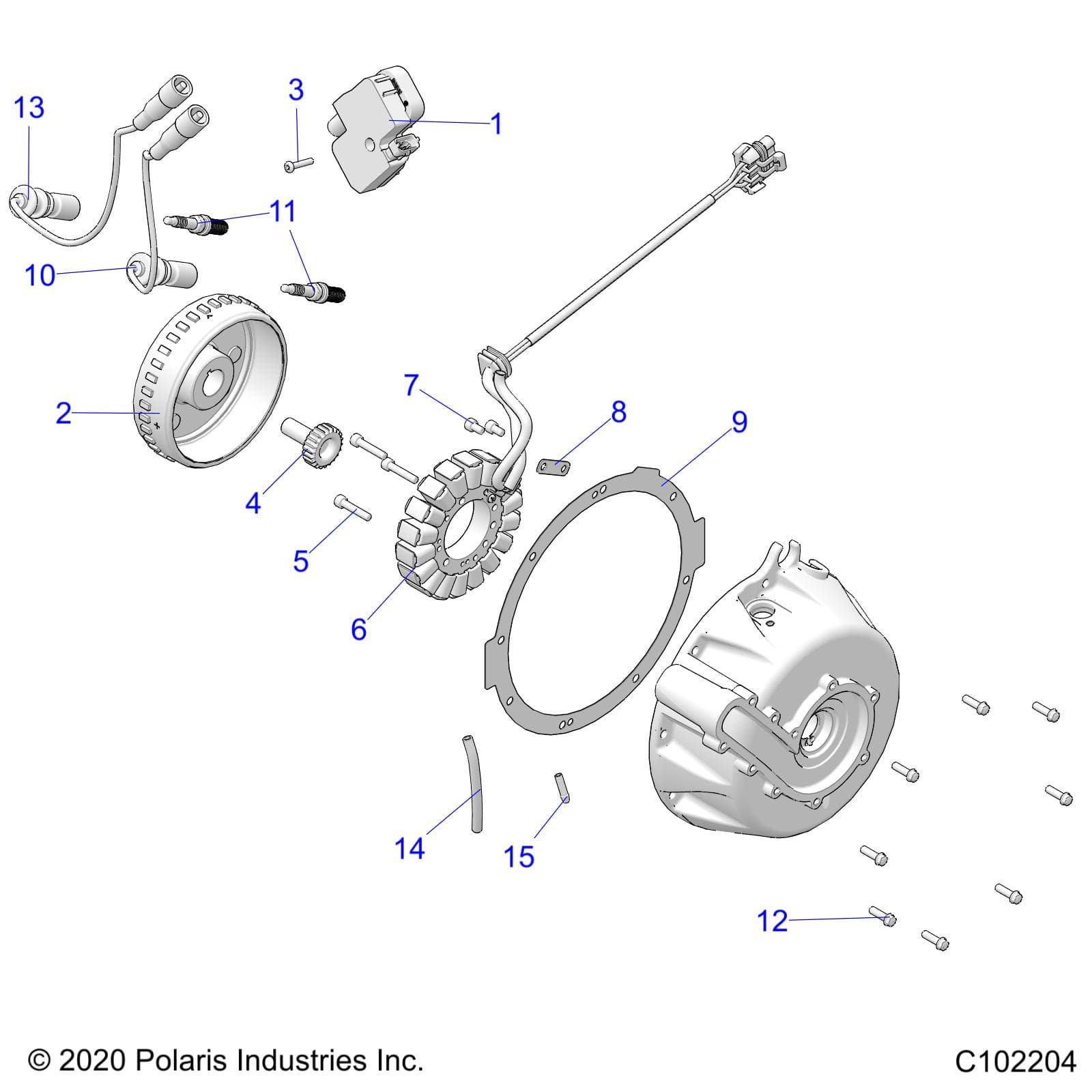

ELECTRICAL, IGNITION SYSTEM - A26SXR95AG (C102204)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG Assembly ID: 247222
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 2 | 4080627 | FLYWHEEL, 560 WATT [TO 4/2/2027] | 1 | $369.99 | In stock | |
| 2 | 4015585 | FLYWHEEL, 560 WATT [FRM 4/2/2027] | 1 | Price TBD | Out of stock | |
| 3 | 7518922 | SCR-10X1.00 TX PN HI/LO-Y | 1 | Price TBD | Out of stock | |
| 4 | 5140078 | BOLT, WATER PUMP DRIVE, LH | 1 | $39.99 | In stock | |
| 5 | 7527858 | SCR-M6X1.0X30,HX/SOC/CP-Y/D | 3 | $6.99 | In stock | |
| 6 | 4080574 | STATOR,560W | 1 | $589.99 | In stock | |
| 7 | 7527859 | SCR-M6X1.0X10,SHCS | 2 | $5.99 | In stock | |
| 8 | 5271377 | RETAINER-STATOR WIRE | 1 | $7.99 | In stock | |
| 9 | 5813680 | GASKET, STATOR COVER | 1 | $49.99 | In stock | |
| 10 | 4013328 | WIRE, SPARK PLUG, PTO | 1 | $74.99 | In stock | |
| 11 | 3022553 | SPARKPLUG, 12MM [TO 3/30/2026] | 2 | $9.99 | In stock | |
| 11 | 3022438 | SPARKPLUG-12MM REA6MC [FRM 3/30/2026] | 2 | $7.99 | In stock | |
| 12 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 8 | Price TBD | Out of stock | |
| 13 | 4013327 | WIRE, SPARK PLUG, MAG | 1 | $64.99 | In stock | |
| 14 | 8360077 | TUBING, NYLON | 1 | Price TBD | Out of stock | |
| 15 | 7052463 | FITTING | 1 | $11.99 | In stock |
