Schematic diagram
Polaris•Schematic assembly

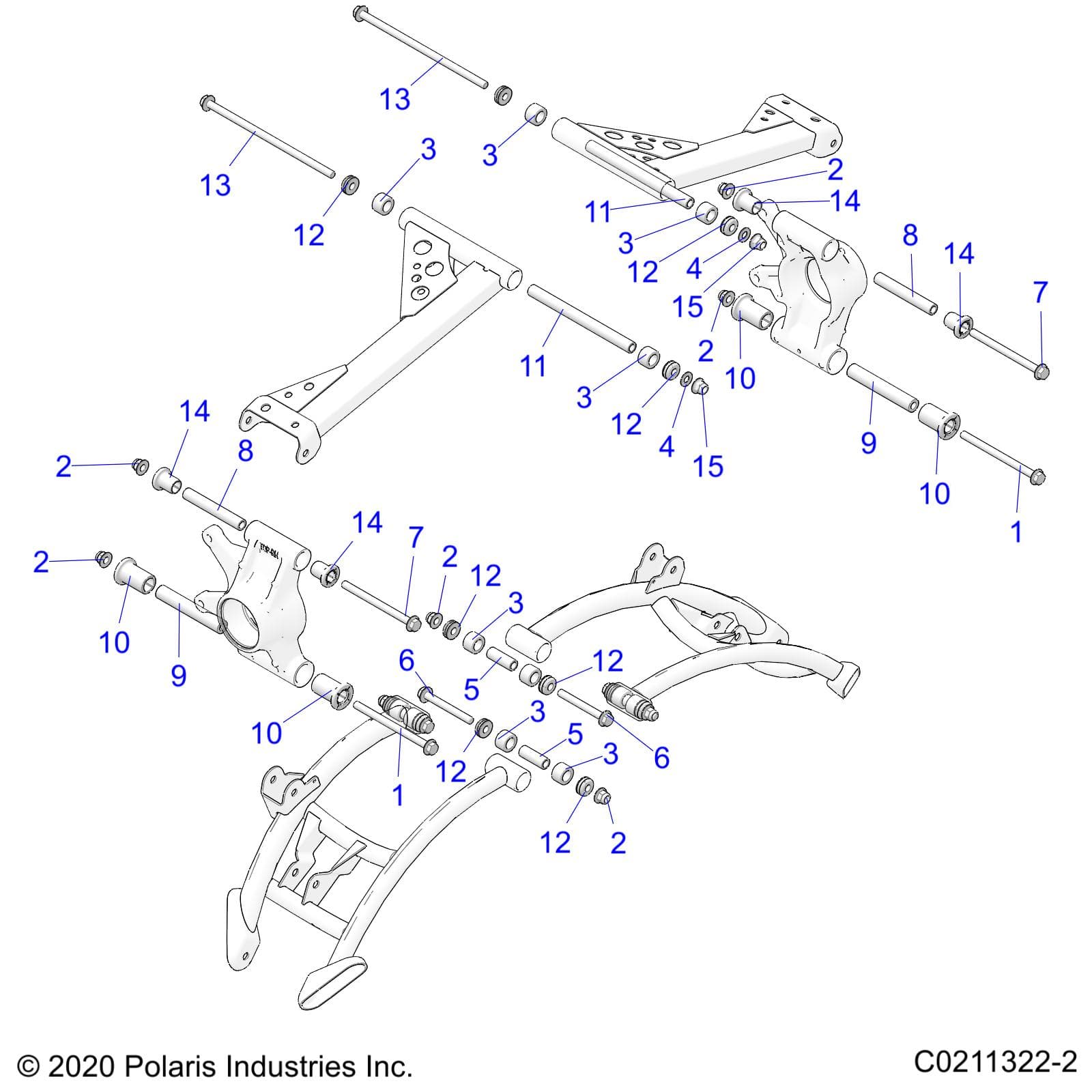

SUSPENSION, REAR CONTROL ARM MOUNTING - A26SXR95AG (C0211322-2)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG Assembly ID: 247252
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG
Checkout Note
Please note that 6 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7518467 | SCR-HXFL-M10X1.5X140 8.8 ZY3 | 2 | $6.99 | In stock | |
| 2 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 8 | Price TBD | Out of stock | |
| 3 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 12 | Price TBD | Out of stock | |
| 4 | 7556153 | WASHER-3/8 FW SAE STL THRU-HRD | 2 | Price TBD | Out of stock | |
| 5 | 5141292 | SHAFT-PIVOT,SHORT,M10,43MM | 4 | $4.99 | In stock | |
| 6 | 7518466 | SCR-HXFL-M10X1.5X85 8.8 ZY3 | 4 | $5.99 | In stock | |
| 7 | 7518675 | BOLT, FLANGE | 2 | $6.99 | In stock | |
| 8 | 5137590 | SHAFT, PIVOT | 2 | $10.99 | Out of stock Est. Jul 22, 2026 | |
| 9 | 5145086 | SHAFT-A-ARM,LCA,0.75" OD | 2 | $44.99 | In stock | |
| 10 | 5437651 | BUSHING, LOWER CONTROL ARM | 4 | $7.99 | In stock | |
| 11 | 5141510 | SHAFT-PIVOT,190MM,M10 | 2 | $34.99 | In stock | |
| 12 | 1543611 | ASM-PIVOT CAP, SEALED, M10 | 12 | Price TBD | Out of stock | |
| 13 | 7519086 | SCR-HXFL-M10X1.25X235 10.9 ZOD | 2 | $34.99 | In stock | |
| 14 | 1543367 | ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL] | 4 | $12.99 | In stock | |
| 14 | 5439874 | BUSHING-STANDARD,ORV | 4 | $2.99 | In stock | |
| 14 | 1543367 | ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL] | 4 | $12.99 | In stock | |
| 14 | 5439874 | BUSHING-STANDARD,ORV | 4 | $2.99 | In stock | |
| 14 | 1543367 | ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL] | 4 | $12.99 | In stock | |
| 14 | 5439874 | BUSHING-STANDARD,ORV | 4 | $2.99 | In stock | |
| 14 | 1543367 | ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL] | 4 | $12.99 | In stock | |
| 14 | 5439874 | BUSHING-STANDARD,ORV | 4 | $2.99 | In stock | |
| 15 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock |
