Polaris•Schematic assembly
ELECTRICAL, HARNESS COMPONENTS - R26RRY99A9/AF/AH/AB/AS/B9/BH/BB/BS (C733232)
Product Description

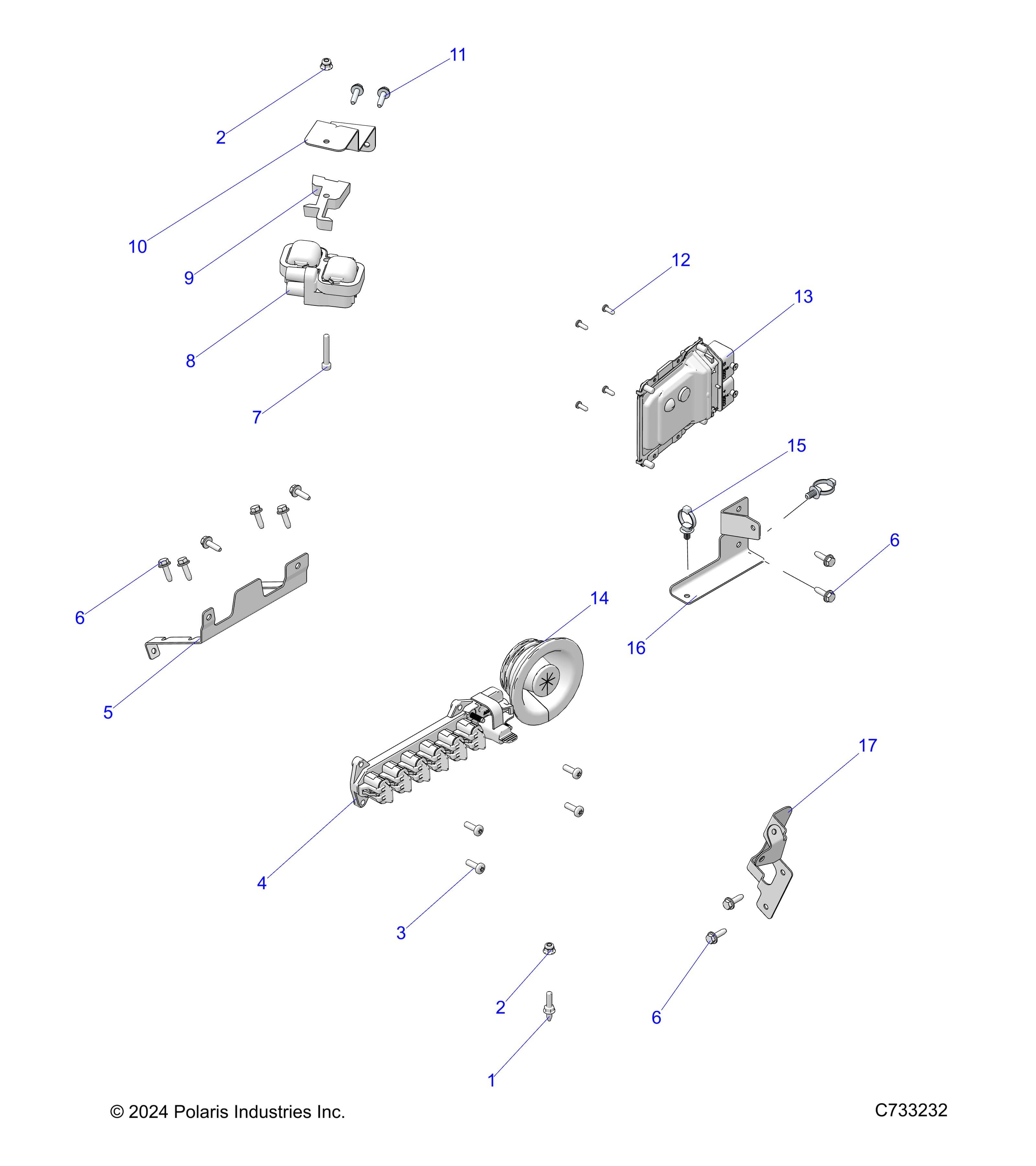

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE Assembly ID: 247337
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7519333 | STUD-M6X1.0X19-M6 TAPTITE | 1 | $9.99 | In stock | |
| 2 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | $1.99 | In stock | |
| 3 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock | |
| 4 | 4016007 | BLOCK-TERMINAL,3 POST,TALL [INCLUDES FUSE, PLUG & COVER] | 1 | $44.99 | Out of stock Est. Aug 21, 2026 | |
| 4 | 4013891 | FUSE-CARTRIDGE,40A | 1 | $44.99 | In stock | |
| 4 | 5454283 | PLUG,ACCY TB | 1 | $54.99 | In stock | |
| 4 | 5454284 | COVER,TB,JCASE | 1 | $39.99 | In stock | |
| 5 | 5271546-329 | BRKT-FUSE HOLDER,PREM,BLK | 1 | $34.99 | In stock | |
| 6 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 10 | $1.49 | In stock | |
| 7 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 8 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 9 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 10 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 11 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 2 | $4.99 | In stock | |
| 12 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 12 | 5276381-329 | BRKT-ROUTING,ECOAT | 1 | Price TBD | Out of stock | |
| 13 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | $869.99 | In stock | |
| 14 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 15 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 0 | $2.99 | In stock | |
| 16 | 5275805 | BRKT-HARNESS ROUTING | 1 | $14.99 | In stock |
