Schematic diagram
Polaris•Schematic assembly

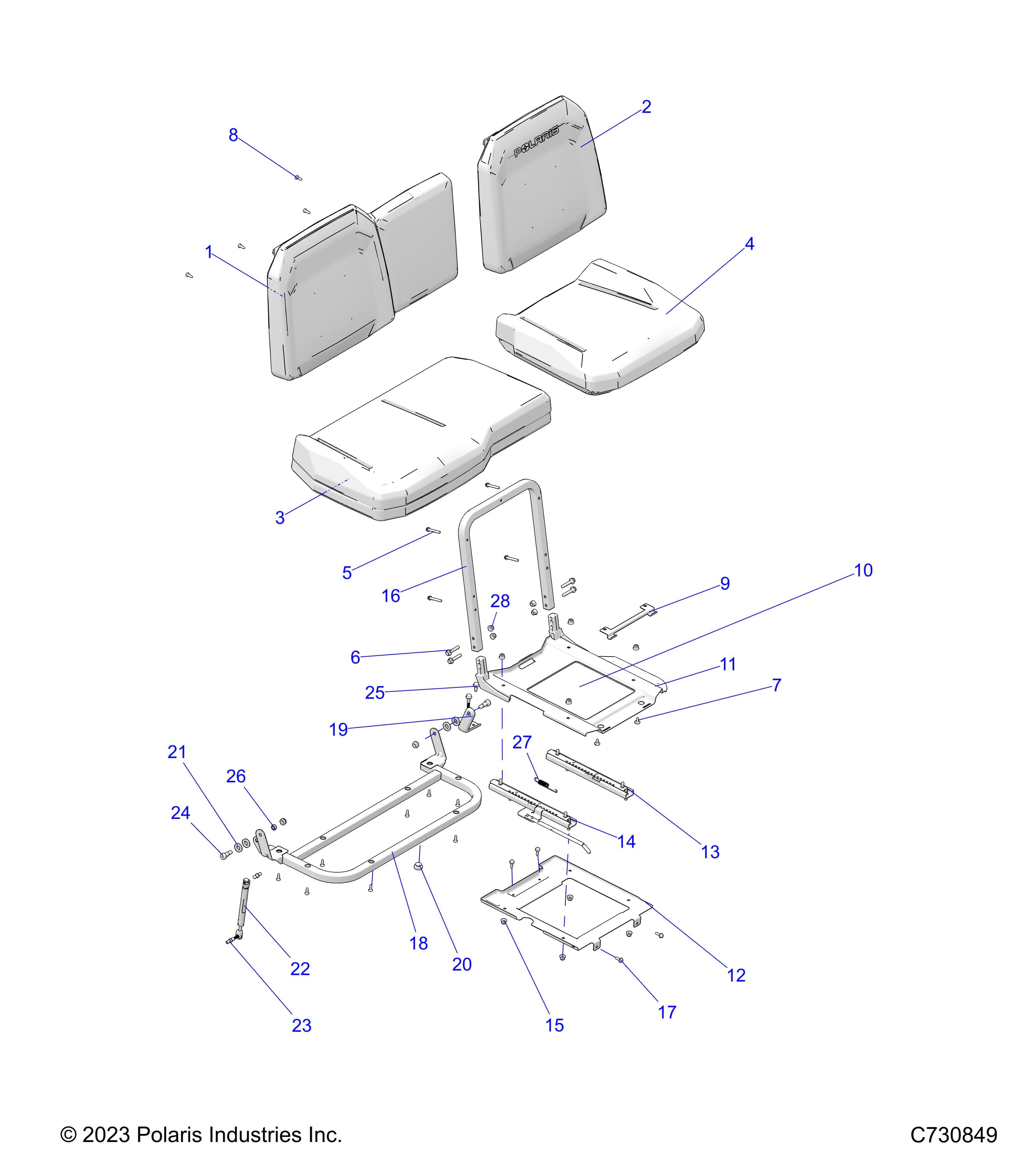

BODY, SEAT ASSEMBLY & SLIDER - R26RSE99A9/B9/AF/BF/AH/BH/AB/BB/AS/BS (C700069)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW PREMIUM Assembly ID: 247386
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW PREMIUM
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2693122 | ASM-SEAT,BACK,60,BLK/PPC [POLARIS PURSUIT CAMO] | 1 | $419.99 | In stock | |
| 1 | 2692602 | ASM-SEAT,BACK,60,BLACK [ORANGE RUST/STEALTH GRAY/BLUE LABYRINTH/SUNSET RED] | 1 | $419.99 | Out of stock Est. Jul 23, 2026 | |
| 2 | 2693123 | ASM-SEAT,BACK,40,BLK/PPC [POLARIS PURSUIT CAMO] | 1 | $364.99 | In stock | |
| 2 | 2692603 | ASM-SEAT,BACK,40,BLACK [ORANGE RUST/STEALTH GRAY/BLUE LABYRINTH/SUNSET RED] | 1 | $364.99 | Out of stock Est. Jul 23, 2026 | |
| 3 | 2693121 | ASM-SEAT,BTM,60,BLK/PPC [POLARIS PURSUIT CAMO] | 1 | $499.99 | In stock | |
| 3 | 2691813 | ASM-SEAT,BTM,60,BLACK [ORANGE RUST/STEALTH GRAY/BLUE LABYRINTH/SUNSET RED] | 1 | $499.99 | Out of stock Est. Jul 23, 2026 | |
| 4 | 2693120 | ASM-SEAT,BTM,40,FLIP,PPC,DS [POLARIS PURSUIT CAMO] | 1 | $449.99 | In stock | |
| 4 | 2691818 | ASM-SEAT,BTM,40,FLIP,BLK,DS [ORANGE RUST/STEALTH GRAY/BLUE LABYRINTH/SUNSET RED] | 1 | $449.99 | In stock | |
| 5 | 7512093 | SCR-#14X1-3/4 LG,HI/LO/TAPER-M | 4 | $1.49 | In stock | |
| 6 | 7521332-45 | SCR-HXFL-M8X1.25X45 10.9 ZFB | 4 | $3.99 | In stock | |
| 7 | 7518936 | SCR-M6X1X16 TR/TX-M | 2 | $4.99 | In stock | |
| 8 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 12 | $3.99 | In stock | |
| 9 | 5265262-458 | BRKT-SEAT HINGE,DOUBLE,BLK | 1 | $34.99 | In stock | |
| 10 | 2688492 | ASM-SLIDE,SEAT [INCLUDES 11-15 & 27] | 1 | $559.99 | In stock | |
| 11 | 1023808-458 | WELD-SLIDE,SEAT,TOP,BLK | 1 | $109.99 | In stock | |
| 12 | 5270799-458 | BRKT-SEAT,BTM,BLK | 1 | $79.99 | In stock | |
| 13 | 7082834 | SLIDER-SEAT ADJUSTER,LH,4IN | 1 | $64.99 | In stock | |
| 14 | 7082835 | SLIDER-SEAT ADJUSTER,RH,4IN [TO 7/20/2026] | 1 | $64.99 | In stock | |
| 14 | 7083178 | SLIDER-SEAT ADJUSTER,RH,4IN [FROM 7/20/2026] | 1 | Price TBD | Out of stock | |
| 15 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [TO 06/15/2026] | 12 | $4.99 | In stock | |
| 15 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D [FROM 06/15/2026] | 4 | $4.99 | In stock | |
| 15 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL [FROM 06/15/2026] | 8 | $2.99 | In stock | |
| 16 | 5340280-458 | TUBE-SEAT,BACK,BLK | 1 | $89.99 | In stock | |
| 17 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | $1.49 | In stock | |
| 18 | 1024457-329 | WELD-SEAT BASE, MAIN, ECOAT | 1 | $304.99 | In stock | |
| 19 | 5263494-458 | BRKT-SEAT PIVOT, BLK | 1 | $94.99 | In stock | |
| 20 | 5412067 | BUMPER-RUBBER | 1 | $4.99 | In stock | |
| 21 | 5813829 | WASHER-SEATBELT,RUBBER | 4 | $1.49 | In stock | |
| 22 | 7046186 | SHOCK-GAS,285MM | 1 | $49.99 | In stock | |
| 23 | 7083089 | BALL-END | 2 | $3.49 | In stock | |
| 24 | 7519355 | SCR-SHS-M10X1.5-M12X16 RIE | 2 | $12.99 | In stock | |
| 25 | 7519780 | SCR-HFH-M8X1.25X20 TAP/R ZPB | 2 | $5.99 | In stock | |
| 26 | 7547442 | NUT-HEX M10X1.5 8 ZOD NYL | 2 | $4.99 | In stock | |
| 27 | 7082802 | SPRING-SEAT SLIDER | 1 | $8.99 | In stock | |
| 28 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 4 | $2.99 | In stock |
