Schematic diagram
Polaris•Schematic assembly

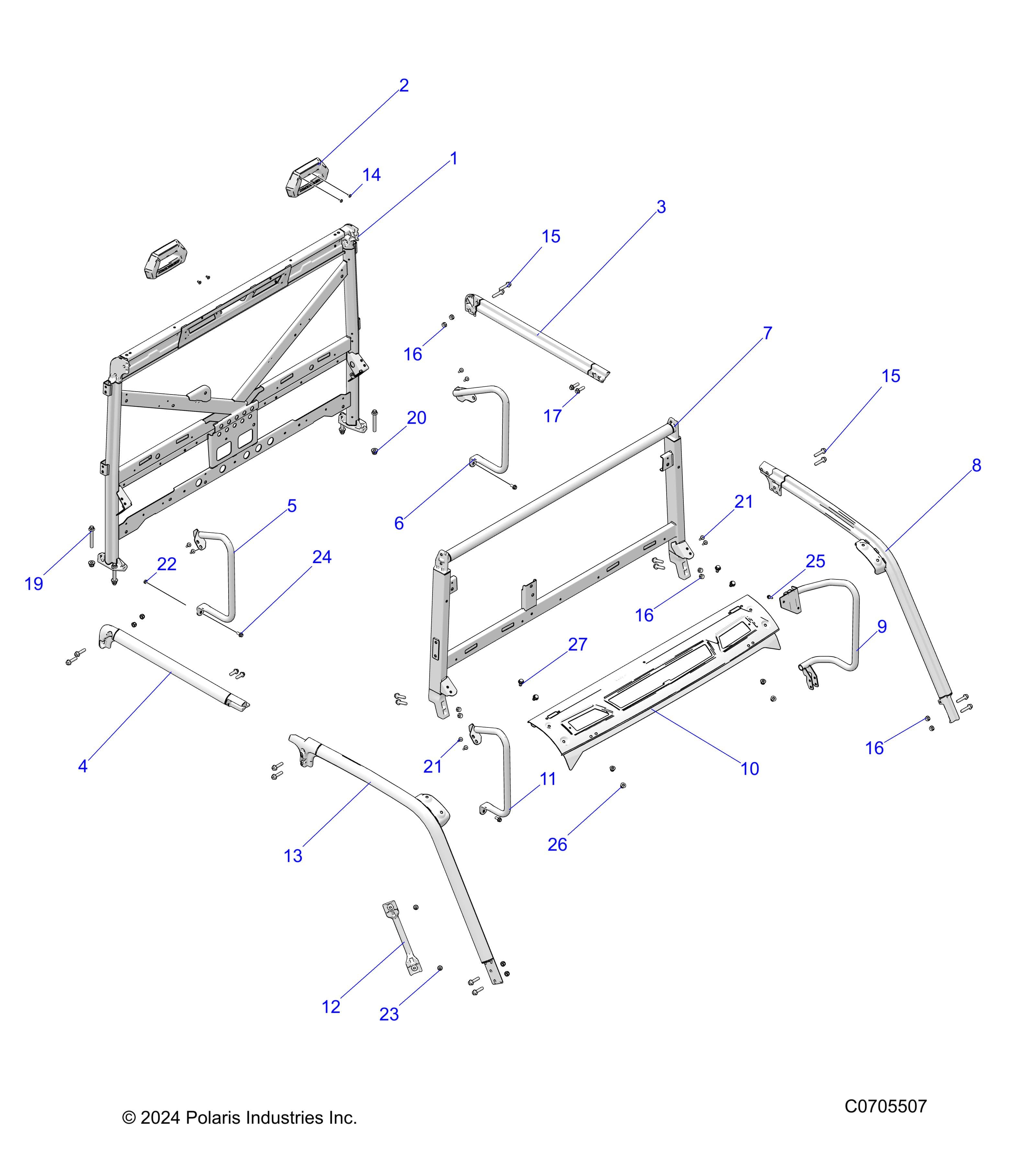

CHASSIS, CAB FRAME - R26RSE99A9/B9/AF/BF/AH/BH/AB/BB/AS/BS (C0705507)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW PREMIUM Assembly ID: 247391
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW PREMIUM
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029158-458 | WELD-CAB FRAME,REAR,M.BLK | 1 | $1,299.99 | Out of stock Est. Aug 6, 2026 | |
| 2 | 5456311-070 | HEADREST-BASIC,RGR,BLK | 2 | $69.99 | In stock | |
| 3 | 1023338-458 | WELD-CAB FRAME, REAR, LH, BLK | 1 | $124.99 | In stock | |
| 4 | 1023339-458 | WELD-CAB FRAME, REAR, RH, BLK | 1 | $124.99 | In stock | |
| 5 | 1024804-458 | WELD-BOLSTER,RH, M.BLK | 1 | $84.99 | In stock | |
| 6 | 1024803-458 | WELD-BOLSTER,LH, M.BLK | 1 | $84.99 | Out of stock Est. Aug 19, 2026 | |
| 7 | 1029220-458 | WELD-CAB FRAME,CTR,BLK | 1 | $519.99 | In stock | |
| 8 | 1023336-458 | WELD-CAB FRAME, FRT, LH, BLK | 1 | $409.99 | In stock | |
| 9 | 1029531-458 | WELD-BOLSTER,SEAT,M.BLK | 1 | $69.99 | In stock | |
| 10 | 2208970 | K-PLATE,WSHLD MNT,UPR,RGR CREW [INCLUDES DECALS] | 1 | $274.99 | Out of stock Est. Jul 13, 2026 | |
| 11 | 1029255-458 | WELD-BOLSTER,FRONT,RH,M.BLK | 1 | $69.99 | Out of stock Est. Oct 6, 2026 | |
| 12 | 5450844-070 | HANDLE-GRAB,ROPS,BLK | 1 | $39.99 | In stock | |
| 13 | 1023337-458 | WELD-CAB FRAME, FRT, RH, BLK | 1 | $409.99 | In stock | |
| 14 | 7621460 | RIVET-POP 3/16 (.376-.500) AL-LFB | 4 | $1.49 | In stock | |
| 15 | 7521333-45 | SCR-HXFL-M10X1.5X45 10.9 ZFB | 16 | $3.99 | In stock | |
| 16 | 7547746 | NUT-HEX-M10X1.5 10 ZB3 NYL | 12 | $2.99 | In stock | |
| 17 | 7518334 | SCREW-M10X1.50X35 HX/FL-Y/D | 4 | $5.99 | In stock | |
| 19 | 7521334-90 | SCR-HXFL-M12X1.75X9010.9 ZFB | 4 | $2.99 | Out of stock Est. Jul 20, 2026 | |
| 20 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 4 | $3.99 | In stock | |
| 21 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 8 | $4.99 | In stock | |
| 22 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 2 | $2.99 | In stock | |
| 23 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | $2.99 | In stock | |
| 24 | 7519133 | SCREW-HXFL-M8X1.25X20 8.8 ZOD P3 | 3 | $1.99 | In stock | |
| 25 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | $1.49 | In stock | |
| 26 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | $2.99 | In stock | |
| 27 | 7519905 | SCR-HXFL-M10X1.5X20 10.9 RIE P | 4 | $2.99 | In stock |
