Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS, COMPONENTS
Product Description

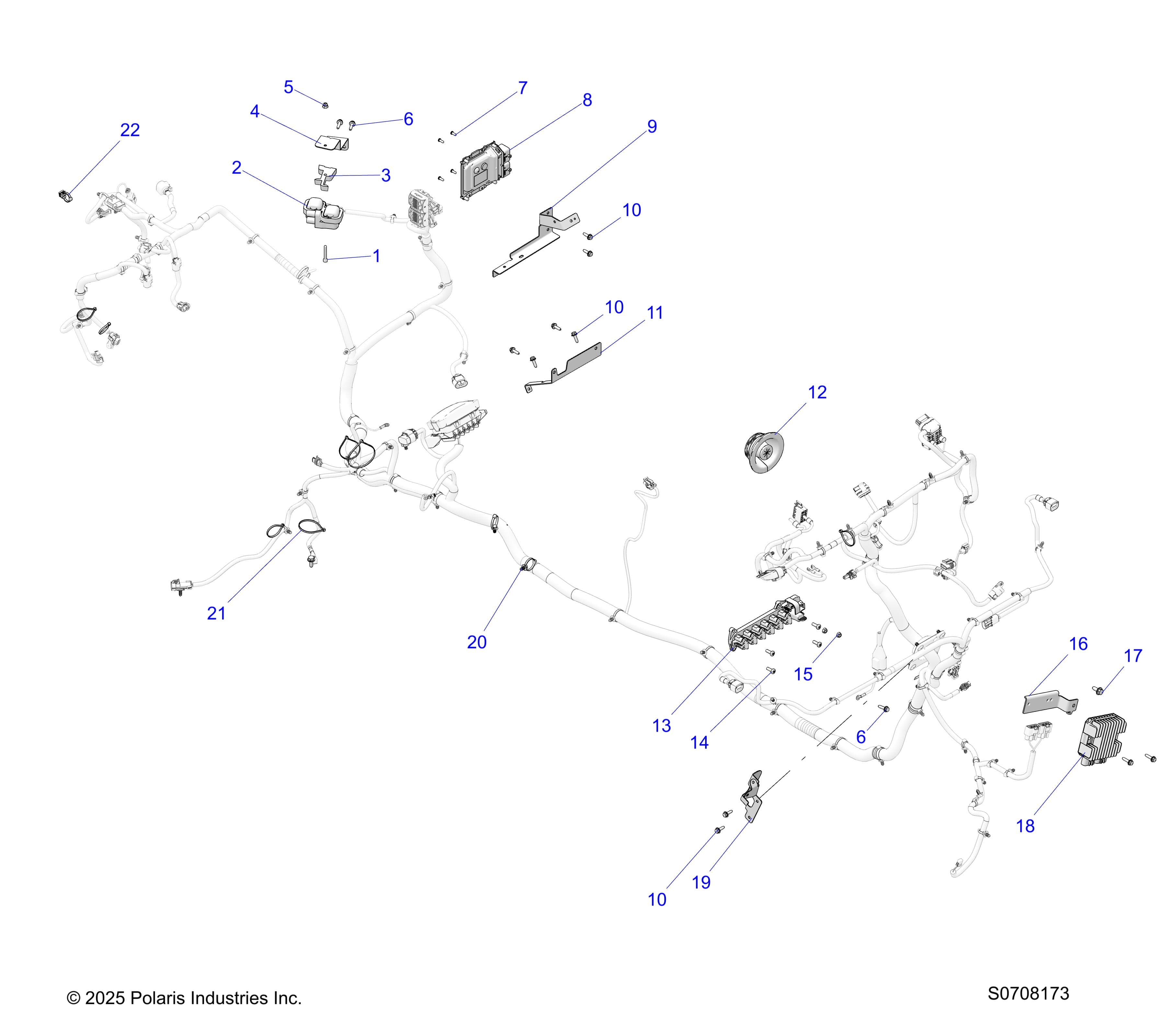

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW PREMIUM Assembly ID: 247490
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW PREMIUM
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 2 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 3 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 4 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 5 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 1 | $1.99 | In stock | |
| 6 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 5 | $4.99 | In stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 8 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | $869.99 | In stock | |
| 9 | 5275805 | BRKT-HARNESS ROUTING | 1 | $14.99 | In stock | |
| 10 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 10 | $1.49 | In stock | |
| 11 | 5271547-329 | BRKT-FUSE HOLDER,BLK | 1 | $17.99 | In stock | |
| 12 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 13 | 4016007 | BLOCK-TERMINAL,3 POST,TALL [INCLUDES FUSE, PLUG & COVER] | 1 | $44.99 | Out of stock Est. Aug 21, 2026 | |
| 13 | 4013891 | FUSE-CARTRIDGE,40A | 1 | $44.99 | In stock | |
| 13 | 5454283 | PLUG,ACCY TB | 6 | $54.99 | In stock | |
| 13 | 5454284 | COVER,TB,JCASE | 1 | $39.99 | In stock | |
| 14 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock | |
| 15 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 2 | $4.99 | In stock | |
| 16 | 5274251 | BRKT-MOUNT,REGULATOR,LH | 1 | $10.99 | In stock | |
| 17 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 1 | $2.99 | In stock | |
| 18 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | $164.99 | In stock | |
| 19 | 5268050-329 | BRKT-ROUTING,BLK [TO 02/06/2026] | 1 | $34.99 | In stock | |
| 19 | 5276381-329 | BRKT-ROUTING,ECOAT [FROM 02/26/2026] | 1 | Price TBD | Out of stock | |
| 20 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 0 | $5.99 | In stock | |
| 21 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 0 | $2.99 | In stock | |
| 22 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 2 | $5.99 | In stock |
