Schematic diagram
Polaris•Schematic assembly

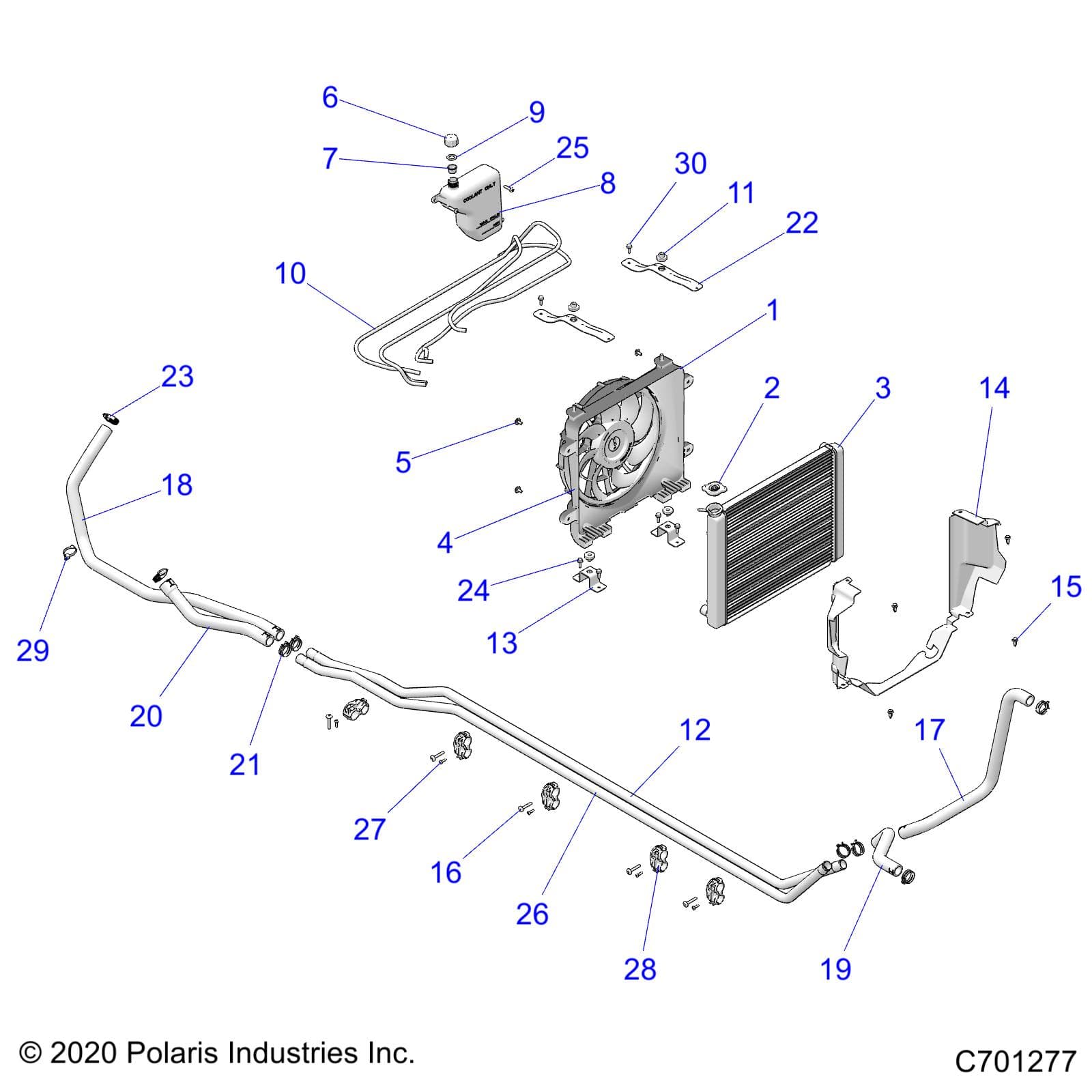

ENGINE, COOLING SYSTEM - R26RSF99AL (C701277)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW TEXAS EDITION Assembly ID: 247493
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW TEXAS EDITION
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1240663 | ASM-RADIATOR [INCLUDES 2-5] | 1 | $829.99 | In stock | |
| 2 | 1240694 | CAP | 1 | $49.99 | In stock | |
| 3 | 1240664 | ASM-RADIATOR,CORE | 1 | $589.99 | In stock | |
| 4 | 2411816 | FAN-ASSEMBLY | 1 | $429.99 | In stock | |
| 5 | 7519585 | BOLT, M6X15MM | 4 | $11.99 | In stock | |
| 6 | 5430743 | CAP-OVER FLOW BOTTLE,DRILLED | 1 | $6.99 | In stock | |
| 7 | 5433774 | PLUG-CAP 9X(GREEN) FLEX TEMP | 1 | $6.99 | In stock | |
| 8 | 5439202 | TANK-SURGE | 1 | $119.99 | In stock | |
| 9 | 5810279 | GASKET-OVERFLOW CAP | 1 | $2.99 | In stock | |
| 10 | 8450003-95 | FUEL LINE-95 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 11 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | $7.99 | In stock | |
| 12 | 5340378 | TUBE-COOLANT,1",UPPER | 1 | $79.99 | In stock | |
| 13 | 5269633-329 | BRKT-RADIATOR MNT,LWR,BLK | 2 | $17.99 | In stock | |
| 14 | 5459847-070 | SHROUD-RADIATOR,FRONT,BLK | 1 | $69.99 | In stock | |
| 15 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | $1.49 | In stock | |
| 16 | 7519001 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 5 | $4.99 | In stock | |
| 17 | 5416137 | HOSE-UPPER,RAD | 1 | $54.99 | In stock | |
| 18 | 5416140 | HOSE-ENG,OUT | 1 | $59.99 | In stock | |
| 19 | 5416138 | HOSE-LOWER,RAD | 1 | $44.99 | In stock | |
| 20 | 5416139 | HOSE-ENG,IN | 1 | $18.99 | In stock | |
| 21 | 7080844 | SPRINGBAND-CLAMP 35/12,BLK | 6 | $12.99 | In stock | |
| 22 | 5263654-329 | BRKT-RADIATOR MOUNT,BLK | 2 | $14.99 | In stock | |
| 23 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | $9.99 | In stock | |
| 24 | 7518936 | SCR-M6X1X16 TR/TX-M | 4 | $4.99 | In stock | |
| 25 | 7518158 | SCR-#14X1 HI/LO-PH-PN TRX-M | 2 | $5.99 | In stock | |
| 26 | 5340377 | TUBE-COOLANT,1" | 1 | $79.99 | In stock | |
| 27 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 5 | $1.49 | In stock | |
| 28 | 5453767 | CLIP-COOLANT ROUTING | 5 | $6.99 | In stock | |
| 29 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | $5.99 | In stock | |
| 30 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | $1.49 | In stock |
