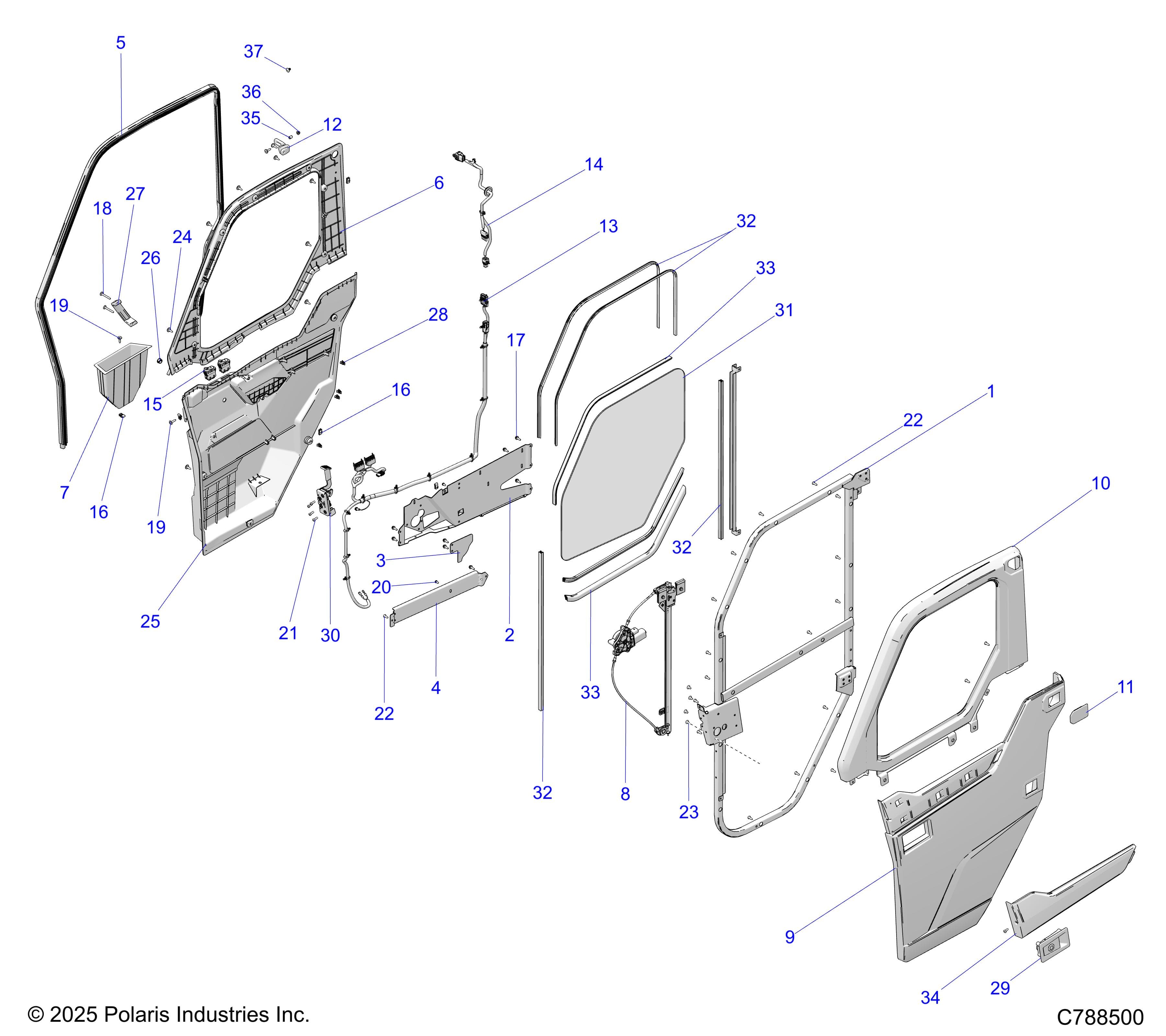

Schematic diagram
Polaris•Schematic assembly
BODY, DOOR, FRONT, FULL, POWER - R26RST99AL (C733247)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION Assembly ID: 247527
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION
Checkout Note
Please note that 18 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2213090 | K-SVC,DOOR,FRT,PWR,TINT,LH | 1 | $2,099.99 | Out of stock | |
| - | 2213091 | K-SVC,DOOR,FRT,PWR,TINT,RH | 1 | $2,099.99 | Out of stock | |
| 1 | 1028570-329 | WELD-FULL DOOR,LH,ECOAT | 1 | $369.99 | In stock | |
| 1 | 1028571-329 | WELD-FULL DOOR,RH,ECOAT | 1 | $369.99 | In stock | |
| 2 | 2213219 | K-BRACKET,MOTOR MNT,FRONT,LH | 1 | Price TBD | Out of stock | |
| 2 | 2213220 | K-BRACKET,MOTOR MNT,FRONT,RH | 1 | Price TBD | Out of stock | |
| 3 | 5272095-329 | BRKT-PWR,HARNESS,ROUTING,ECOAT [TO 05/01/2026] | 1 | $34.99 | In stock | |
| 4 | 5273034-458 | BRKT-REGULATOR,MNT,FR,BK | 1 | $34.99 | In stock | |
| 5 | 2211603 | K-HDWR,SVC,SEAL,DOOR,FRT,LH [TO 09/05/2025] | 1 | $89.99 | In stock | |
| 5 | 2213035 | K-HDWR,SVC,SEAL,DOOR,LH [FROM 09/05/2025] | 1 | $99.99 | Out of stock Est. Nov 6, 2026 | |
| 5 | 2211604 | K-HDWR,SVC,SEAL,DOOR,FRT,RH [TO 09/05/2025] | 1 | $89.99 | In stock | |
| 5 | 2213036 | K-HDWR,SVC,SEAL,DOOR,RH [FROM 09/05/2025] | 1 | $99.99 | Out of stock Est. Nov 6, 2026 | |
| 6 | 5453997-070 | PANEL-DOOR,INT,LH,BLK | 1 | $74.99 | In stock | |
| 6 | 5453998-070 | PANEL-DOOR,INT,RH,BLK | 1 | $74.99 | In stock | |
| 7 | 5459660-070 | BOX-STORAGE,BLK | 1 | $16.99 | In stock | |
| 8 | 2638585 | ASM-REGULATOR,POWER WINDOW,LH | 1 | Price TBD | Out of stock | |
| 8 | 2638586 | ASM-REGULATOR,POWER WINDOW,RH | 1 | Price TBD | Out of stock | |
| 9 | 5453995-070 | PANEL-DOOR,LWR,EXT,LH,BLK | 1 | Price TBD | Out of stock | |
| 9 | 5453996-070 | PANEL-DOOR,LWR,EXT,RH,BLK | 1 | Price TBD | Out of stock | |
| 10 | 5454001-070 | PANEL-DOOR,WNDW,EXT,LH,BLK | 1 | $169.99 | In stock | |
| 10 | 5454002-070 | PANEL-DOOR,WNDW,EXT,RH,BLK | 1 | $169.99 | In stock | |
| 11 | 5454163-070 | HINGE-COVER,BLK | 1 | Price TBD | Out of stock | |
| 12 | 5450947 | STRAP-RUBBER,DOOR LIMIT,TTN | 1 | $12.99 | In stock | |
| 13 | 4016942 | HARNESS-DOOR,LH [TO 05/01/2026] | 1 | $174.99 | In stock | |
| 13 | 4083393 | HARNESS-DOOR,LH [FROM 05/01/2026] | 1 | Price TBD | Out of stock | |
| 13 | 4016943 | HARNESS-DOOR,RH [TO 05/01/2026] | 1 | $174.99 | In stock | |
| 13 | 4083394 | HARNESS-DOOR,RH [FROM 05/01/2026] | 1 | Price TBD | Out of stock | |
| 14 | 4080181 | HARNESS-DOOR,JUMPER [TO 05/01/2026] | 1 | Price TBD | Out of stock | |
| 16 | 7081305 | CLIP-U SPEED NUT | 5 | $2.49 | In stock | |
| 17 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK [TO 05/01/2026] | 9 | $1.49 | In stock | |
| 17 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK [FROM 05/01/2026] | 7 | $1.49 | In stock | |
| 18 | 7519220 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 2 | $1.99 | In stock | |
| 19 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 3 | $4.99 | In stock | |
| 20 | 7519063 | SCREW-TXBH-M6X1.0X12 8.8 ZPB D20 | 2 | $3.99 | In stock | |
| 21 | 7518616 | BOLT-M6X1.0X20,PH/TX-OLIVE D | 4 | $1.49 | In stock | |
| 22 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 19 | $3.99 | In stock | |
| 23 | 7518991 | SCR-M6X1.0X12 8.8 TXPH ZOD P30 | 4 | $5.99 | In stock | |
| 24 | 2207378 | RVT-1/4 X .08-.31,NYLON BLK | 10 | Price TBD | Out of stock | |
| 25 | 5459402-070 | PANEL-DOOR,HALF,INT,POW,LH,BLK | 1 | $349.99 | Out of stock Est. Oct 12, 2026 | |
| 25 | 5459403-070 | PANEL-DOOR,HALF,INT,POW,RH,BLK | 1 | $349.99 | Out of stock Est. Oct 12, 2026 | |
| 26 | 5459404 | PLUG-DOOR,WINDOW CRANK | 1 | $5.99 | In stock | |
| 27 | 5459167-070 | GRAB HANDLE,LH,BLK | 1 | $18.99 | In stock | |
| 27 | 5459168-070 | GRAB HANDLE,RH,BLK | 1 | $18.99 | In stock | |
| 28 | 7519806 | CLIP-DASH,TRIM,METAL | 5 | $4.99 | In stock | |
| 29 | 2211602 | K-HDWR,SVC,DOOR,HANDLE,OUT,FR | 1 | $74.99 | In stock | |
| 30 | 2212908 | K-HDWR,SVC,INNER LATCH [INCL. LH & RH LATCHES] | 1 | $169.99 | In stock | |
| 31 | 2213139 | K-GLASS,FR DOOR,TINT | 1 | $129.99 | In stock | |
| 31 | ------- | GLASS-DOOR,FRONT,TINT [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 32 | 2883782 | K-ACCY DOOR SEAL GLASS,L&R,ZS | 1 | $74.99 | In stock | |
| 33 | 2207718 | K-HRDWR DOOR SEAL,ZS | 1 | $74.99 | In stock | |
| 34 | 5454749-677 | PANEL-ACCNT,DOOR,LH,BCYTL | 1 | $84.99 | In stock | |
| 34 | 5454750-677 | PANEL-ACCNT,DOOR,RH,BCYTL | 1 | $84.99 | In stock | |
| 35 | 5139193 | SPACER-ALUM,M6,DOOR RETNR,TTN | 1 | $15.99 | In stock | |
| 36 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | $1.49 | In stock | |
| 37 | 7670088 | CLIP-PLASTIC DART, NYLON | 1 | $1.99 | In stock |
