2026 RANGER 1000 XP CREW NSTR ULTIMATE — ELECTRICAL, BATTERY diagram

Schematic diagram

Polaris•Schematic assembly

ELECTRICAL, BATTERY

Product Description

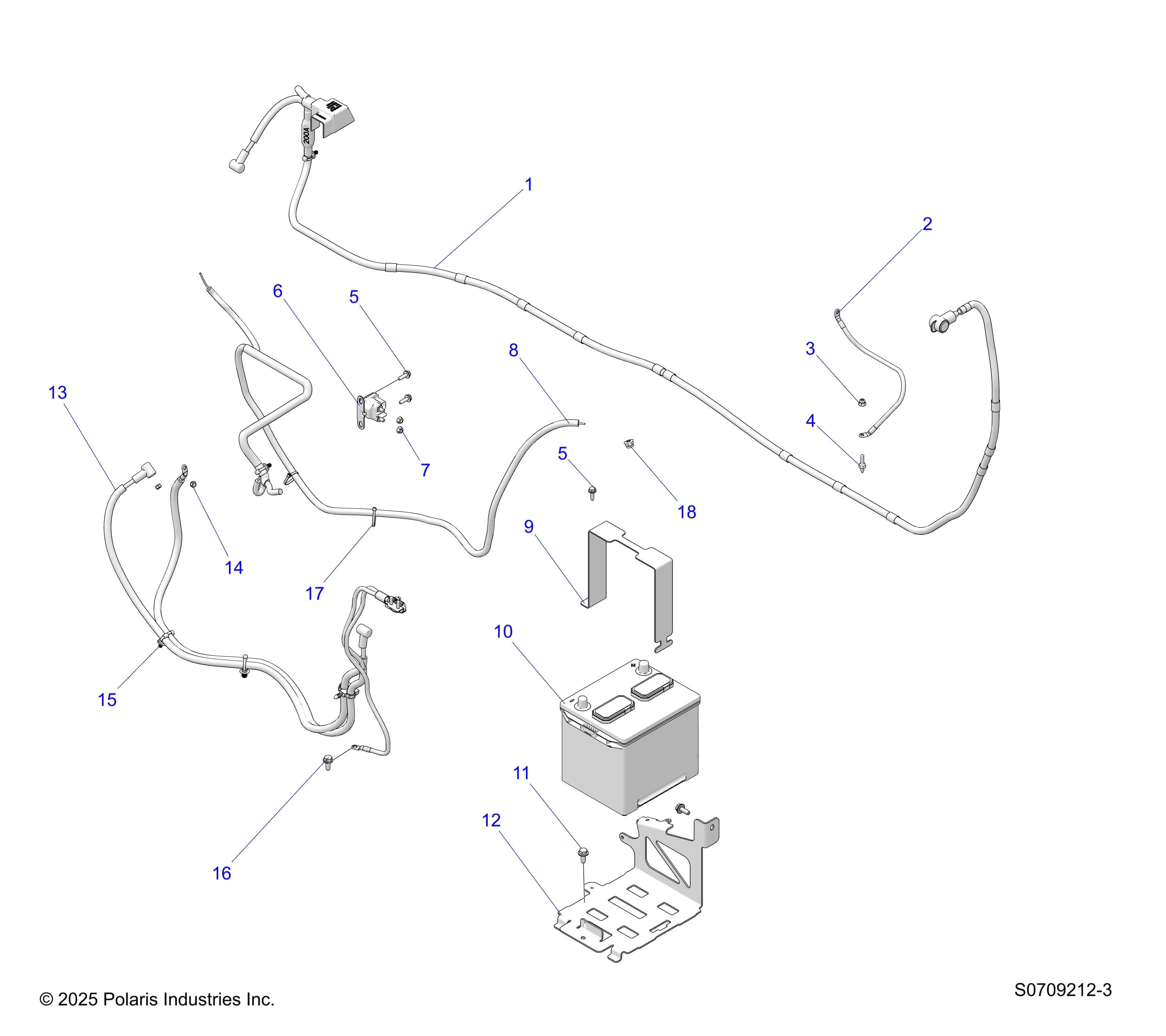

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 247558

Vehicle Compatibility

  • 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE

Checkout Note

Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
14080969CABLE-BATTERY TO SOLENOID1$184.99
Out of stock
Est. Aug 10, 2026
24080965CABLE-BAT TO GND1$44.99
In stock
37548027NUT-HXFL-M6X1.0 8 ZTB NYL1$1.99
In stock
47519333STUD-M6X1.0X19-M6 TAPTITE1$9.99
In stock
57518529SCR-M6X1.0X20,HXHD,FLG,TDFM,BK4$1.49
In stock
64014655SOLENOID-STARTER,SEALED1$54.99
In stock
77547270NUT-HXFLGHD, M6, SERRATED4$4.99
In stock
82417643HARNESS-ALTERNATOR1$199.99
In stock
95257827BRKT-BATTERY STRAP GALV1$44.99
In stock
104014132BATTERY-575 CCA,FLOODED,FILLED1Price TBD
Out of stock
104081855BATTERY-HD,AGM,SEALED,R2 [HD OPTION]1$239.99
In stock
117518555SCR-TFHFL-M8X1.25X20 CHS ZOD2$2.99
In stock
125271545-329BRKT-BATTERY TRAY, BLK1$59.99
Out of stock
Est. Aug 10, 2026
134080964CABLE-START TO SOLENOID1$124.99
In stock
147546703NUT-6MM X 1 NYLOK-Z2$1.49
In stock
157081496CLIP FIR-TREE,DIA6-33MM2$5.99
In stock
167520764SCR-HXFL-M8X1.25X20 TAP ZY31$5.99
In stock
177080138CABLE-TIE,DIA12-50MM,WTHR-RES.4$2.99
In stock
187548028NUT-HXFL-M8X1.25 8 ZTB NYL1$2.99
In stock
