Polaris•Schematic assembly

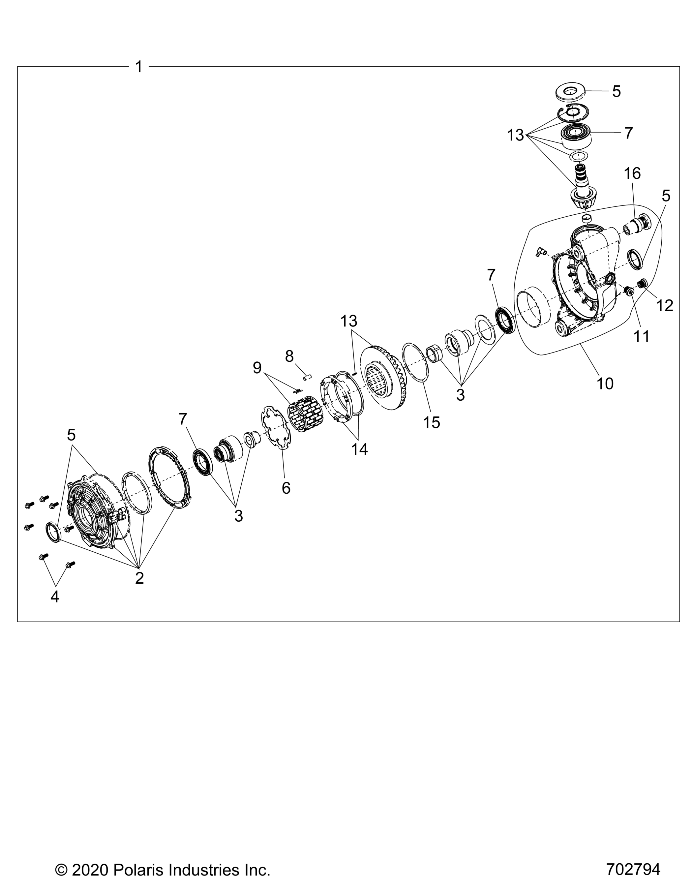

DRIVE TRAIN, FRONT GEARCASE INTERNALS - R26RST99AL (702794)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION Assembly ID: 247560
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1336961 | ASM-GRCASE,FRT,ISO,3.23,AL [TO 07/15/2026] [INCLS. ALL] | 1 | $2,099.99 | In stock | |
| 1 | 1337596 | ASM-GRCASE,FRT,ISO,3.25,LRZC [FROM 07/15/2026] [INCLS. ALL] | 1 | Price TBD | Out of stock | |
| 2 | 3236717 | ASM-COVER OUTPUT | 1 | $519.99 | In stock | |
| 3 | 3236763 | ASM-OUTPUT HUB, ALUM LG ROLL | 1 | $499.99 | In stock | |
| 4 | 3235483 | COVER-FASTNERS | 1 | $64.99 | In stock | |
| 5 | 3236719 | K-SEAL REPAIR | 1 | $124.99 | In stock | |
| 6 | 3236048 | PLATE-4WD ARMATURE | 1 | $139.99 | In stock | |
| 7 | 3236051 | BEARINGS | 1 | $194.99 | In stock | |
| 8 | 3235486 | CAGE ROLLERS [INCLUDES FULL ROLLER SET OF 24] | 1 | $9.99 | In stock | |
| 9 | 3236540 | ASM-ROLL CAGE [TO 07/15/2026] [INCLS. ROLL CAGE AND 24 H-CLIPS] | 1 | $314.99 | In stock | |
| 9 | 3239819 | ASM-ROLL CAGE [FROM 07/15/2026] [INCLS. ROLL CAGE AND 24 H-CLIPS] | 1 | Price TBD | Out of stock | |
| 10 | 3239319 | ASM-GEARCASE | 1 | $2,099.99 | In stock | |
| 11 | 2203738 | KIT-PLUG,DRAIN | 1 | $44.99 | In stock | |
| 12 | 2203739 | KIT-PLUG,FILL | 1 | $54.99 | In stock | |
| 13 | 3236764 | KIT-GEAR HOUSING & PINION GEAR ASSSY | 1 | $949.99 | In stock | |
| 14 | 3235712 | KIT-TORSION,SPRING AND RETAINER | 1 | $44.99 | In stock | |
| 15 | 3234437 | SPACER-RING GEAR | 1 | $24.99 | In stock | |
| 16 | 5417265 | KIT-ISOLATOR | 1 | $39.99 | In stock |
