Polaris•Schematic assembly

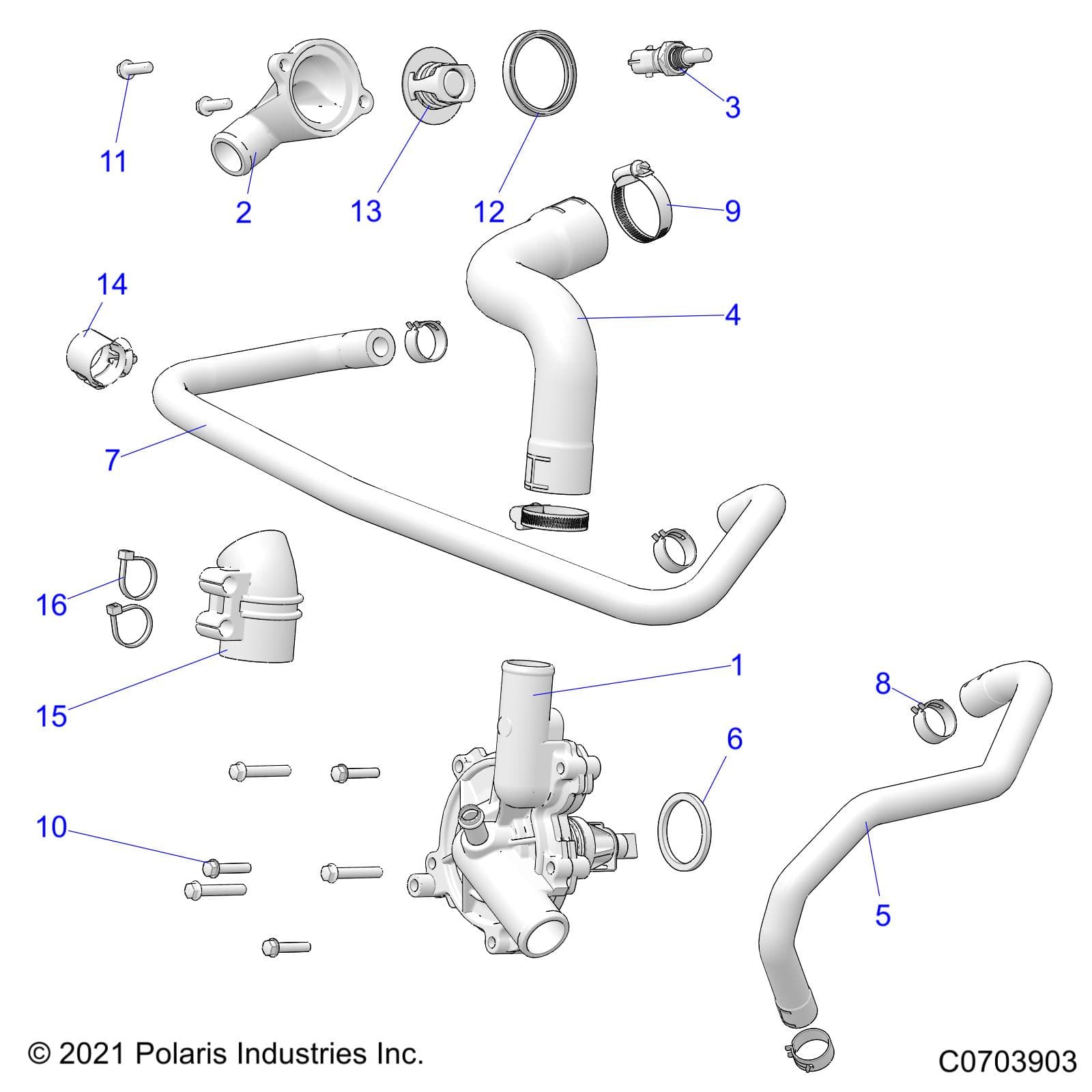

ENGINE, WATERPUMP & BYPASS - R26RST99AL (C0703903)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION Assembly ID: 247581
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023086 | ASM-WATERPUMP | 1 | $244.99 | Out of stock Est. Jul 29, 2026 | |
| 2 | 5632606 | COVER-THERMOSTAT | 1 | $54.99 | In stock | |
| 3 | 4010644 | SENSOR-THERMISTER | 1 | $94.99 | In stock | |
| 4 | 5416305 | HOSE-WATERPUMP,OUT | 1 | $79.99 | In stock | |
| 5 | 5416752 | HOSE-OIL COOLER OUT | 1 | $39.99 | In stock | |
| 6 | 5814207 | FILTER-WP [SEE WATERPUMP ASSEMBLY FOR O-RING] | 1 | $2.99 | In stock | |
| 7 | 5416630 | HOSE-BYPASS LINE | 1 | $59.99 | In stock | |
| 8 | 7081026 | CLAMP-HOSE,SPRING .81 | 4 | $9.99 | In stock | |
| 9 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | $9.99 | In stock | |
| 10 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 3 | $5.99 | In stock | |
| 11 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | $3.99 | In stock | |
| 12 | 5413948 | SEAL-THERMOSTAT | 1 | $9.99 | In stock | |
| 13 | 7052496 | THERMOSTAT-44M FLANGE,180F | 1 | $54.99 | In stock | |
| 14 | 5415088 | CLIP-HOSE | 1 | $5.99 | In stock | |
| 15 | 5417378 | SUPPORT-STATOR WIRE | 1 | $134.99 | In stock | |
| 16 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | $2.99 | In stock |
